Plastic Machinery

Home > Product > Thermoforming Machine

Automatic Plastic Cup Lid Thermoforming / Making Machine

Zhengzhou Zomagtc Company Ltd.
  • Certification：CE
  • Material：PVC,Pet,PS
  • Rushing Cut Speed：15-45 Time,Min
  • Stroke Adjustable Range：160mm
  • Max Forming Depth：45mm
  • Max Forming Area：420*160mm

Base Info

  • Model NO.：OR-420W
  • Air Pump Volume Flow：0.5-0.7MPa
  • Walter Consumption Volume：0.3 Cubic Meter,H
  • Dimension：2850*840*1700mm
  • Origin：China

Description

ModelOR-420WRushing Cut Speed

Standard 8-35tims/min

deep 8-28tims/min

Feeding route selective range

Standard 50-180mm

Custom-made 60-280mm

Max forming area

Standard 35mm

Deep 54mm

Power380V 50HZ 220V 6HZ  4.5KWAir pump volume flowmore than 0.3 cubic meter/meterAir pressure0.5-0.7MpaWalter Consumption volume0.3 cubic meter/hSize2850*840*1700mmWeight

Standard 850kg

Custom-made 1000kg

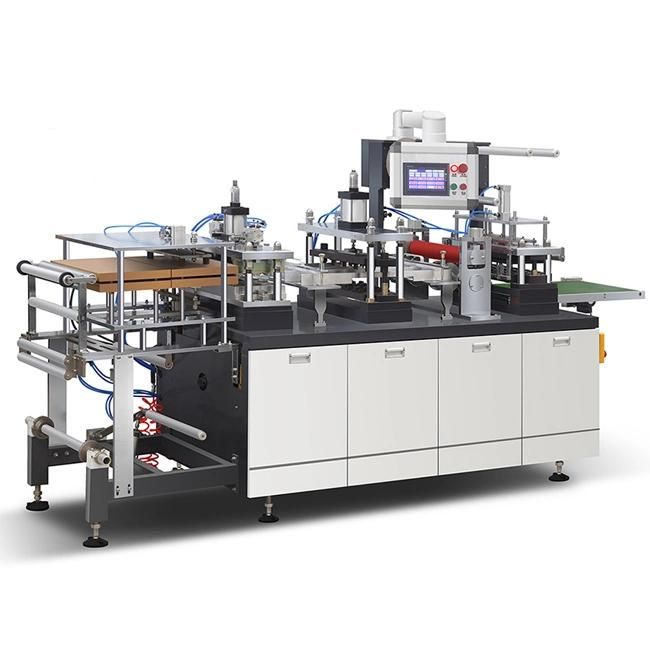

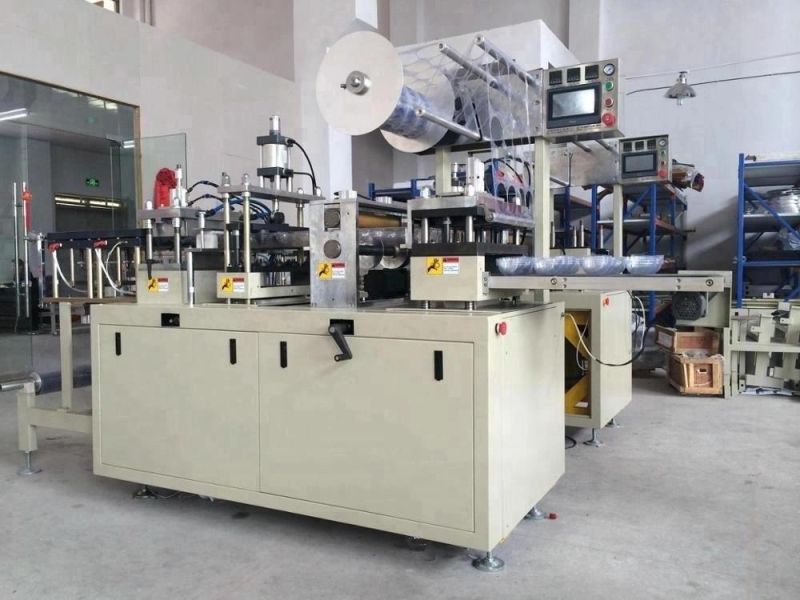

Automatic Plastic Cup Lid Thermoforming / Making MachineAutomatic Plastic Cup Lid Thermoforming / Making Machine

Features of Full-Automatic Coffee Cup Lid Forming Machine
1. The machine is designed and manufactured by the standard of "GMP" in medical industry and "QS" in food industry.
2. This machine can do forming, punching and blanking at the same time with servo motor to avoid the cross-contamination of product.
3. The forming heating plate can open and close automatically, also can delay to start, so as to control and lower the waste
of the material during the production.
4. Easy to replace the mold, application to different specifications of products.
5. Design the mold according to customer's requirements.
6. Applicable projects: the material of HIPS, PVC, PET, PS.

Automatic Plastic Cup Lid Thermoforming / Making MachineAutomatic Plastic Cup Lid Thermoforming / Making MachinePackaging & ShippingPackagingNormal standard/as your requirementShipping10-15 days after your paymentAutomatic Plastic Cup Lid Thermoforming / Making MachineOur Services

♥24 hours on-line service for you

♥Professinoal peson reply your questions

♥One year warranty for you

♥Perfect and careful after-sale service

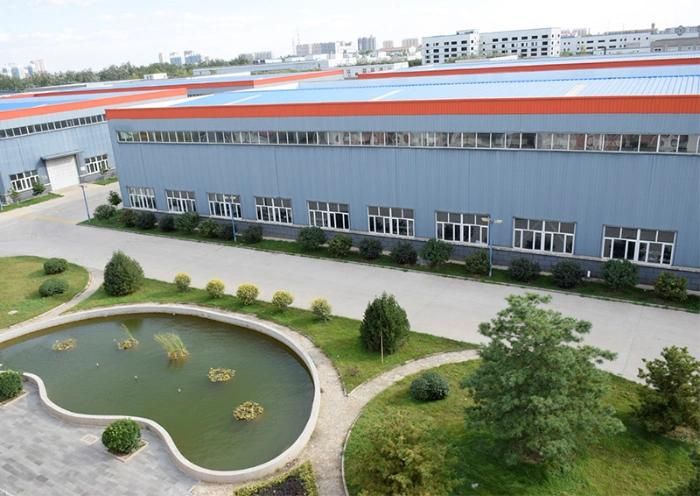

Company Information

Zhengzhou Zomagtc Company Ltd. have been designing, developing, manufacturing and marketing Machinery for more than 16 years. Firstly we mainly sever china mainland customers. In order to adapt to world market development, now we do the exporting business directly. After these years of development, we have high quality professional teams,skillful talents, strong technical force, strong and independent research anddevelopment capabilities, advanced productione quipment and a perfect after-sales service system.

Automatic Plastic Cup Lid Thermoforming / Making MachineCertificate
Automatic Plastic Cup Lid Thermoforming / Making Machine

FAQ

Q: Why don't person reply to me?

A: Our person is 24hours on-line. When nobody reply you , please leave your requirements

on e-mail or chat tool, we will reply you as soon as possible.

Q:Can you guarantee your quality?

A:Of course. We are the manufacture factory. More important, we put a high value on our

reputation. Best quality is our principle all the time. You can be assured on our production

completely.

Q:How do you make your price?

A: We make the price according to our comprehensive costing. And our price will lower

than the trade company because we are manufacture. You will get competitive price and

better quality.
