Plastic PET Fully Automatic High 200-2000ml Speed Bottle Blowing Machine
Jiangsu Faygo Union Machinery Co., Ltd.- Type：Extrusion Blow Molding Machine
- Automatic Grade：Automatic
- Warranty：1 Year
- Bottle Size：250ml--- 2L Pet Bottles
- Cavity：Eight
- Bottle Material：Pet
Base Info
- Model NO.：FG8
- Motor：Servo
- Air Pressure：30bar
- Total Power：50kw
- Working Method：Automatic
- Color：Wihte
- Weight：3500kg
- Raw Material：Pet
- Making Method of Parison：Injection Blowing
- Automation：Automatic
- Computerized：Computerized
- Certification：CE
- Transport Package：Covered by PE Film
- Specification：FG-8
- Trademark：Faygo
- Origin：Jiangsu Zhangjiagang
- HS Code：84779000
- Production Capacity：12000-13000bph
Description
Note: All the electrical components adopts CE,UL,CCC approved international
advanced high-tech product
3. Advantage of FG-8 PET bottle blowing machine
a. Servo driving and cam linking blowing section:
The unique cam linking system integrates movement of mold-opening, mold-locking and bottom mold-elevating in one movement. Equipped with high speed servo driving system which greatly shorten the cycle of blowing and increase the capacity. The complete movements of PET blowing only takes 2 seconds.
b. Small performs distance heating system
Heater distance in the heating oven is reduced to 38mm, compared with the conventional heating oven it saves more than 30% electricity consumption. Equipped with the air cycling system and redundant heat discharge system, it ensures the constant temperature of the heating zone.
c. Efficient and soft perform inlet system
By rotary and soft preform inlet system, the speed of prefom feeding is ensured meanwhile, the preform neck is well protected.
d. Modularized design conception
Adopting modularized design concept, to make it convenient and cost-saving for the maintenance and changing spare parts.
4. Other related equipment for FG-8 PET blowing machine:
5. Packaging & Shipping
Wooden box with film wraping
6. Our Services
1> The machine will be tested and checked at our workshop before delivery.
2>After one year, we will supply accessories are provided only one the cost price.
3> Free Spare Parts : Digital instrument, Sealing, Stretching cylinder seal ring, Mould-adjustment wrench, Furnace temperature table, Furnace heating tube and other relative vulnerable part.
4>Free production technology and process configuration.
5> We can help you to design the product line, workshop and provide turn-key project.
6>Installation: Experts' team to buyer's country after confirmation that the goods arrived in site and civil works completed get ready for installation. Funds for trip need to be payed by client and extra salary $100/day during the engineer's journey.
7>Warranty: One year from the date of Installation or acceptance of the Plant whichever comes first
7. Company Information

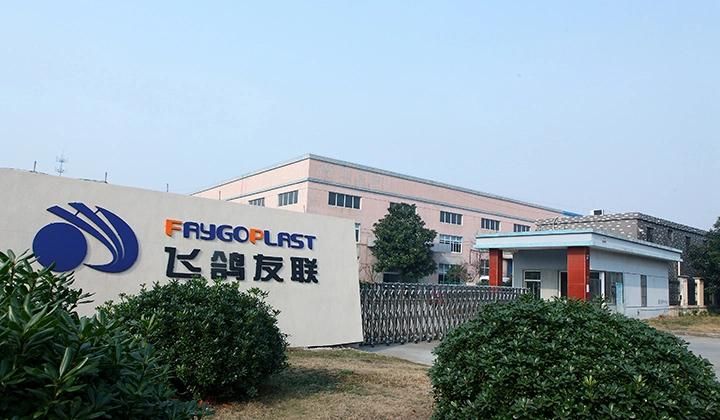

Jaingsu Faygo Union Machinery is a professional manufacturer of plastic machines. It occupied an area of 18000 square meters. With years of development, its products covers plastic extrusion lines, plastic blowing machine, plastic recycling machine, air compressor etc.
Stick to the company idea is making good machine, being good person, Faygo Plast alwasy provide customers with high quality machines. Welcome to visit our company, and make win-win cooperation in the future.
Automatic Pet Stretch Blow Moulding Machines
8. FAQ
Q: Your company is a transactional company or an industrial manufacture factory?
A: We are an industrial manufacture factory which locates in Zhangjiagang city.
Q:All of your products are made by your self or compacted via purchasing the others?
A: We have independent technical team who focus on making machines, all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per month.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
advanced high-tech product
3. Advantage of FG-8 PET bottle blowing machine
a. Servo driving and cam linking blowing section:
The unique cam linking system integrates movement of mold-opening, mold-locking and bottom mold-elevating in one movement. Equipped with high speed servo driving system which greatly shorten the cycle of blowing and increase the capacity. The complete movements of PET blowing only takes 2 seconds.
b. Small performs distance heating system
Heater distance in the heating oven is reduced to 38mm, compared with the conventional heating oven it saves more than 30% electricity consumption. Equipped with the air cycling system and redundant heat discharge system, it ensures the constant temperature of the heating zone.
c. Efficient and soft perform inlet system
By rotary and soft preform inlet system, the speed of prefom feeding is ensured meanwhile, the preform neck is well protected.
d. Modularized design conception
Adopting modularized design concept, to make it convenient and cost-saving for the maintenance and changing spare parts.
4. Other related equipment for FG-8 PET blowing machine:
| Air Compressor | WH-2.0/30 | 3sets |
| Air Dryer | 6.0m3/min 30Kg | 1set |
| 3 Stage Air Filter | 6.0m3/min 30Kg | 3sets |
| Oil separator | sorted | 1set |
| Air Tank | 2 m3 | 1set |
| Mold Chiller | 6HP | 1set |
| Oven Chiller | 3HP | 1set |
| 1L Blowing Mold | 1000ml | 1set |
5. Packaging & Shipping
Wooden box with film wraping
6. Our Services
1> The machine will be tested and checked at our workshop before delivery.
2>After one year, we will supply accessories are provided only one the cost price.
3> Free Spare Parts : Digital instrument, Sealing, Stretching cylinder seal ring, Mould-adjustment wrench, Furnace temperature table, Furnace heating tube and other relative vulnerable part.
4>Free production technology and process configuration.
5> We can help you to design the product line, workshop and provide turn-key project.
6>Installation: Experts' team to buyer's country after confirmation that the goods arrived in site and civil works completed get ready for installation. Funds for trip need to be payed by client and extra salary $100/day during the engineer's journey.
7>Warranty: One year from the date of Installation or acceptance of the Plant whichever comes first
7. Company Information
Jaingsu Faygo Union Machinery is a professional manufacturer of plastic machines. It occupied an area of 18000 square meters. With years of development, its products covers plastic extrusion lines, plastic blowing machine, plastic recycling machine, air compressor etc.
Stick to the company idea is making good machine, being good person, Faygo Plast alwasy provide customers with high quality machines. Welcome to visit our company, and make win-win cooperation in the future.
Automatic Pet Stretch Blow Moulding Machines
8. FAQ
Q: Your company is a transactional company or an industrial manufacture factory?
A: We are an industrial manufacture factory which locates in Zhangjiagang city.
Q:All of your products are made by your self or compacted via purchasing the others?
A: We have independent technical team who focus on making machines, all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per month.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
