• Model NO.：xjg
• Transport Package：Wooden
• Specification：ISO,CE
• Trademark：XJG
• Origin：China
• HS Code：8477800000
• Production Capacity：Uncertain

Basic Info.

Model NO. xjg Transport Package Wooden Specification ISO/CE Trademark XJG Origin China HS Code 8477800000 Production Capacity Uncertain

Product Description

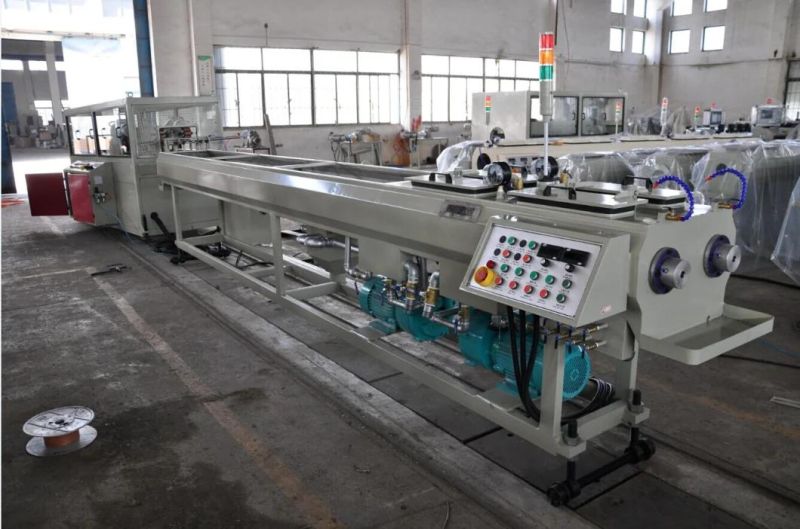

PVC double pipe production line is developed for high output of double pipe extrusion.

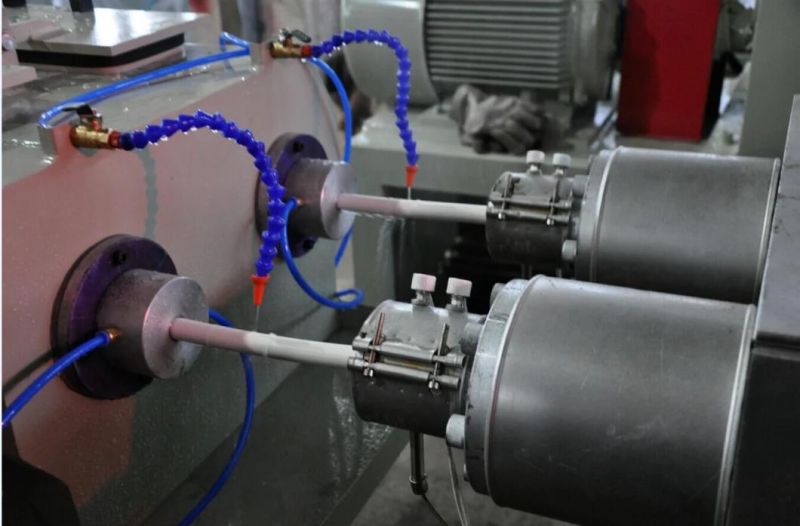

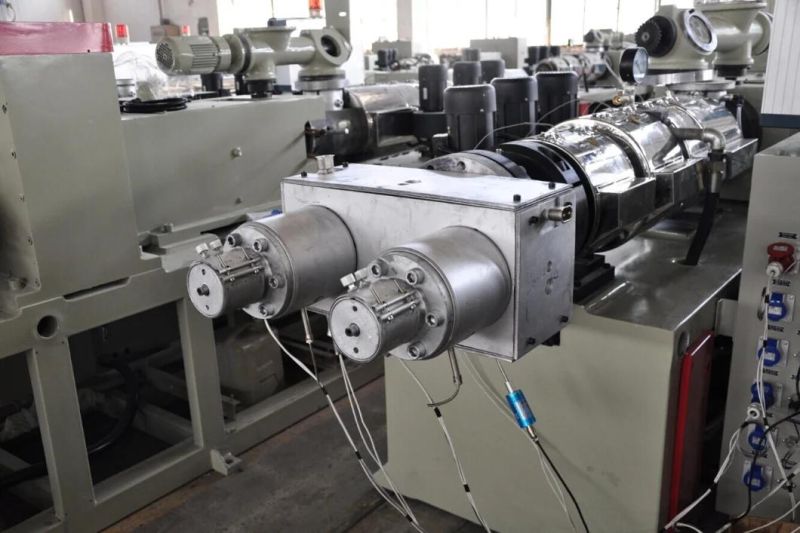

The main machine is SJSZ51/105 or SJSZ65/132 conical double screw extruder, which is equipped with double-tube single-control

stainless steel spraying shaper to form a production line. It avoids a waste condition when one tube is adjusted and the other one is affected.

The auto single-control double drawing machine and cutting are combined with the front shaping technology to make operation more flexible.

Let you enjoy economic benefit which is brought about by separately control double-tube extruding.

 The diameter of the extruded pipe is from 20-63mm. It can fully use the extruding capacity of the extruder. Even if it producces small diameter pipe,

it can get great output too.

So, it is your best choise for high output and effecient for PVC double pipe extrusion/ production line

Diameter   scope      (mm)	16-40 Dual	20-63 Dual	20-63	50-160	63-200	160-315	315-630	560-800
Conical extruder	SJZ51/105	SJZ65/132	SJZ51/105	SJZ65/132	SJZ65/132	SJZ80/156	SJZ92/188	SJZ105/216
Extruder Power(KW)	18.5 AC	37 AC	18.5 AC	37 AC	37 AC	55 AC	110 DC	160 DC
Max. capacity (KG)	120	250	120	250	250	350	800	1100
Max. Lineal speed (m/min..)	10	15	15	8	3.5	3	1.2	1.3
