Commercial Non-Slip Rvp Spc PVC Vinyl Flooring Building Extruder Machine
Wuxi Boyu Plastic Machinery Co., Ltd.- Type：Sheet Extruder
- Plastic Processed：PVC
- Product Type：Extrusion Molding Machine
- Feeding Mode：One Feed
- Assembly Structure：Separate Type Extruder
- Screw：Twin-Screw
Base Info
- Model NO.：SZJP160
- Engagement System：Full Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Exhaust
- Automation：Automatic
- Computerized：Computerized
- High Tech：PLC Control System
- Transport Package：PVC Film
- Specification：50m
- Trademark：BOYU
- Origin：China
- HS Code：8477209000
- Production Capacity：20 Lines,Month
Description
Basic Info.
Model NO. SZJP160 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized High Tech PLC Control System Transport Package PVC Film Specification 50m Trademark BOYU Origin China HS Code 8477209000 Production Capacity 20 Lines/MonthProduct Description
1.Design parameters| No. | Items | Data |
| 01 | Operation Conditions | 380V/3 phases/50Hz, DC24V. |
| 02 | Raw Material | PVC powder, calcium carbonate, stabilizer, lubricant, small materials |
| 03 | Main material proportion | PVC: CACO3= 1:3 |
| 04 | Product specifications | Width:1050/1350mm, Thickness:1-9mm |
| 05 | Machine Fabrication Certificate | CE |
| 06 | Electric components certificate | CE |
2.Equipment List
Extruder → T-die → Calender → Oil temperature controller → Traction machine → Cutting machine → Automatic flipper & Stacker

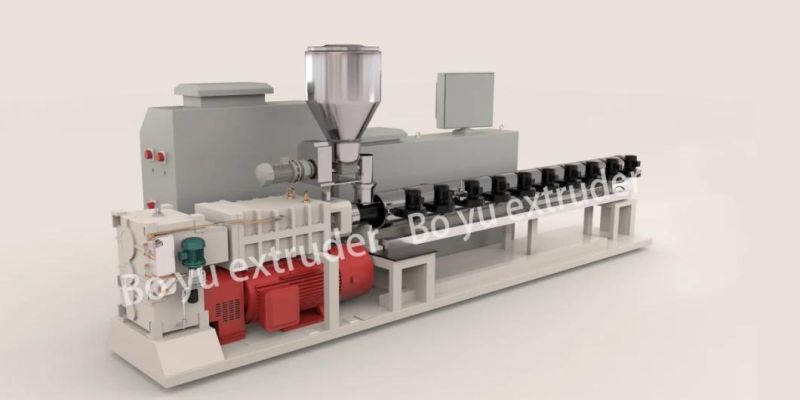

3.Extruder model
| Extruder model | Capacity/24h | Capacity/h | 4mm Linear Speed |
| SZJP-115 | 20-30T | 800-1250KG | 1.5-2.5m/min |
| SZJP-138 | 30-35T | 1250-1450KG | 1.5-3.0m/min |
| SZJP-160 | 50-70T | 2000-3000KG | 4.0-6.0m/min |

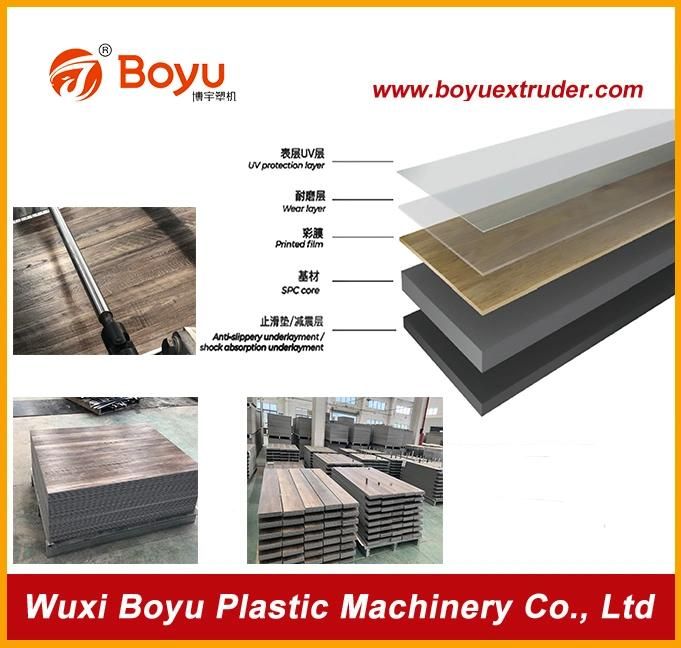

4.Finished board
5.EIR Patent
6.Boyu Development
7.Our Services:

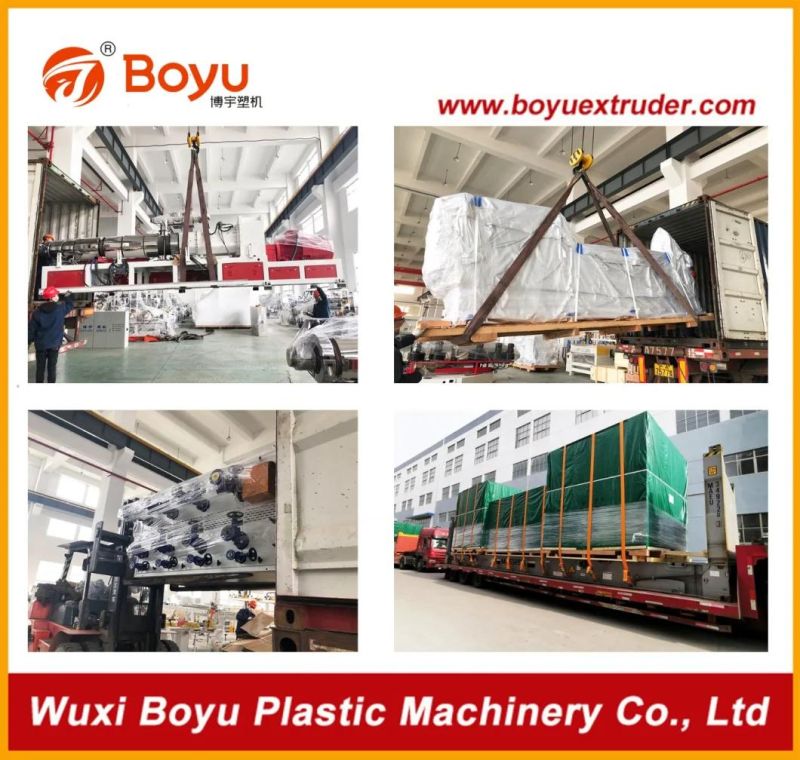

8.Shipping
