• Model NO.：JY-200ST
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Transport Package：Wooden Case
• Specification：1.4*0.90*2.37m
• Trademark：JieYang
• Origin：China
• HS Code：8477209000
• Production Capacity：200 Sets,Month

JY-200STScrew Barrel Diametermm2628Injection Pressurekg/cm21019896Max. Shot Weightgram5867Max. Shot Weightcm3/sec6776.7Screw Barrel Routemm105Screw Barrel Rotary Speedrpm0-200Nozzle Contact Forcetons4.45Nozzle Retraction Nozzlemm130Number of Temperature Controlpcs2Clamping Forcetons25Platen Sizemm480*310Distance Between Tie Beremm310*170Min. Mold Heightmm100/60Opening Strokemm180Max. Opening Mold Distancemm280/80Ejetor Forcetons1.3Ejetor Stokemm35Max. Hydraulic Pressurekg/cm2140Pump OutputL/min29.5Oil Resservoir CapacityLiter100Cooling Water ConsumptionL/hr400-600Pump Motor Powerkw/hp 3.75HPBarrel Heating Powerkw1.8Total Powerkw5.5Machine Weighttons0.68Machine Dimension(LxWxH)meter1.4*0.90*2.37Shipping Weighttons0.88Shipping Measurements(LxWxH)meter1.49*1.08*2.25

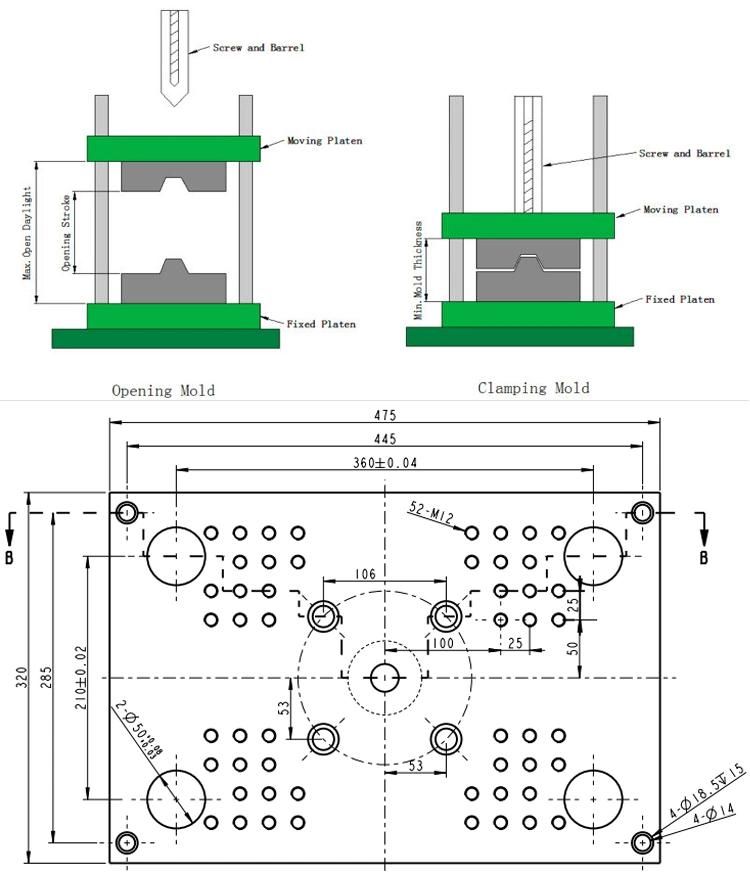

Product Drawing

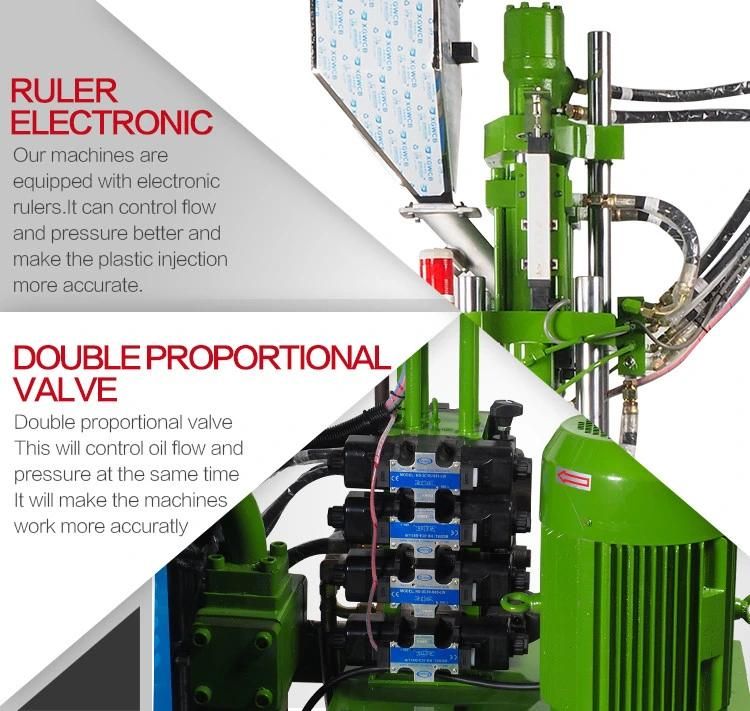

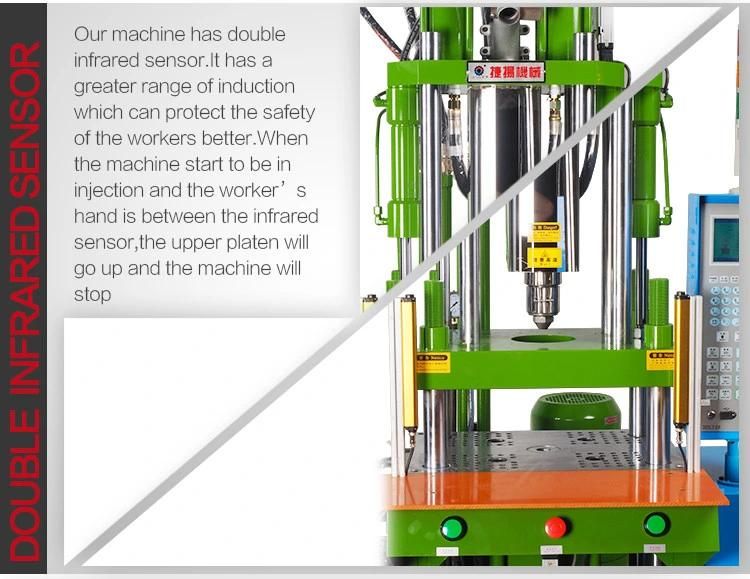

Product Features

1)Straight screw ejected assembly.
2)Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.
3)Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
4)Low-pressure closed die assembly can protect the safety of die.
5)Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.
6)Can be installed a single mold or double shuttle table.

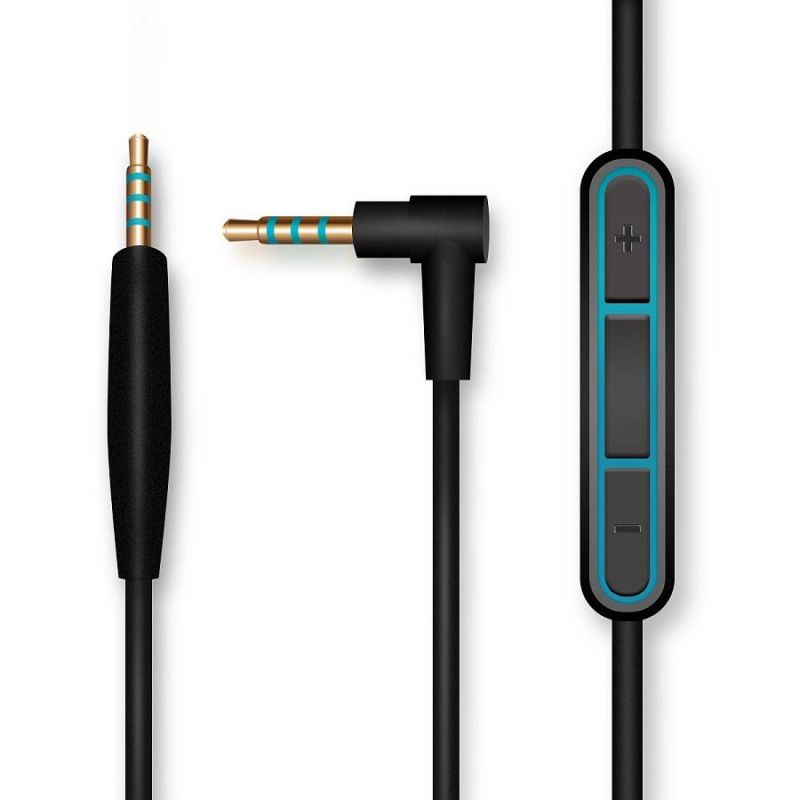

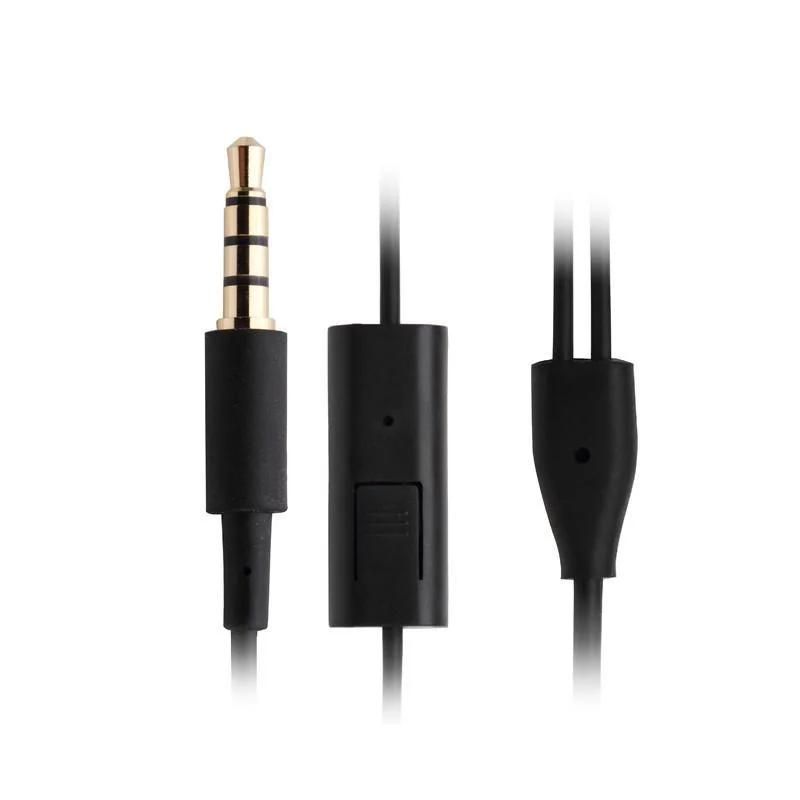

Application








Advantage

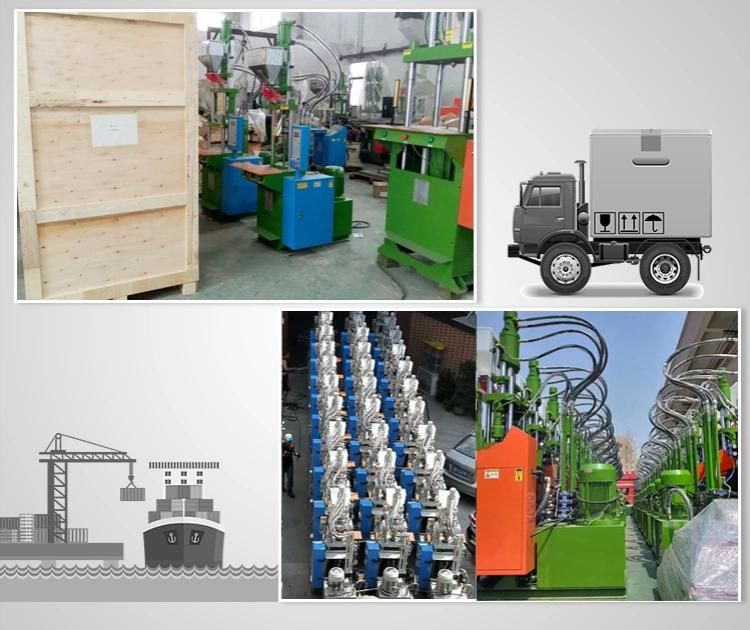

Packaging&Shipping

Package

1.The standard package is wooden box without fumigation.
2. We can also pack it according to customers special request.

Delivery Time

3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity

Certification



Our Service:

1. 24 hours online and telephone support; Nomatter anytime, anywhere or any question I will reply you as soon as possible.

2. Exclusive and unique solution can be provided to our customers by well-trained and professional engineers and staffs.

3. Engineers and professional technicians keep seeking the new ways to innovate all of our wheel loaders, which could provide you the most competitive products.

4. Global cooperation with distributors, you can get the most convinent after-sale service. Special discount and protection of sales area provided to your distributor.

5. Your success is our business. We will do our best to provide you the most competitive product with high quality and low price.



Please contact us,we will provide a professional production plan for you.
