Barrel in Plastic Extruder Spare Part
Nanjing Tengda Machinery Co., Ltd.- Standard：Ce&ISO
- Technics：Plastic Granules
- Material：Stainless Steel
- Item Name：Barrel in Plastic Extruder Spare Part
- Application：Co-Rotating Twin-Screw Extruder
- Screw Type：Parallel Screw
Base Info
- Model NO.：TD-65
- Color：Plain Color of Stee
- Barrel：Long-Term Available
- Barrel Structure：Modular Barrel Structure
- Screw Design：Double-Screw
- Treatment：Heating Treatment
- Product Type：Extrusion
- Plpastic Processed：PP PE HDPE Lhdpe Ect
- Transport Package：Neutral Packing
- Specification：W6Mo5Cr4V2 or38CrMoAl
- Trademark：TENDA
- Origin：Jiangsu, China
- Production Capacity：1000 Set,Sets Per Month
Description
Standard Barrel Parameter Table (selection table)Model Size(mm)
W*H*L Hole Diameter(mm) r Distance(mm) TD-20 115*105*132 Φ23 18.4 TD-30 135*115*120 Φ30.6 26 TD-35 140*120*140 Φ36 30 TD-36 160*140*150 Φ36 30 TD-40 175*145*160 Φ41.6 34.5 TD-50 190*150*190 Φ51 42 TD-52 200*155*210 Φ52 43 TD-53 210*160*220 Φ53.3 48 TD-58 220*175*240 Φ58 48 TD-60 210*170*240 Φ60 52 TD-65 210*170*240 Φ63 52 TD-75 260*200*290 Φ71.8 60 TD-85 280*215*320 Φ81.9 67.8 TD-92 310*240*360 Φ92 78 TD-95 310*240*360 Φ94 78 TD-110 330*240*420 Φ109 91.5 TD-125 390*290*500 Φ125 98 TD-135 370*300*410 Φ134 110

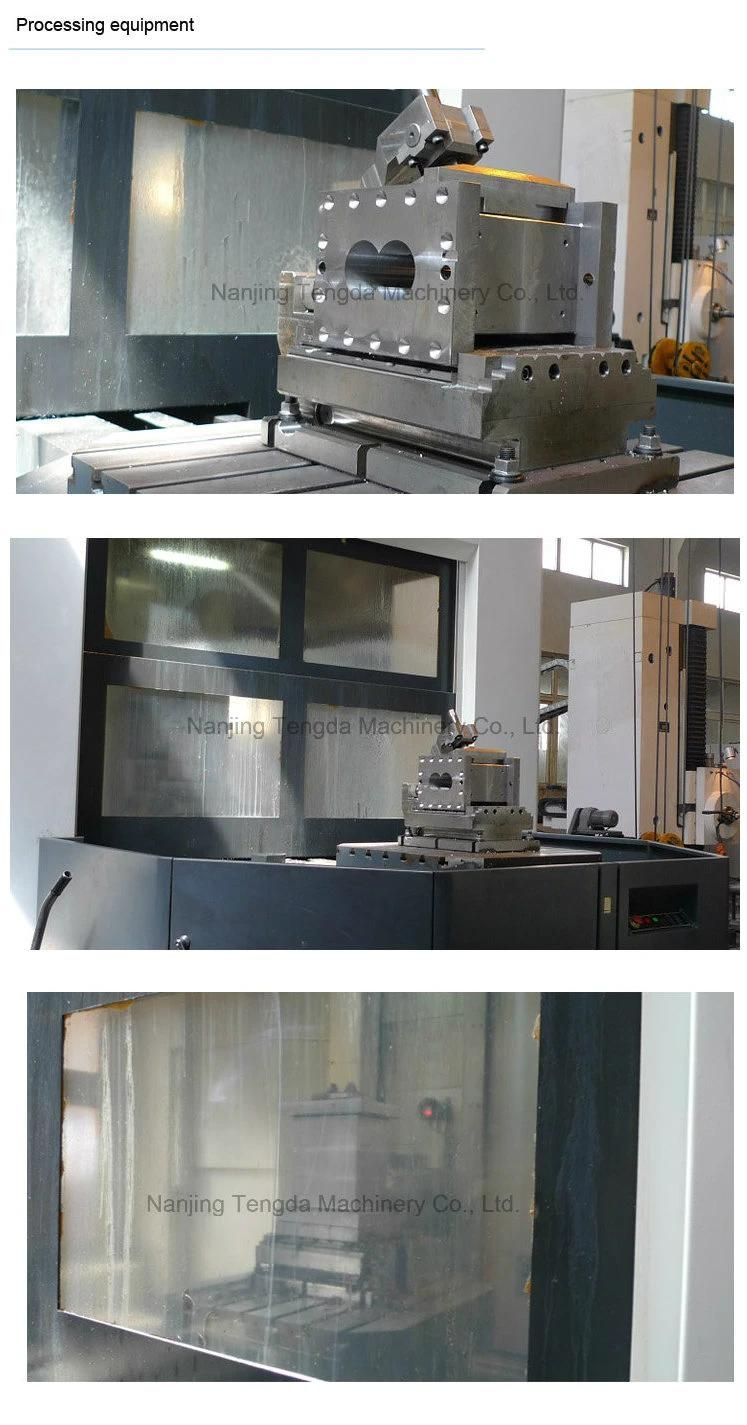

Description: Using machining center finishing, reasonable processing technology, advanced testing equipment, to ensure that the processing accuracy of each product.
The flexible modular principle is realized with screw barrel sections from the wide Range ofdifferent designs possible. Fast, intensive and uniform heating ofthe screw Barrel section is ensured by electrical heaters. The barrel sections are cooled with Water, by means ofan internal bore system, with bores arranged close to the inside Barrel wall.

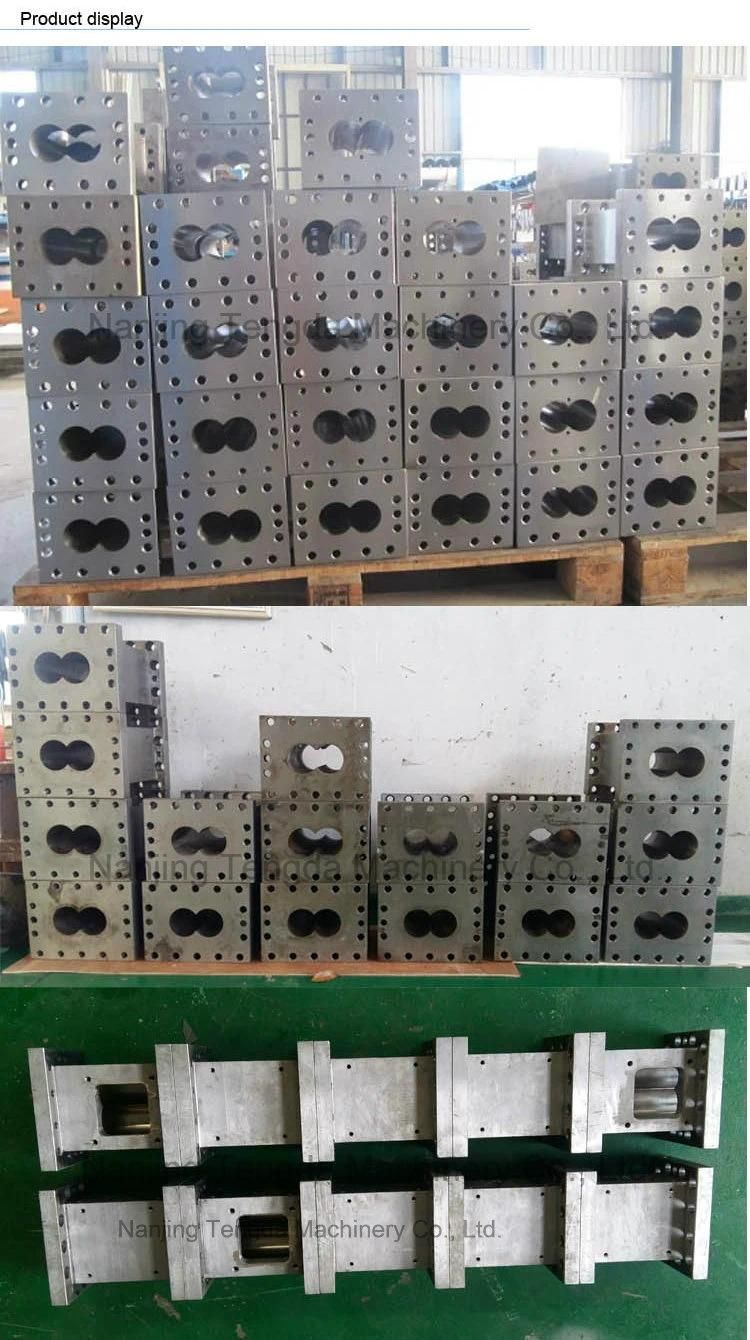

Barrel Type-by appearance
1.Close tube
2.open tube
3.side-feeding closed barrel
4.Side-feeding open barrel
5.Extruding barrel
6.Liquid filling cylinder
Barrel Type -liner
1.Type"C"barrel
2.Overall liner barrel
3.Bareel without liner
4.Prouduct specifications
Barrel Type -materials
1.Nitriding Steel Barrel
2.Binetal Alloy Barrel
3.316L Stainless Steel Barrel
Packaging for exports:
Package: Wooden case or Using Anti-rust oil processing, then use stretch film cover extruder against moisture damage.
Shipping: By sea or By express
Contact us
FAQ
W*H*L
Description: Using machining center finishing, reasonable processing technology, advanced testing equipment, to ensure that the processing accuracy of each product.
The flexible modular principle is realized with screw barrel sections from the wide Range ofdifferent designs possible. Fast, intensive and uniform heating ofthe screw Barrel section is ensured by electrical heaters. The barrel sections are cooled with Water, by means ofan internal bore system, with bores arranged close to the inside Barrel wall.
Barrel Type-by appearance
1.Close tube
2.open tube
3.side-feeding closed barrel
4.Side-feeding open barrel
5.Extruding barrel
6.Liquid filling cylinder
Barrel Type -liner
1.Type"C"barrel
2.Overall liner barrel
3.Bareel without liner
4.Prouduct specifications
Barrel Type -materials
1.Nitriding Steel Barrel
2.Binetal Alloy Barrel
3.316L Stainless Steel Barrel
Packaging for exports:
Package: Wooden case or Using Anti-rust oil processing, then use stretch film cover extruder against moisture damage.
Shipping: By sea or By express
Contact us
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.We have the technical production team,and the workers are all very experienced.
Q: Why choose you?
A:You can get a very fair price from us and our price can make you beat your competitors in the marke
Q: What kind of certification do you have?
A: Our products have obtained ISO9001 and CE certification,the quality can be guaranteed.We focus on the field of extrusion machine,and aim to be the best manufacturer of this field.
Q:What's the payment?
A:L/C, T/T, Western Union, Paypal, Money Gram.
