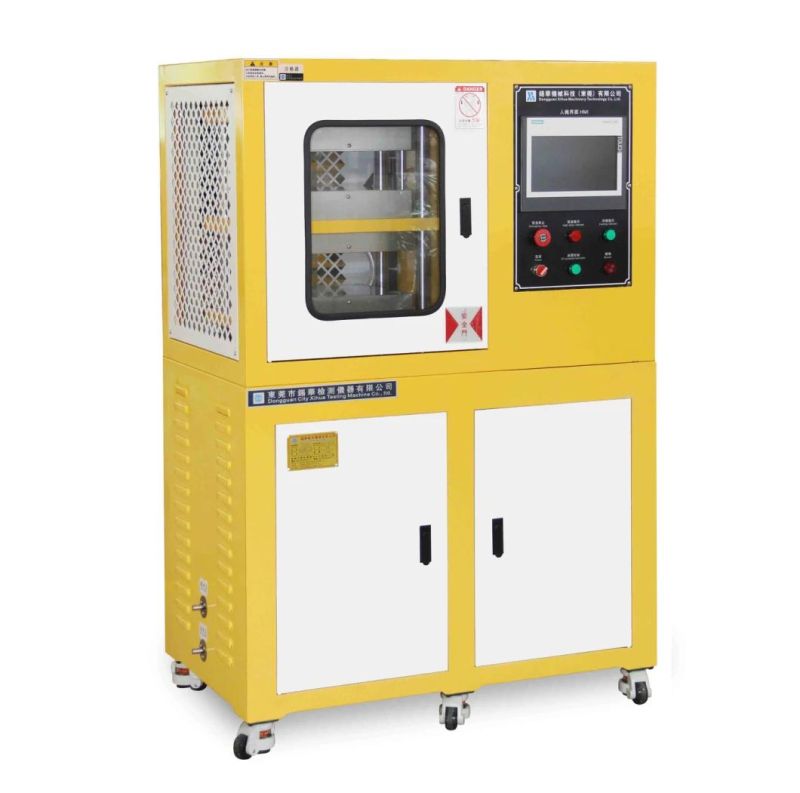

Laboratory Plastic Vulcanizing Mould Press for Rubber and Plastic Testing
Dongguan Xihua Machinery Technology Co., Ltd.- After-sales Service：a Lifetime of Service
- Warranty：a Lifetime of Service
- Certification：CE, ISO
- Column number：Four Column
- Molding Method：Pressing
- Automatic Grade：Automatic
Base Info
- Model NO.：XH-406B
- Capacity Selection：30 Ton or Customize
- Temperature Control：Normal Temperature~300ºC
- Precision of The Control Temp：+ -2ºC
- Heating Mode：Electrical Heating
- Timepiece：LED 0~99(Min)
- Area of Electric Board：300*300mm Designated
- Area of Cooling Plate：300*300mm Designated
- Plate Spacing：0~70mm Designated
- Weight：About 750kg
- Transport Package：Wooden Case
- Specification：1000*600*1500mm
- Trademark：Xihua
- Origin：China
Description
Small Hydraulic Press Machine Features
(1) XH-406BE-30 tablet press machine is applicable to R & D in laboratory because of its compact size, complete functions, stable temperature, low noise, easy operation and material saving.
(2) High-precision temperature sensor, together LED temperature controller, built-in dense-point heating wire and tubular condenser, has the temperature range from normal temperature to 300ºC.
(3) Imported KDB electric board features high-temperature resistance, abrasion resistance, fast thermal transmission and strenghthen against deformation.
(4) Single heating can be designed according to the requirements.
(5) Oil hydraulic system: the pressure range: 30 ton, the maximum stroke of the cylinder: 180mm.

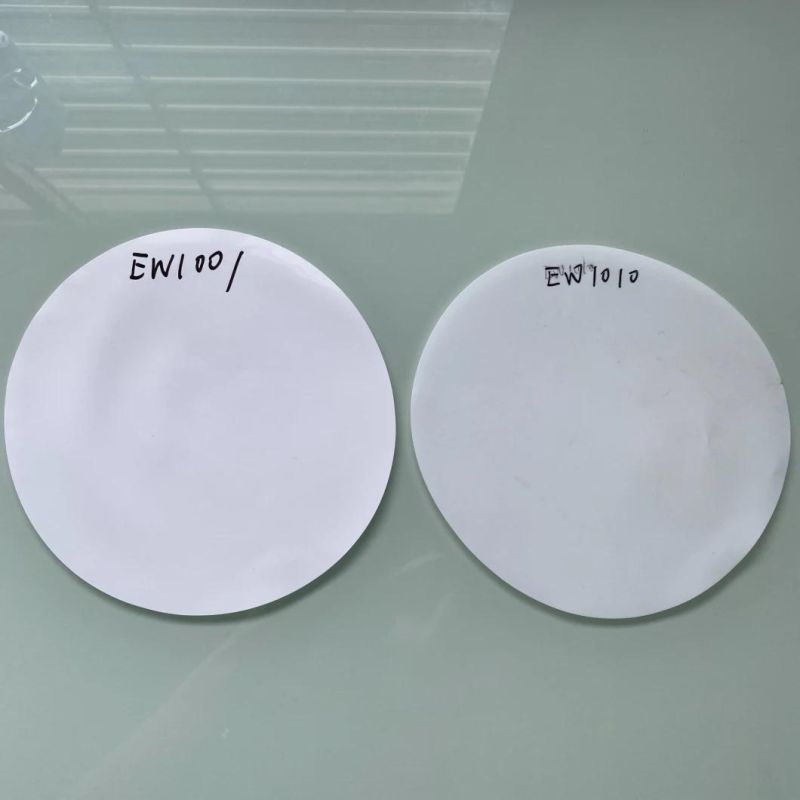

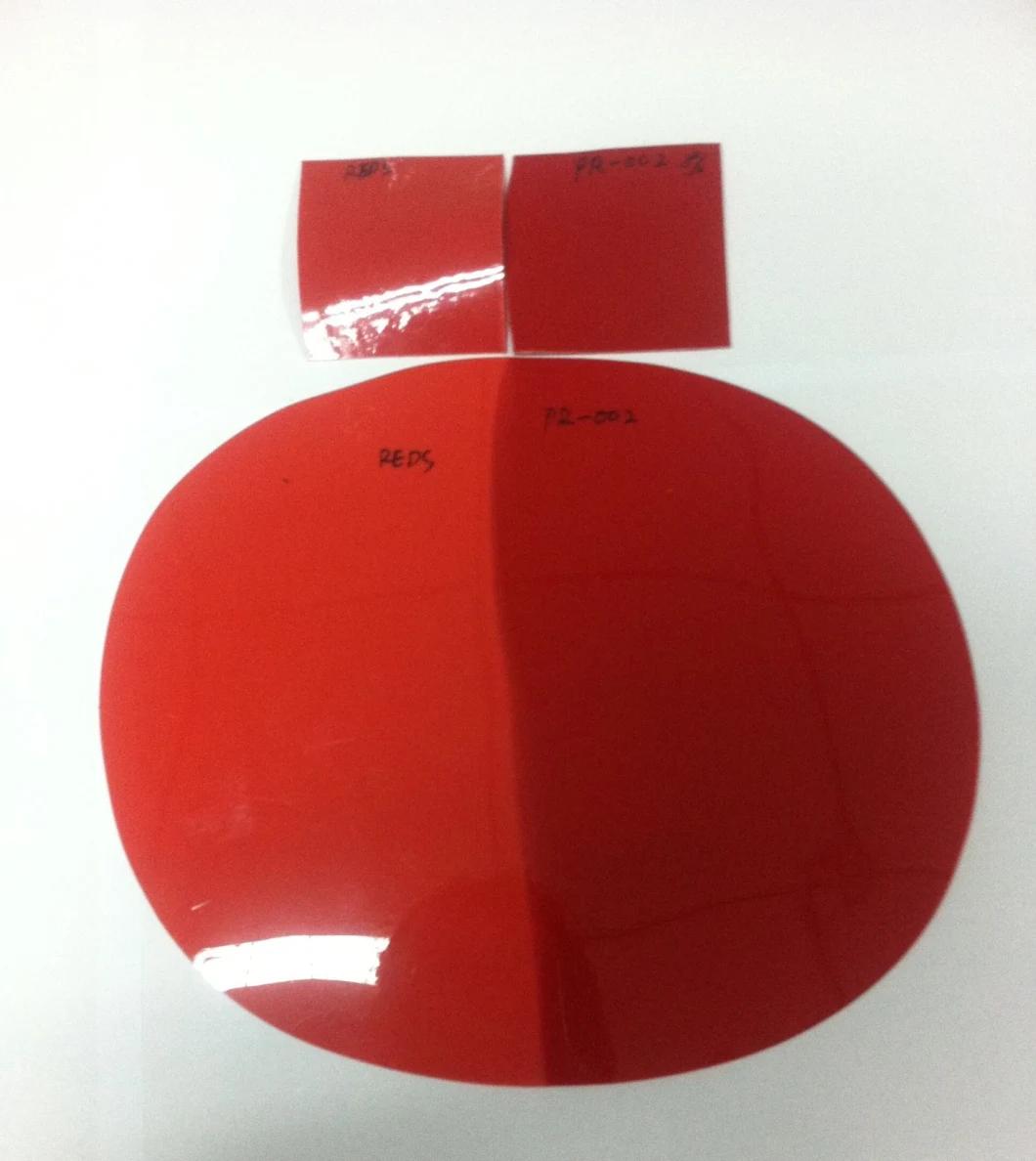

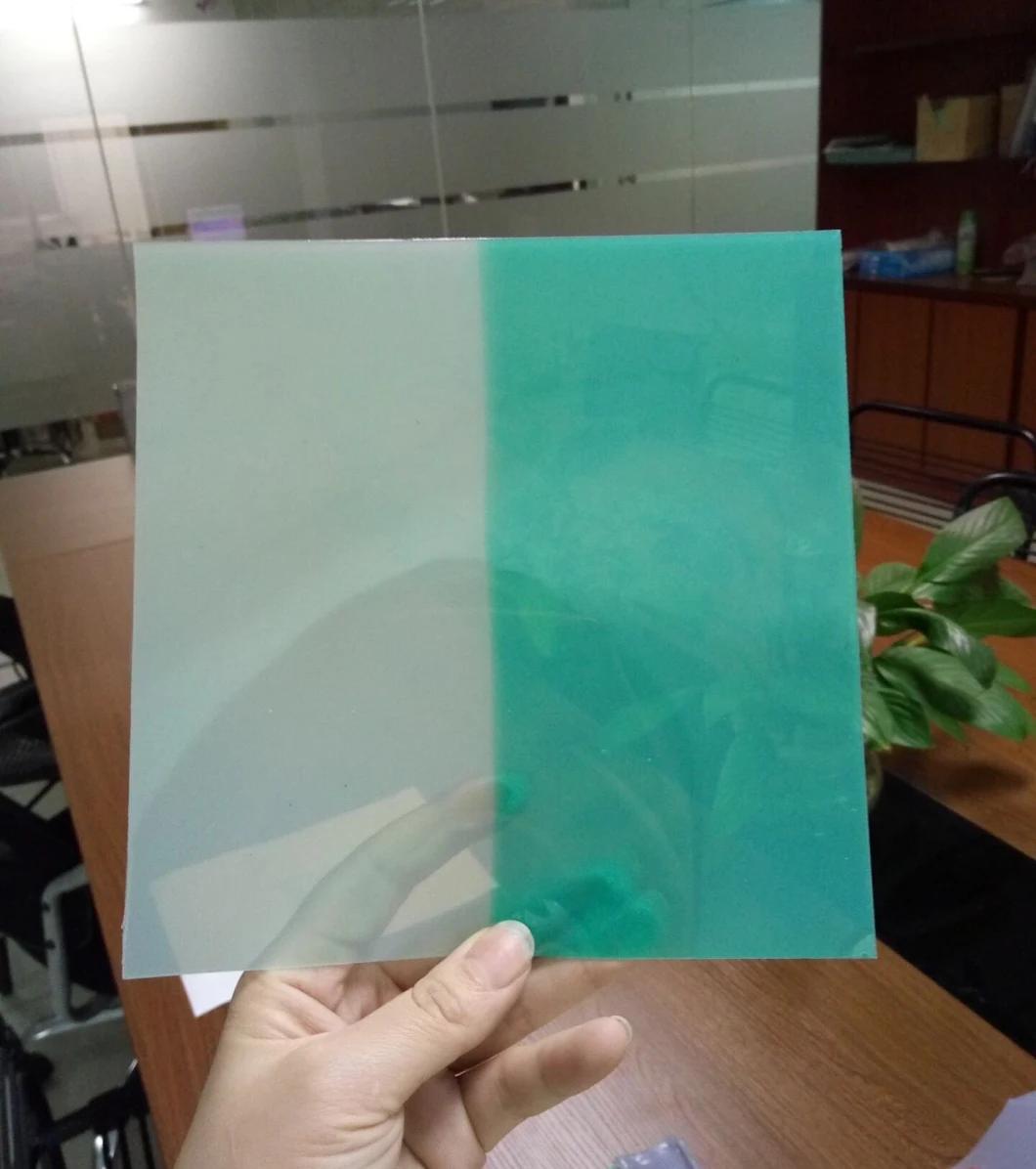

Testing sample
Details images
