• Model NO.：SJ-A50
• Machine Weight：1.5t
• Certification：CE
• Size：600mm
• Sicrew：50mm
• Motor：11kw
• Material：HDPE or LDPE
• Transport Package：Wooden Case, Wooden Block, in Nude
• Specification：600mm
• Trademark：Fangtai
• Origin：Ruian, China
• HS Code：84778000
• Production Capacity：2sets,Month

Basic Info.

Model NO. SJ-A50 Machine Weight 1.5t Certification CE Size 600mm Sicrew 50mm Motor 11kw Material HDPE or LDPE Transport Package Wooden Case, Wooden Block, in Nude Specification 600mm Trademark Fangtai Origin Ruian, China HS Code 84778000 Production Capacity 2sets/Month

Product Description

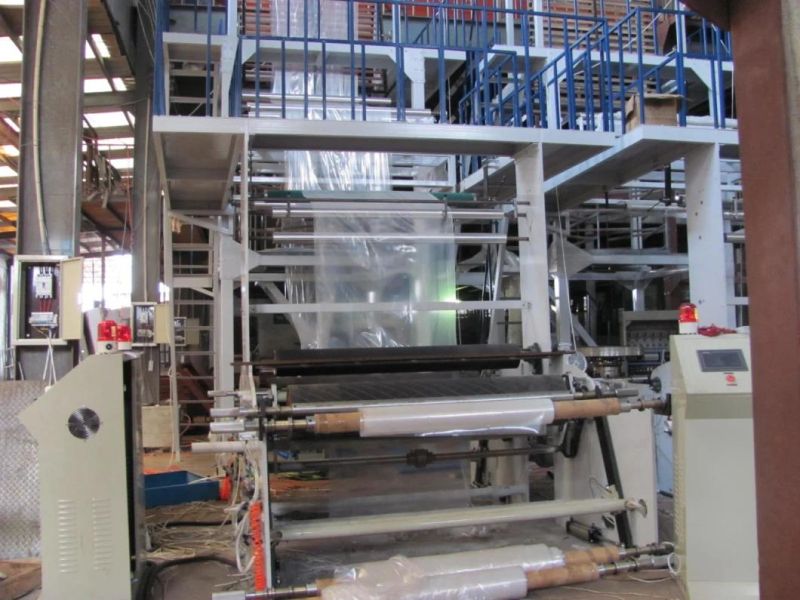

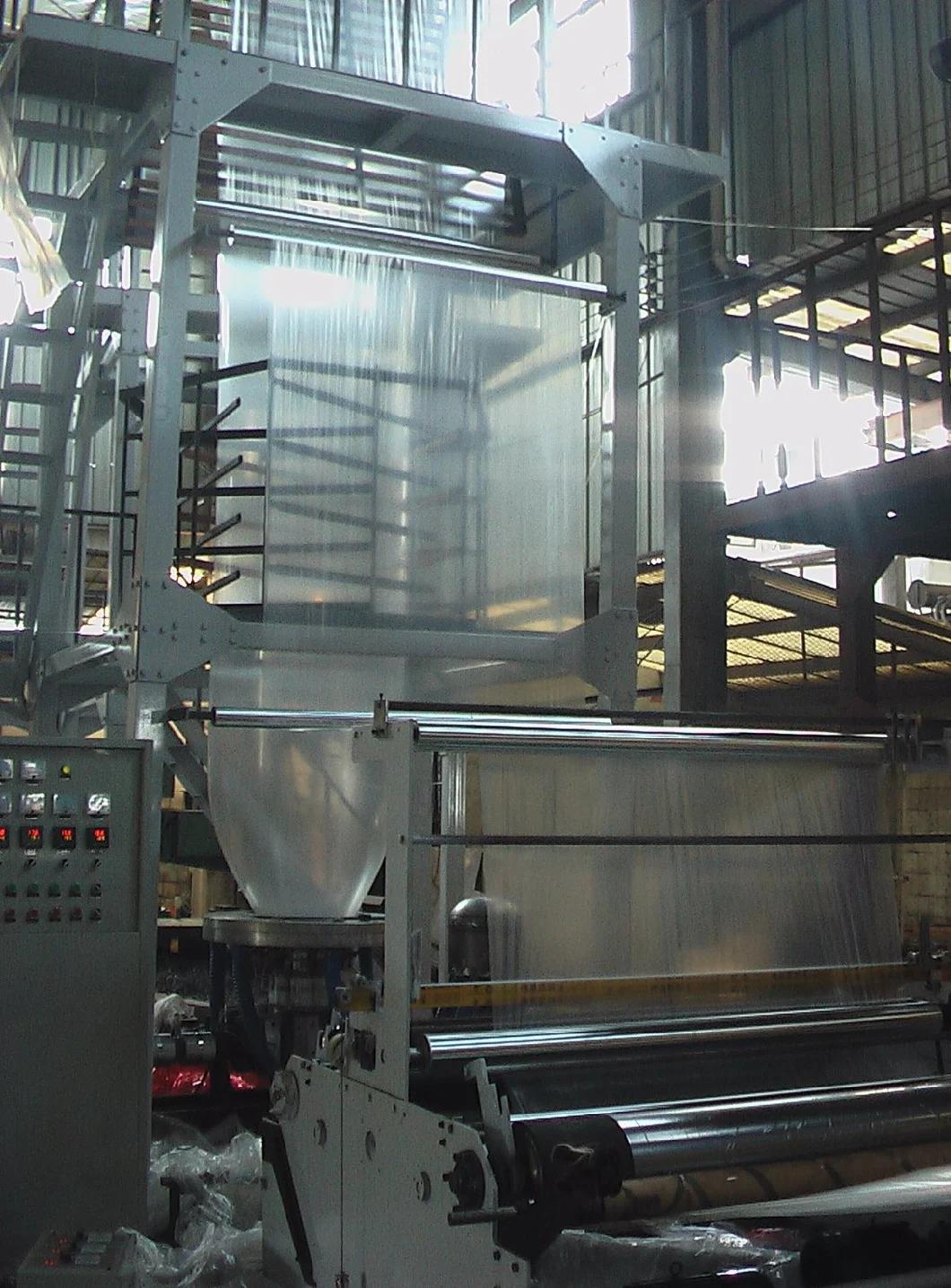

SJ-A50/55/65/65-1 PE High & low-pressure Film Blowing Machine

Use:
Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.

OPTIONAL EQUIPMENT:
1) AUTO LOADER
2) AIR SHAFT
3) ROTARY DIE DEVICE
4) DOUBLE SIDES WINDER
5) UP AND DOWN
6)PNEUMATIC DEVICE
7)AIR COMPRESSOR


Main Technical Variables:

Model	A50	A55	A65	A65-1
Diameter of screw	Φ50	Φ55	Φ60	Φ65
Reduced diameter of film(mm)	100-600	200-800	300-1000	400-1200
Single-face thickness of film(mm)	0.01-0.10	0.01-0.10	0.01-0.10	0.01-0.10
Max. Extrusion(kg/h)	35	50	65	80
L/D	28:1	28:1	28:1	28:1
Power of main motor(kw)	7.5-11	11-15	18.5-22	22
Power of Traction motor(kw)	1.1	1.1	1.5	1.5
Heating Power(kw)	11	13	19	21
Outline diameter(L*W*H)(mm)	4800*1900*3500	5500*2100*3800	6500*2300*4200	6500*2500*6000
Weight(T)	1.5T	2T	2.3T	2.6T
