• Model NO.：Screw Component
• Application：Granules
• Delivery：in 30 Days After The Contract Takes Effect
• Voltage：According to Customers′ Requirement
• Transport Package：Neutral Packing
• Specification：W6Mo5Cr4V2 or38CrMoAl
• Trademark：TENDA
• Origin：Nanjing, Jiangsu
• Production Capacity：3000 Meters,Month

Basic Info.

Model NO. Screw Component Application Granules Delivery in 30 Days After The Contract Takes Effect Voltage According to Customers′ Requirement Transport Package Neutral Packing Specification W6Mo5Cr4V2 or38CrMoAl Trademark TENDA Origin Nanjing, Jiangsu Production Capacity 3000 Meters/Month

Product Description

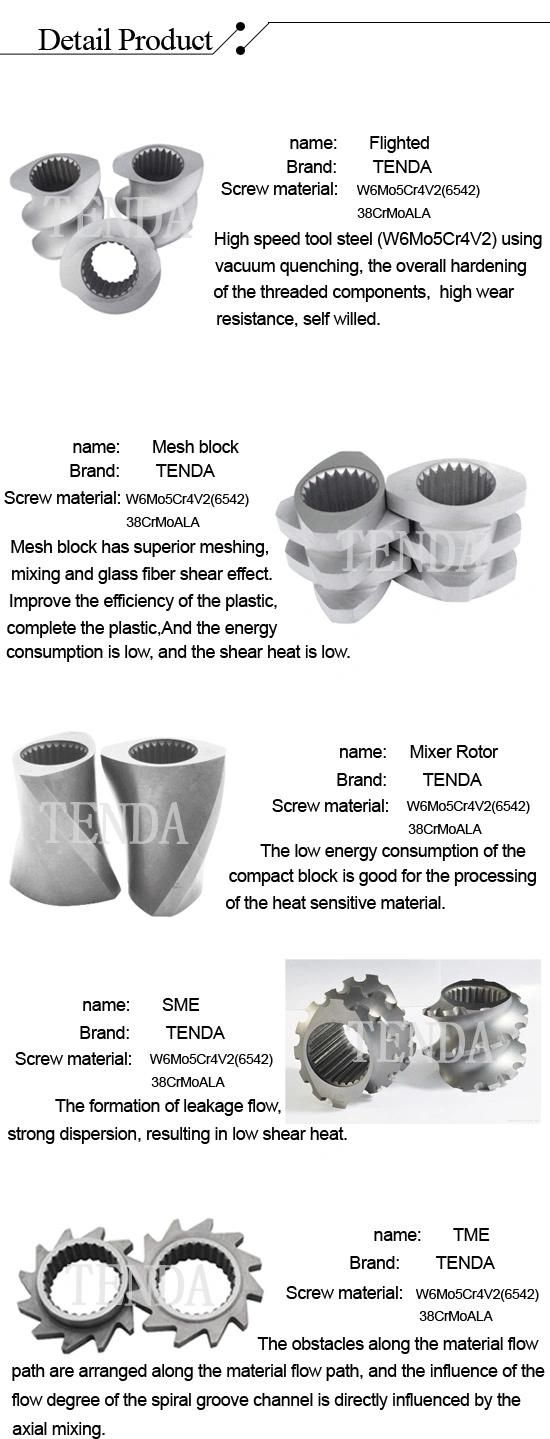

Screw Component for Twin Screw Extruding MachineProduct display

Type	TD-20	TD-35	TD-40	TD-50	TD-52	TD-60	TD-65	TD-75	TD-85	TD-95
Do(mm)	21.7	35.6	41.2	50.5	51.4	59.5	62.4	71	81	91
Di(mm)	14	23.6	27.2	32.5	34	43.5	40.4	47	52.6	63
Groove Depth	3.85	6	7	9	8.7	8	11	12	14.2	14

The screw elements and kneading blocks are designed accurately, by precise processed, agile combination, with interchangeability, which can fulfill efficient self-cleaning, transmission, compounding, press-forming,etc. The screw is made of high tool steel 38CrMoAlA or W6Mo5Cr4V2 by special heat-treatment, which is possessed with high corrosion-resistant and high wear-resistant functions.

Main Features:

The screw element is the main component of twin screw extruder.

The stability of extrusion material entirely depends  on the quality of screw element.

Through the computer our professionals accurately design the scientific and reasonable screw elements which have self-cleaning capacity.And it is very convenience for customers to clean the screw.

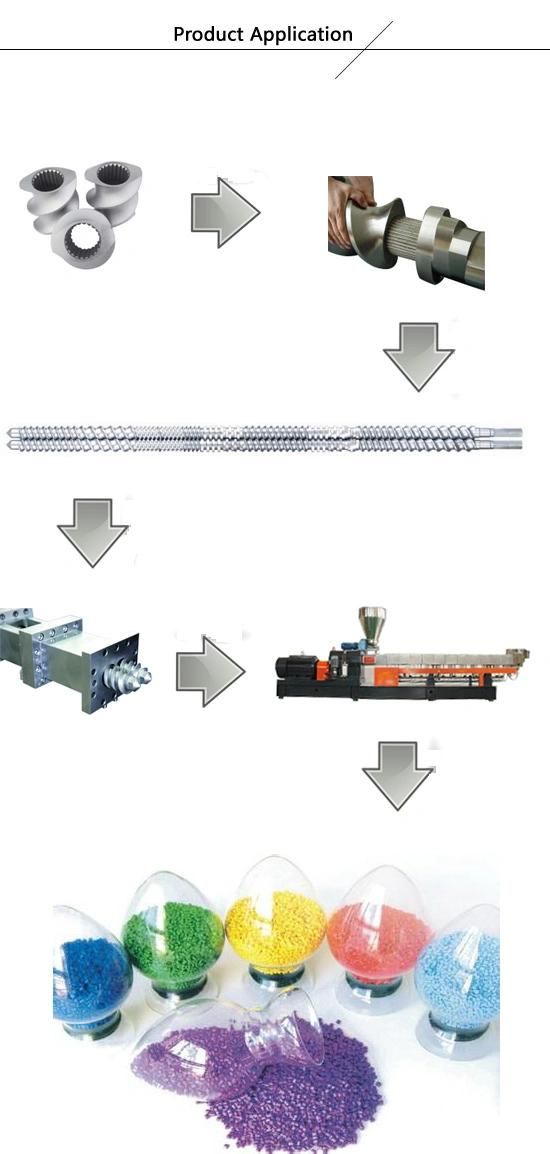

Application example

Our Advantages
