• Model NO.：SJ120,34
• Transport Package：Wood Pallet and PE Film
• Specification：ISO9001; CE
• Trademark：BEIER MACHINERY
• Origin：China
• HS Code：84778000
• Production Capacity：50sets,Year

No.NameQty.1Screw loader1set2SJ 120/34 single screw extruder1set3Hydraulic screen changer(JC Times)1set4Water-ring cutter1set5Conveying channel & water tank6Centrifugal dryer1set7Vibrator1set8Packing system1set
Screw:
 Diameter of screw: 120mm, L/D: 34
 Material of screw: 38CrMoAlA
 Surface treatment: Nitride processing, thickness: 0.4 ~ 0.7mm, Polishing
 Max. rotating speed: 94rpm
Barrel:
 Inner processing: nitride with thickness: 0.4 ~ 0.7mm
 Heating zones: 6 zones, Heating power: 59KW
 Heater: Cast Aluminum+ stainless steel covering
 Cooling air fans: 0.55KW×5
Driving motor:
Motor power: 110 kW
Type of motor: DC
Brand: SIMO
Venting system:
 Vacuum pump: 2.2KW×1set
Electric cabinet :
  Governor: Parker
 Contactor: Schneider
 Air Switch: Schneider
 Relay: Omron
 Temperature controller: RKC or Omron
Self protective system:
Over current protective of motor
Over pressure protective of screw.
Main Technical ParameterDiameter(mm)16-40Dual20-63Dual20-6350-16063-200160-315315-630 Conical extruderSJZ51/105SJZ65/132SJZ51/105SJZ65/132SJZ65/132SJZ80/156SJZ92/188Extruder power(KW)18.5AC37AC18.5AC37AC37AC55AC110DCMax. Lineal speed12151583.531.2Max. capacity(K/G)120250120250250350800
Our certification

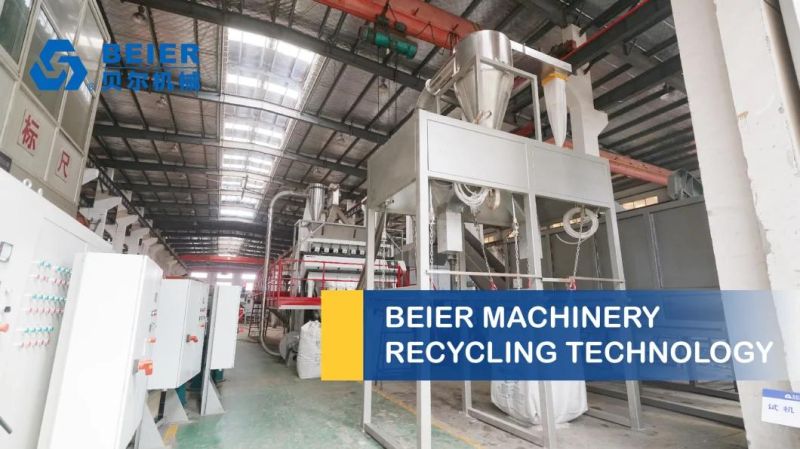

About Jiangsu Beier Machinery:
Jiangsu Beier Machinery Co., Ltd is specialized on plastic extrusion and recycling machinery manufacturing.
We have top-ranking Research and Development technology system and rich experienced technician team.
Our vision is to offer you the best and the most appropriate plastic extrusion and recycling solution, to offer you the most reliable technically and commercial service support.

Pre-Sale and After-Sale Service:
1. Provide all the machines for the complete production according to customer's requirements.
2. Provide complete service for factory layout and other information to help customer to build the factory.
3. Provide the raw material to the customer if need.
4. Provide good service for machine installation and training, until the customers can run the machines and make stable production.
5. Provide after-sell service for all the life, except one year quality guarantee,
6. Provide good quality, good price and good service to customer. We are the professional and trustable supplier for turnkey projects. Let us do win-win business together.
