• Model NO.：JS5II
• Machine Cavity：1 -2
• Machine Output：400-700PCS,H
• Transport Package：Wooden Box
• Specification：CE, SGS
• Trademark：JS
• Origin：Taizhou
• HS Code：84773090
• Production Capacity：600-900PCS,H

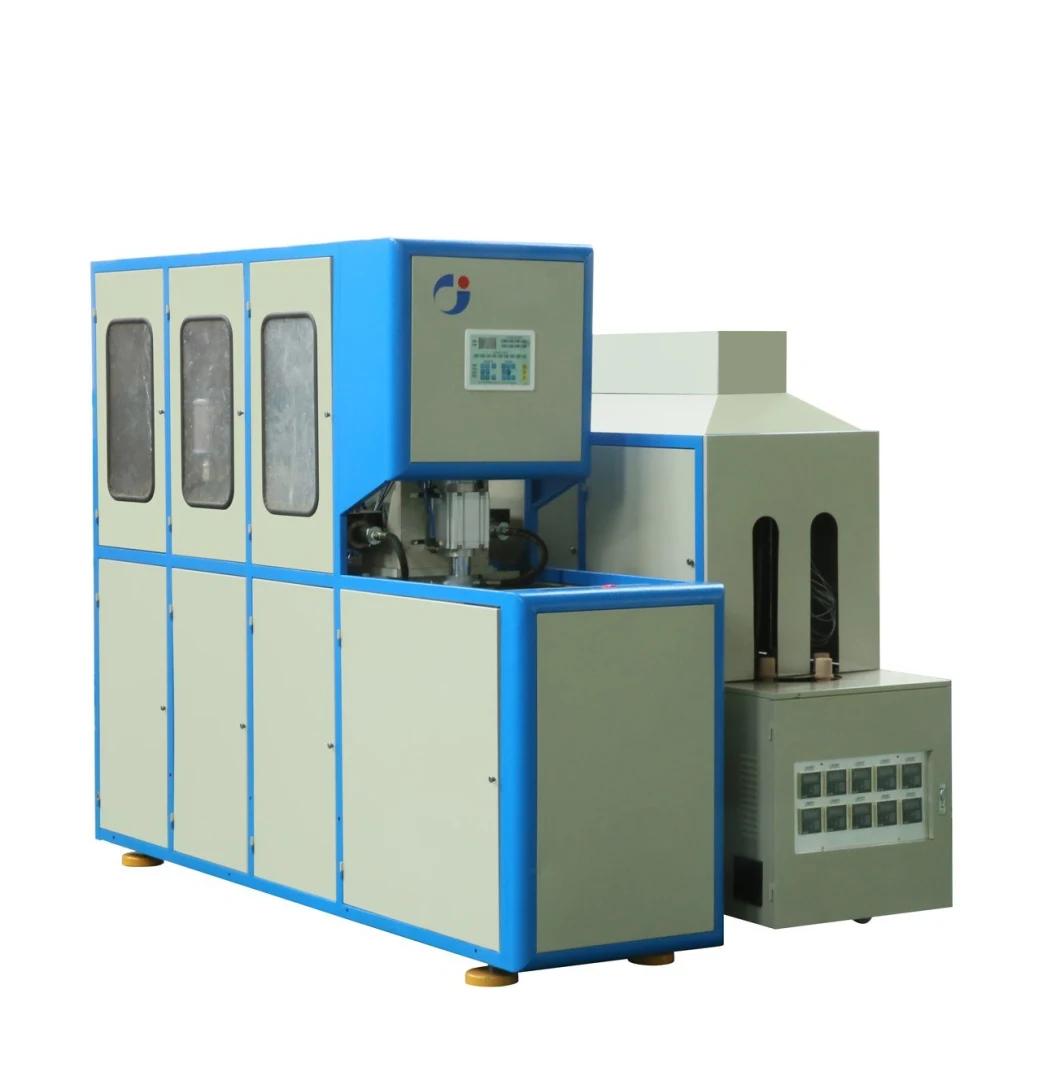

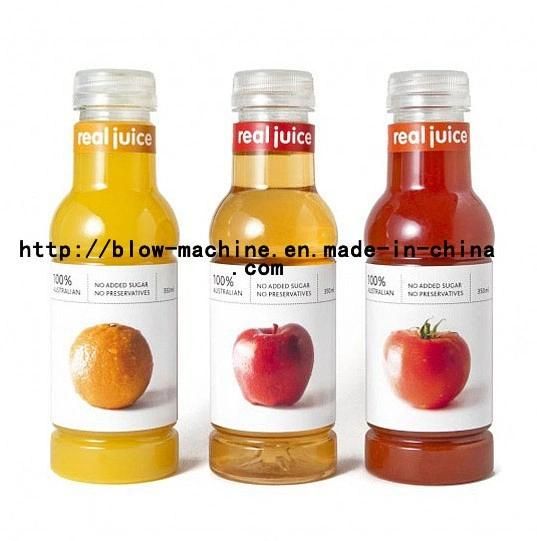

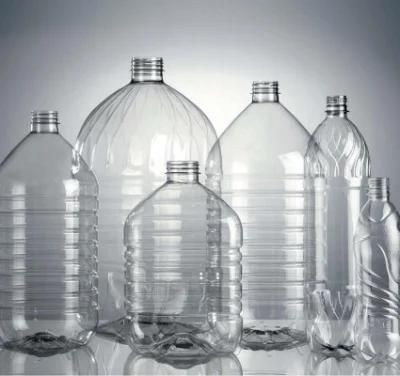

Semi-Automatic Blow Moulding Machine blow molding machine is suitable for producing PET plastic containers and bottles from 10-2000ml. It is widely used to produce the carbonated bottles, mineral water, pesticide bottles, oil bottles, cosmetic bottles, and wide-mouth bottles.

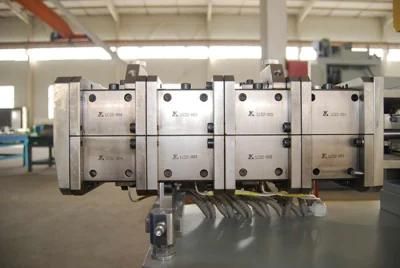

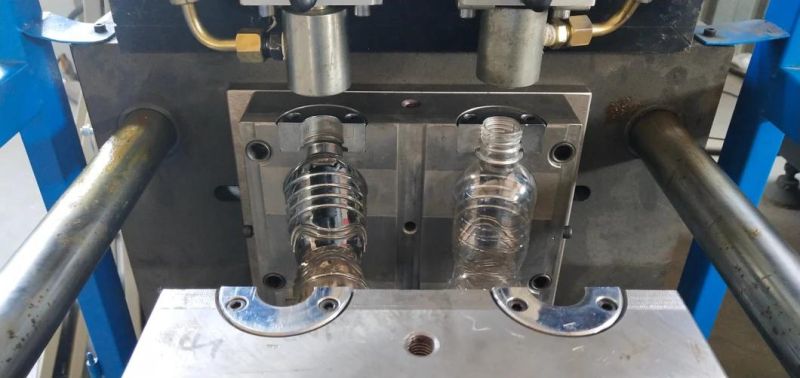

Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt

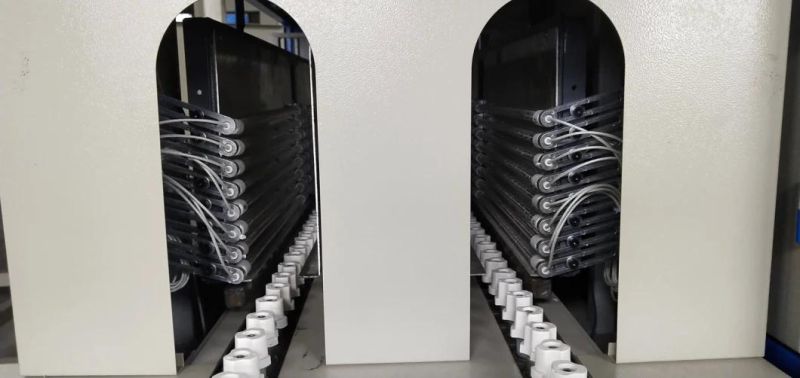

Infrared oven to heat the perform, the perform rotated and heated equally.

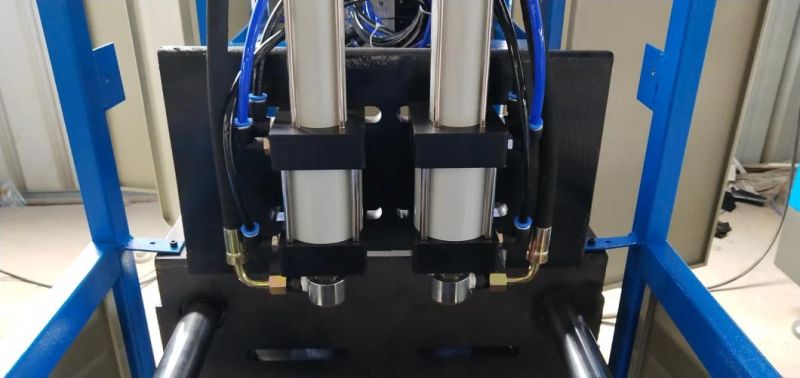

The air system has been divided into two parts: Pneumatic action part and bottle
Blow part to meet the different requirements for the action and blow. It can provide
Sufficient and steady high pressure for blowing large irregular shaped bottles.

The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.

The machine can be operated in the step-by-step mode and the semi- auto mode.
The machine is small with low investment, easy and safe to operate by one person.Mold gathering strength (kN)60Mold traveling distance (mm)135Pulling rising traveling distance (mm)360Bottle spacing120-150Mold hole number (cavity)2Max. Bottle capacity (L)2Max. Tooth part size (mm)40Max. Bottle diameter (mm)95Max. Bottle body height (mm)360Theoretic production capacity (bph)700-900Total power consumption (kW)14Thermal rating (kW)12.8Operating pressure (kg/cm2)8Low pressure gas consumption (L/min)300Bottle blowing pressure (kg/cm2):25High-pressured gas consumption (L/min)350

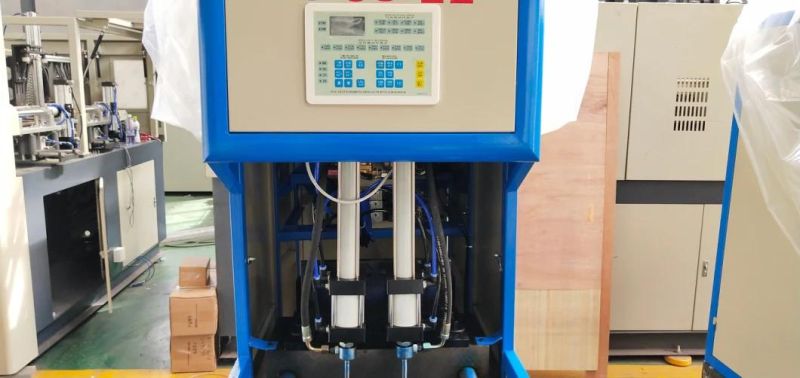

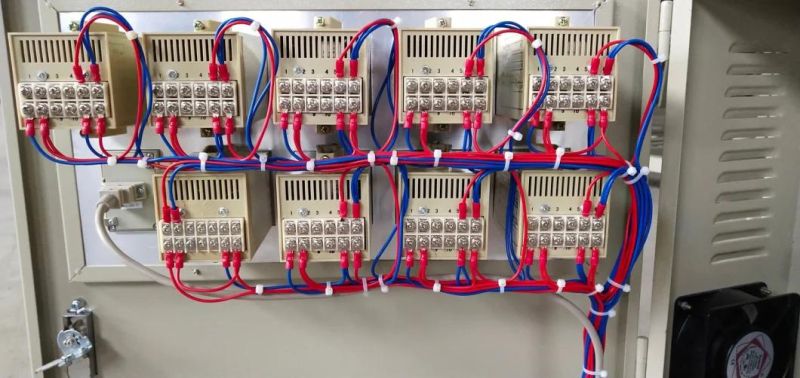

Internal details of the Machine
