Vacuum Sizing HDPE Plastic Pipe/PE Casing/PE Jacket Thermal Insulation Pipe Extrusion ...

Qingdao Huashida Machinery Co., Ltd.
  • Warranty：12 Months
  • Product Type：PE Pipe
  • Screw No.：Single-screw
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE, ISO9001:2008

Base Info

  • Model NO.：PE-1155,2000
  • Customized：Customized
  • Condition：New
  • Material：PE
  • Length：45m
  • Installed Power：600kw
  • Main Extruder：Sj-150,33
  • Transport Package：Standard Package
  • Specification：EN253, EN448, EN728, ISO1133, ISO8501-1. ISO9001
  • Trademark：HSD
  • Origin：Qingdao China
  • HS Code：8477209000
  • Production Capacity：100 Units,Year

Description

ModelPE-110/600PE-655/1380PE-960/1680PE-1155/2000Main extruderSJ75/33SJ120/33SJ150/33SJ150/33Motor 75/90KW280/315KW355KW400KWCapacity250-280kg/h; 300-350kg/h800-950kg/h1200kg/h1350kg/hPipe Diameter110,125, 140, 160, 180,200, 225, 250, 265,315, 365, 420, 470,500, 550, 560, 600 (with8-12)655, 760,850,960,1054,1155,1380960, 1054, 1155, 1380, 16801155, 1380, 1680, 1890, 2000Installed power160KW480KW560KW600KWLength24m36m45m45mDelivery Time40 Days60 Days60 Days60 Days



High-effeciency single screw extruder
Single screw is with barreir & mixing head; barrel is new model with slotting (channel), Both make security of good jellification, large output and stable performance.Vacuum Sizing HDPE Plastic Pipe/PE Casing/PE Jacket Thermal Insulation Pipe Extrusion Production Line


Vacuum Calibration Tank

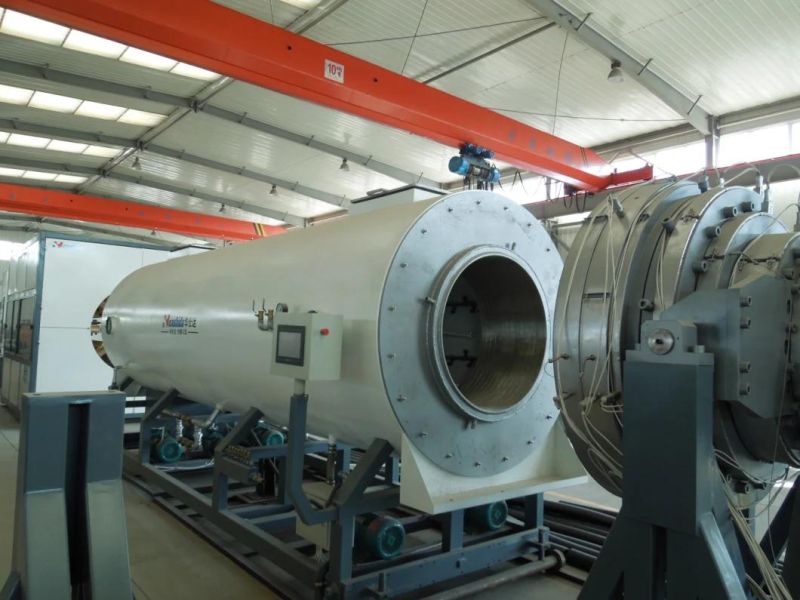

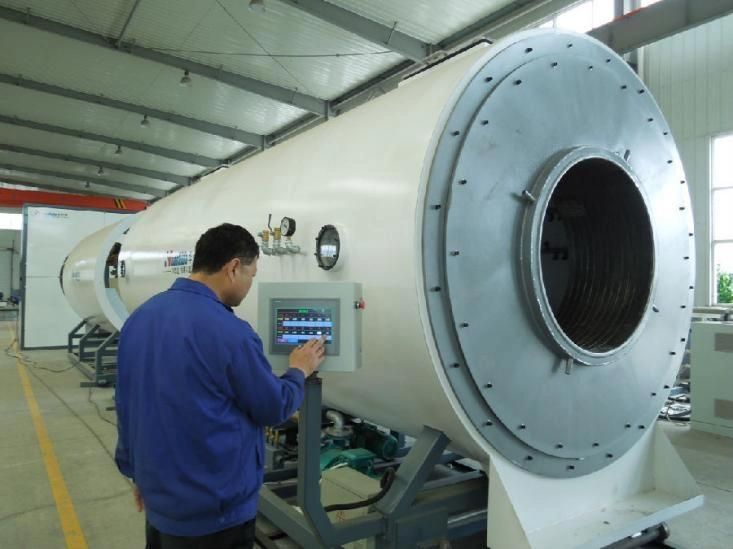

Vacuum calibration tank is mainly composed of frame, stainless steel tank, vacuum system, spray cooling system, back and forth mobile device. When it is at work, the vacuum pump exhausts the air from the sealed tank to pressurize the fresh pipe cling to calibrating copper sleeve and to realize calibrating the pipe outer diameter. Spray cooling system is used to cool down the extruded pipe by water. Spray nozzles spray cooling water from all directions on pipe surface to cool down the pipe promptly.
Vacuum Sizing HDPE Plastic Pipe/PE Casing/PE Jacket Thermal Insulation Pipe Extrusion Production Line


Caterpillar Haul-off Machine
Haul-off machine is mainly composed of driving device, haul-off chain caterpillar, clamping structure, adjusting system, side plate, and foundation bed. Haul-off caterpillars are AC motor driven and adopt frequency control of speed to adapt to different pipes extruding speed. It is also equipped with automatic length measuring device to realize cutter cutting at set length.
Vacuum Sizing HDPE Plastic Pipe/PE Casing/PE Jacket Thermal Insulation Pipe Extrusion Production Line





No-Dust Cutter

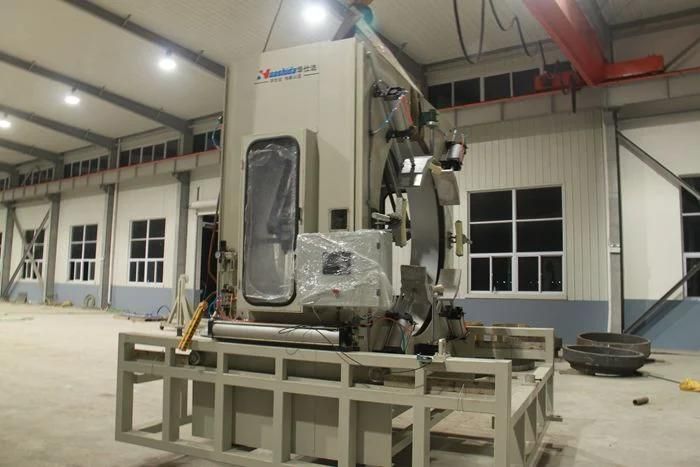

It adopts blade punching principle to realize no-dust cutting. It is mainly composed of cutting device, clamping device, structure synchronous mobile device, and frame.Vacuum Sizing HDPE Plastic Pipe/PE Casing/PE Jacket Thermal Insulation Pipe Extrusion Production Line



Control system
The complete line could be controlled by PLC, with good human-machine interface, all technical parameters could be set and indicated by touching screen. Controlling system is designed according to the customer;s requirement, to be with PLC, or without. Vacuum Sizing HDPE Plastic Pipe/PE Casing/PE Jacket Thermal Insulation Pipe Extrusion Production Line



Discharging frame

The table surface is made of stainless steel. It adopts pneumatic overturn and discharging automatically.Vacuum Sizing HDPE Plastic Pipe/PE Casing/PE Jacket Thermal Insulation Pipe Extrusion Production Line

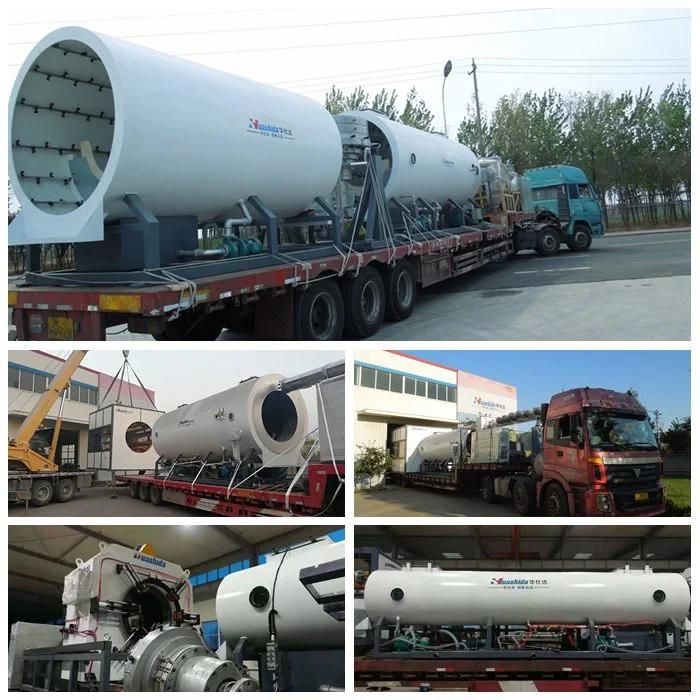

Delivery
