• Model NO.：SJSZ65,132
• Condition：New
• Transport Package：Export Package
• Specification：50-160 mm
• Trademark：HLD
• Origin：Qingdao, China
• HS Code：84772090
• Production Capacity：250 Kg,H

Basic Info.

Model NO. SJSZ65/132 Condition New Transport Package Export Package Specification 50-160 mm Trademark HLD Origin Qingdao, China HS Code 84772090 Production Capacity 250 Kg/H

Product Description

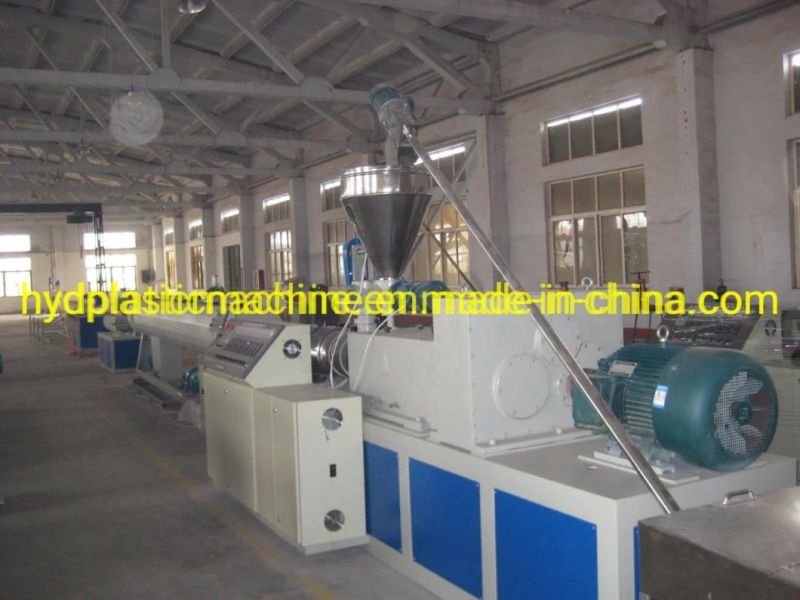

China best PVC pipe extrusion production line
full automatic PVC pipe production line
UPVC drainage pipe extrusion line

Main Features:
Specified screw design for better material plasticizing&mixing effect and lower cost formula.
Higher density and stronger mechanical properties of the pipe as a result of large compression ratio of mold design.
More stable and reliable hauling, no deformation, multi-caterpillar structure of haul-off unit, suitable for different size range.
Planetary cutting with chambering function for stable&reliable cutting and precise length-counting.

machine component:

1. material auto loader

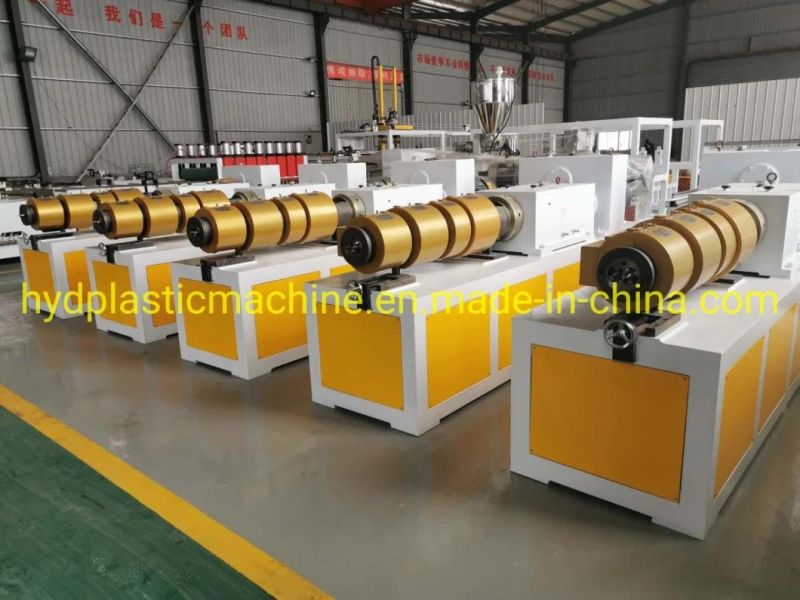

2. SJSZ65/132 twin conical screw extruder

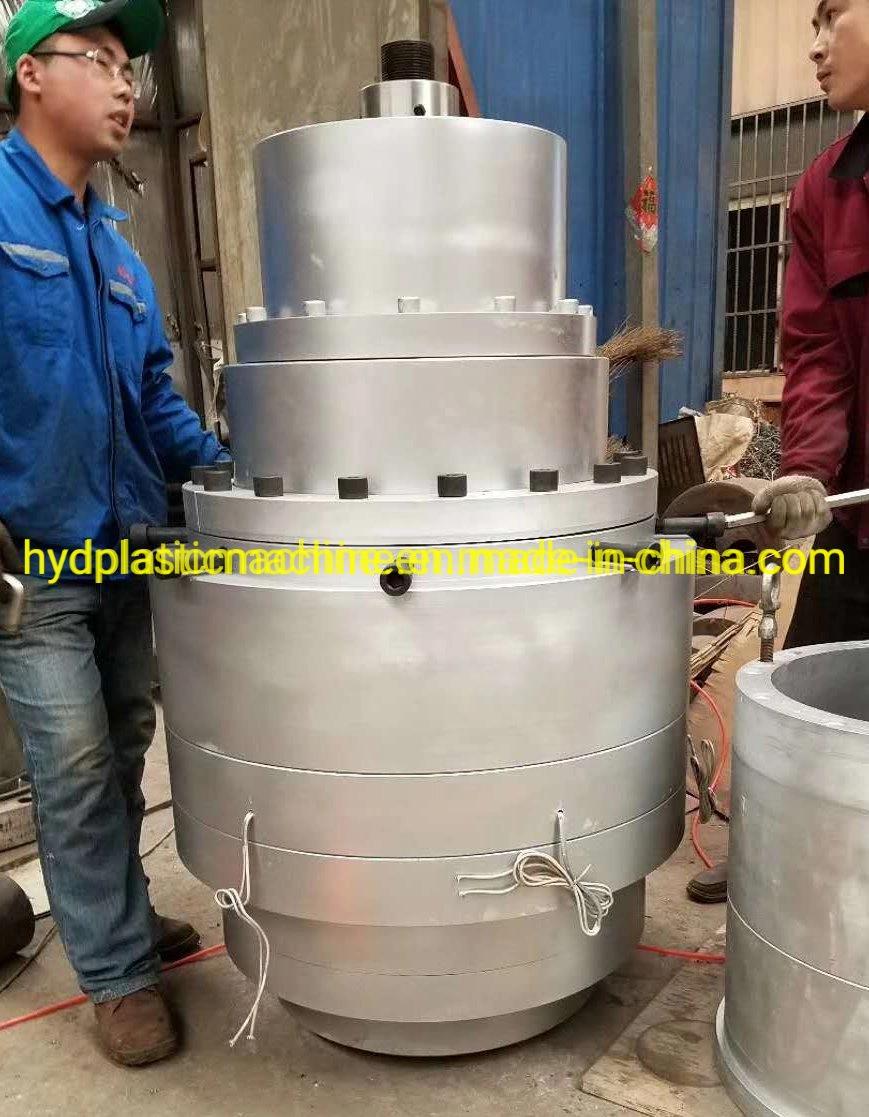

3. mould

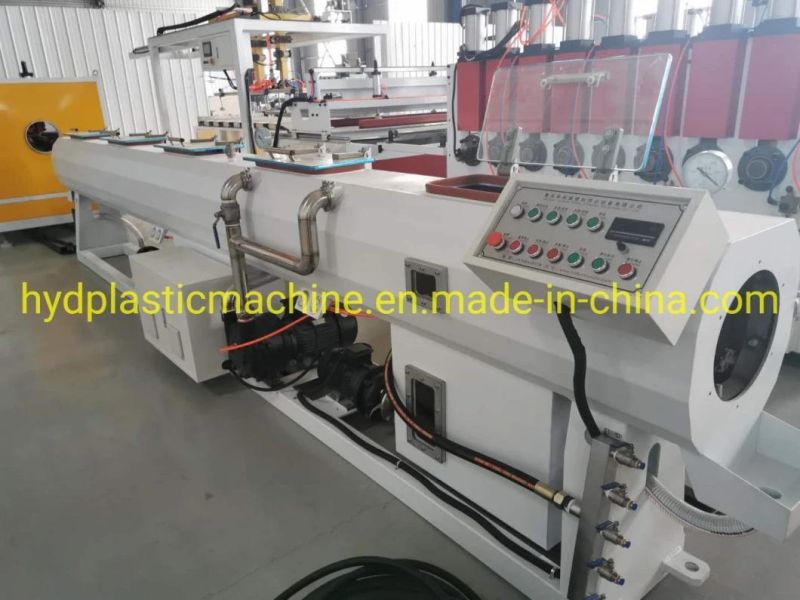

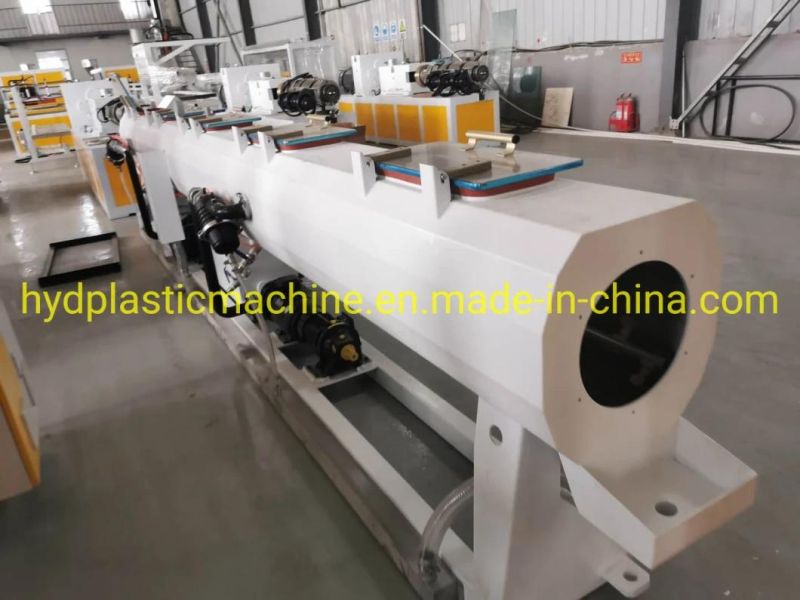

4. vacuum water tank

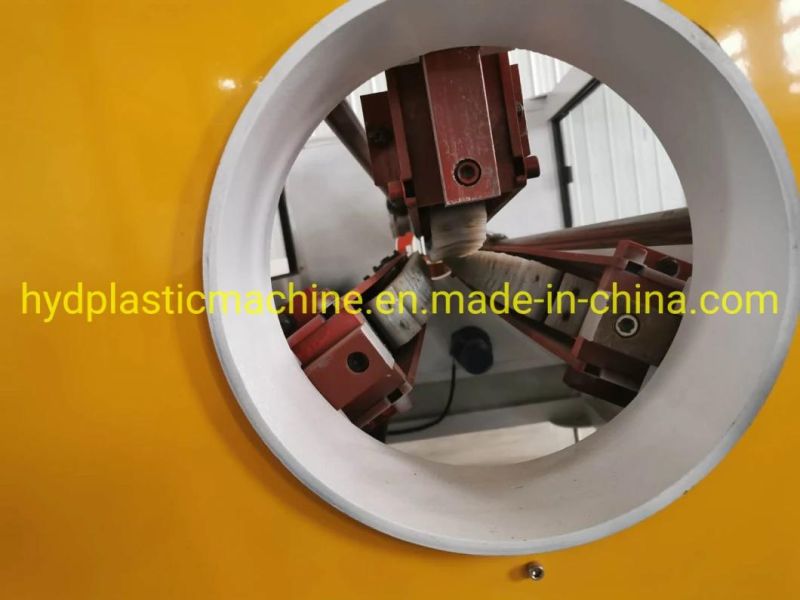

5. haul off

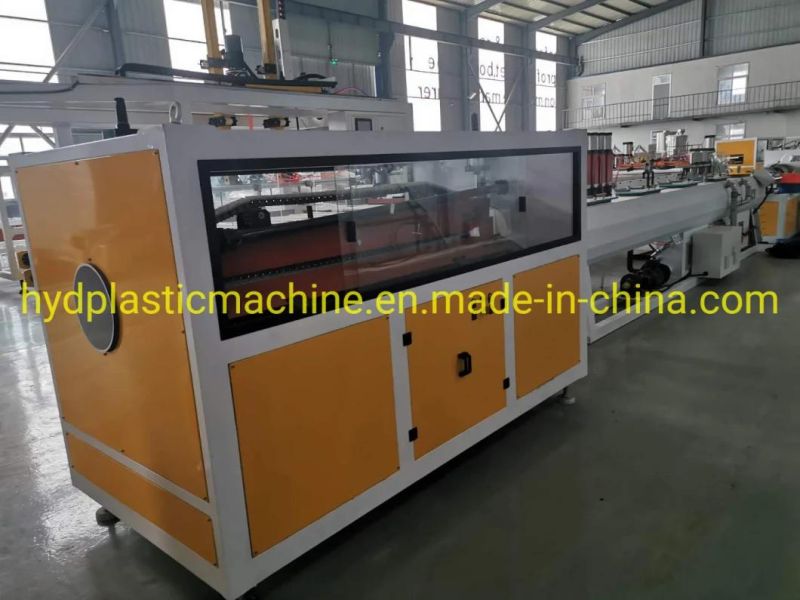

6. cutter
7. stacker

Main technical parameters

Model	Pipe range/mm	Capacity kg/h	Maximum linear velocity (m/min)	Main motor power /kw	Total length/m
SJSZ-65/132	50-110	120-250	6	37	22
SJSZ-80/156	110-250	250-400	5	75	23
SJSZ-92/188	315-630	400-700	1.5	110	32

PVC Double-Pipe Production Line

Model	Pipe Diameter	Output	Max Speed	Motor	Total Length
SJSZ-65/132	50-75mm	250-350 kg/h	6m/min*2	30kw	22m
SJSZ-80/156	50-110mm	500-750kg/h	8m/min*2	55kw	23m
