• Model NO.：DSB120
• Sutiable：200L 250L Drums
• Max. Product Volume：250L
• Suitable Material：HDPE
• Output Capacities：as Per Sample
• Screw Diameter：120mm
• Screw L/D Ratio：28 L,D
• Screw Drive Power：75kw
• Screw Heating Capacity：30 Kw
• No.of Heating Zone：5 Zones
• Output of HDPE：240 Kg,H
• Oil Pump Drive Power：45 Kw
• Clamping Force：800 Kn
• Cooling Water Pressure：0.3MPa
• Water Consumption：180 L,Min
• Delivery Time：75days
• Transport Package：Film Packing
• Specification：DSB120
• Trademark：Dawson
• Origin：Zhangjiagang, Jiangsu, China
• HS Code：8477301000
• Production Capacity：as Per Samples

Basic Info.

Model NO. DSB120 Sutiable 200L 250L Drums Max. Product Volume 250L Suitable Material HDPE Output Capacities as Per Sample Screw Diameter 120mm Screw L/D Ratio 28 L/D Screw Drive Power 75kw Screw Heating Capacity 30 Kw No.of Heating Zone 5 Zones Output of HDPE 240 Kg/H Oil Pump Drive Power 45 Kw Clamping Force 800 Kn Cooling Water Pressure 0.3MPa Water Consumption 180 L/Min Delivery Time 75days Transport Package Film Packing Specification DSB120 Trademark Dawson Origin Zhangjiagang, Jiangsu, China HS Code 8477301000 Production Capacity as Per Samples

Product Description

DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

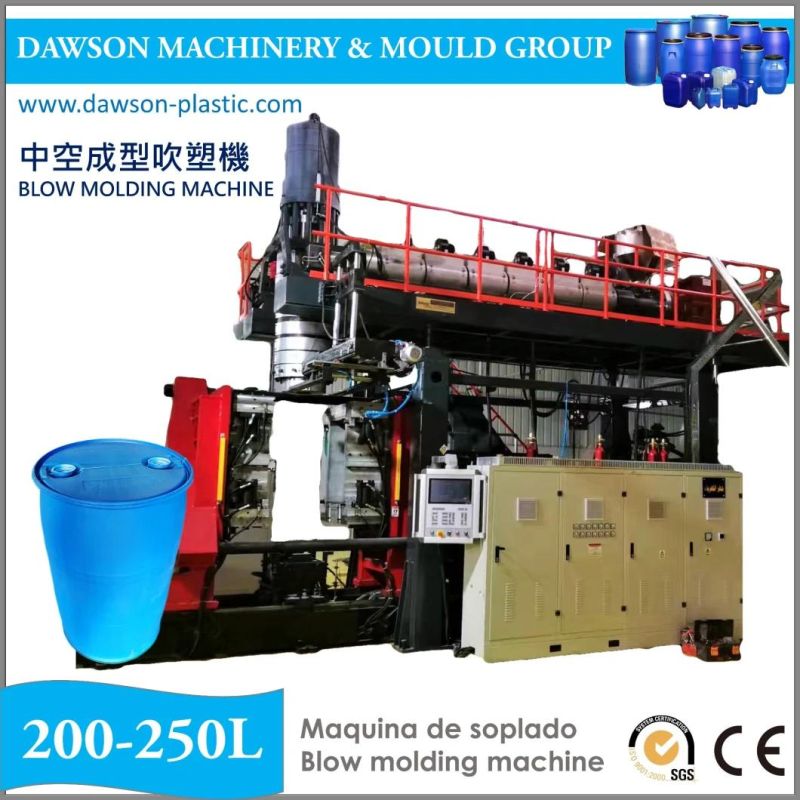

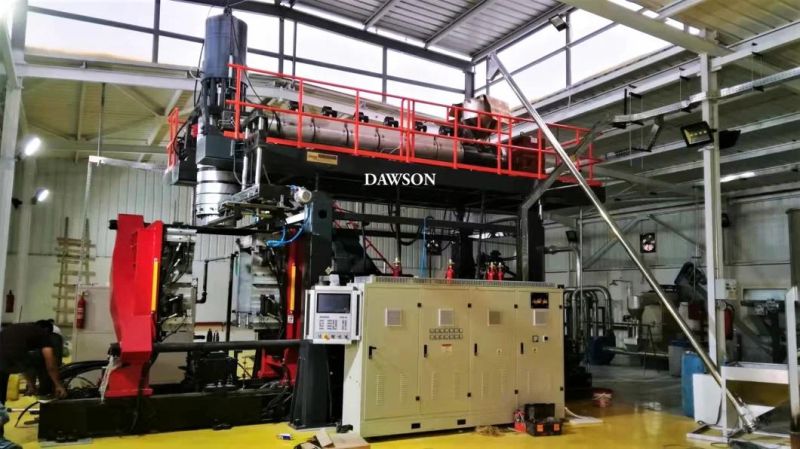

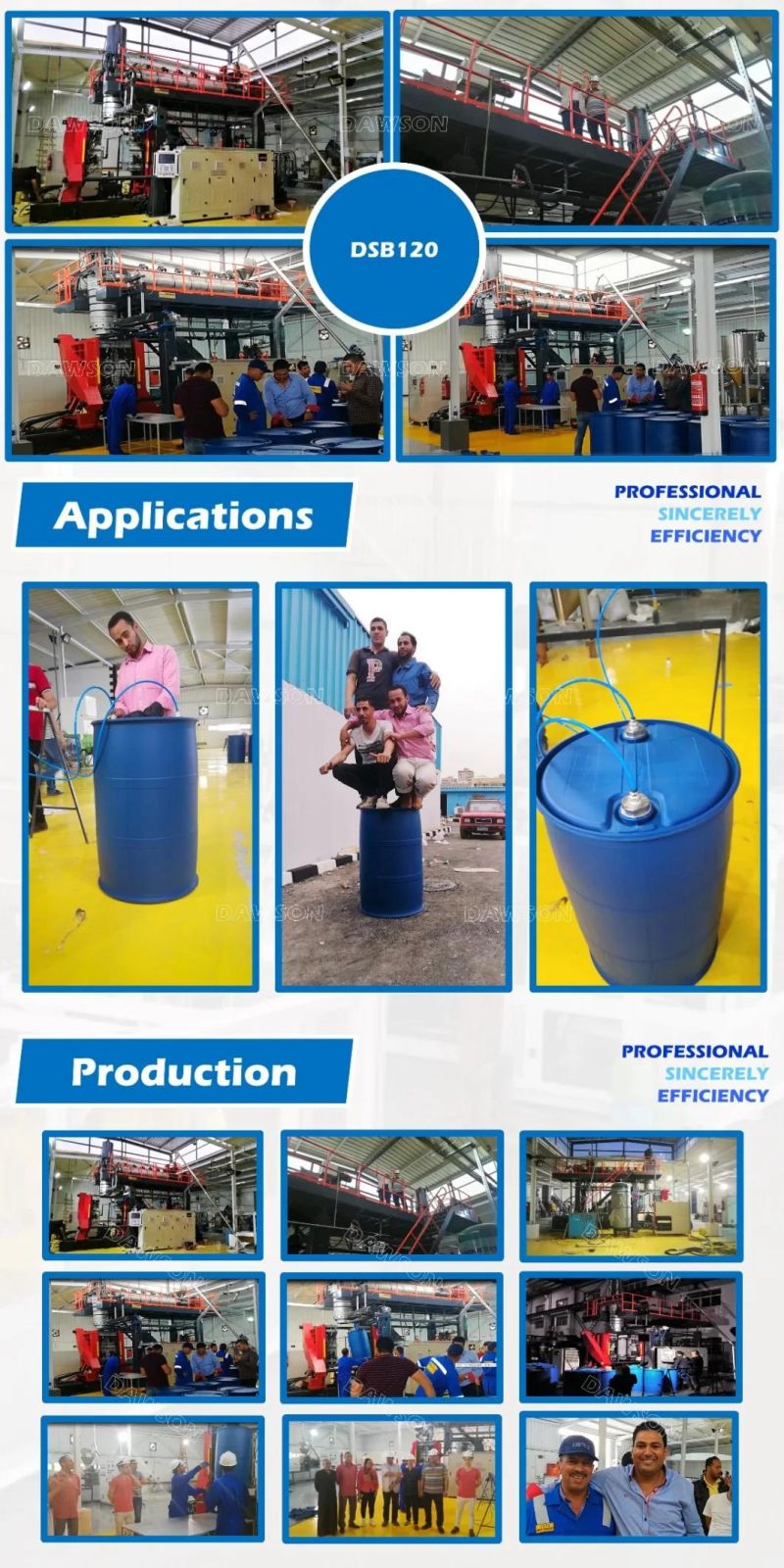

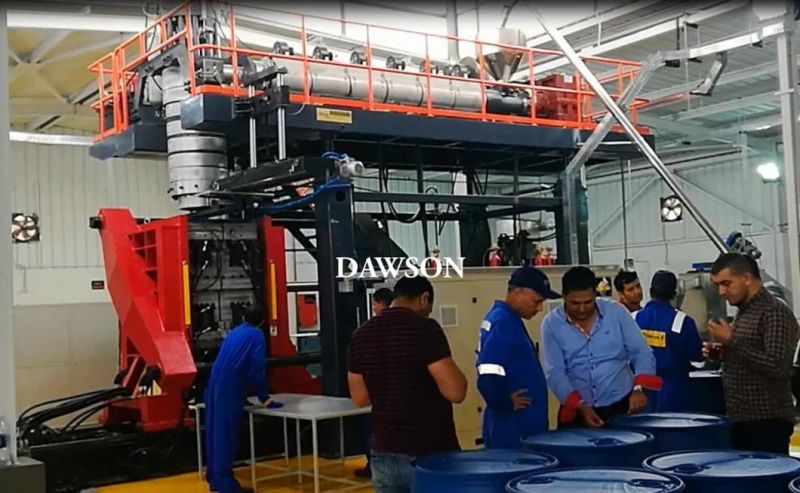

 Accumulation Blow Molding Machine DSB120




 DSB120 Accumulation Blow Molding Machine
was specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 250L.

The features of this machine:

(1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 250L.

(2)Single station single die head design, very easy to operate and maintenance.

(3)Most components of the blow moulding machine are from famous world brand.

(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.

(5)Accumulation die head, MOOG parison controller equipped.

(6)Bottom blow technology make the product perfect.

(7)Auto lubricant system controlled by PLC.

Blow Molding Machine DSB120

Max. Product volume	250liters
Output capacities	as per samples
Screw diameter	120mm
Screw L/D ratio	28 L/D
Screw drive power	75 KW
Screw heating capacity	30 KW
No.of heating zone	5 zones
Output of HDPE	240 KG/H
Oil pump drive power	45 KW
Clamping force	800 KN
Max.size of mold	1000X1500mm
Mold stroke	600-1500mm
Max.die diameter	520mm
Die heating power	12 KW
Die heating segments	5 zones
Blowing pressure	0.8mpa
Air volume	1.6 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	180 L/MIN
