Mini Lab Twin Screw Extruder Machine for Plastic Material
Dongguan Xihua Machinery Technology Co., Ltd.- Raw Material：PE
- Screw：Double-Screw
- Inverter：Inverter
- Electromagnetic Heater：Electromagnetic Heater
- Automation：Automatic
- Computerized：Computerized
Base Info
- Model NO.：XH-433
- Customized：Non-Customized
- Certification：CE, ISO9001:2008
- Condition：New
- Applicable Materials：PP, PE, PS, Pet, TPE, etc.
- Screw Diameters：21.7mm
- Screw Speed：0 - 300rpm
- Screw L/D Ratio：1:40
- Output：1 - 10kg,H (Decide by Formula)
- Cooling Device：Air,Water Cooling
- Cutting Device：Granulator
- Power Supply：380V,50Hz,3 Phases or Customerized
- Control Mode：Siemens Touching Screen PLC Control
- Transport Package：Wooden Case
- Trademark：Xihua
- Origin：China
Description
Main Features
1) Adopting international brand variable speed control motor to precisely control the screw rotating speed;
2) The 3D processed geometry screw elements maintain uniform gaps and achieve very good self-clean and precise plasticizing effect;
3) Using parallel two-axis high speed high torque gearbox to make the extruder applicable for more than 95% materials' compounding and extrusion technologies;
4) Emergency stops and devices to protect safety of the operator;
5) Optional side feeder for special materials, e.g. glass fiber;
6) Optional forced feeder to increase stability of feeding;
7) Optional liquid feeding equipment;
8) Optional gravimetric feeder

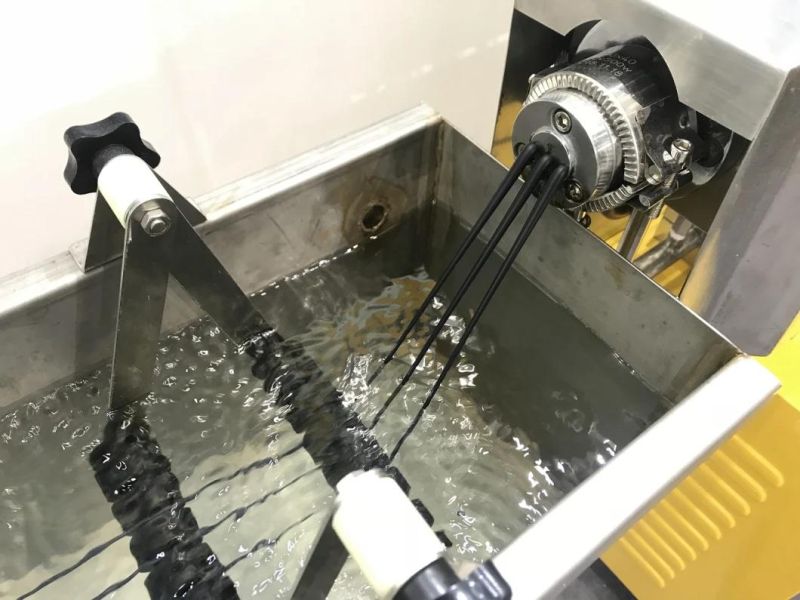

Detail images

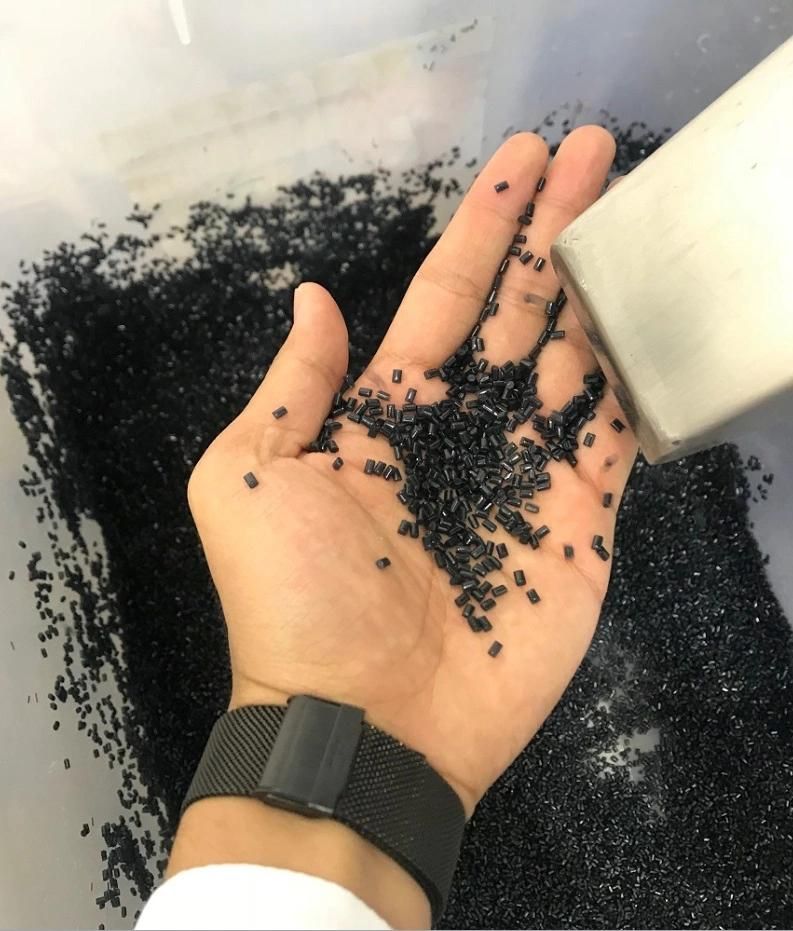

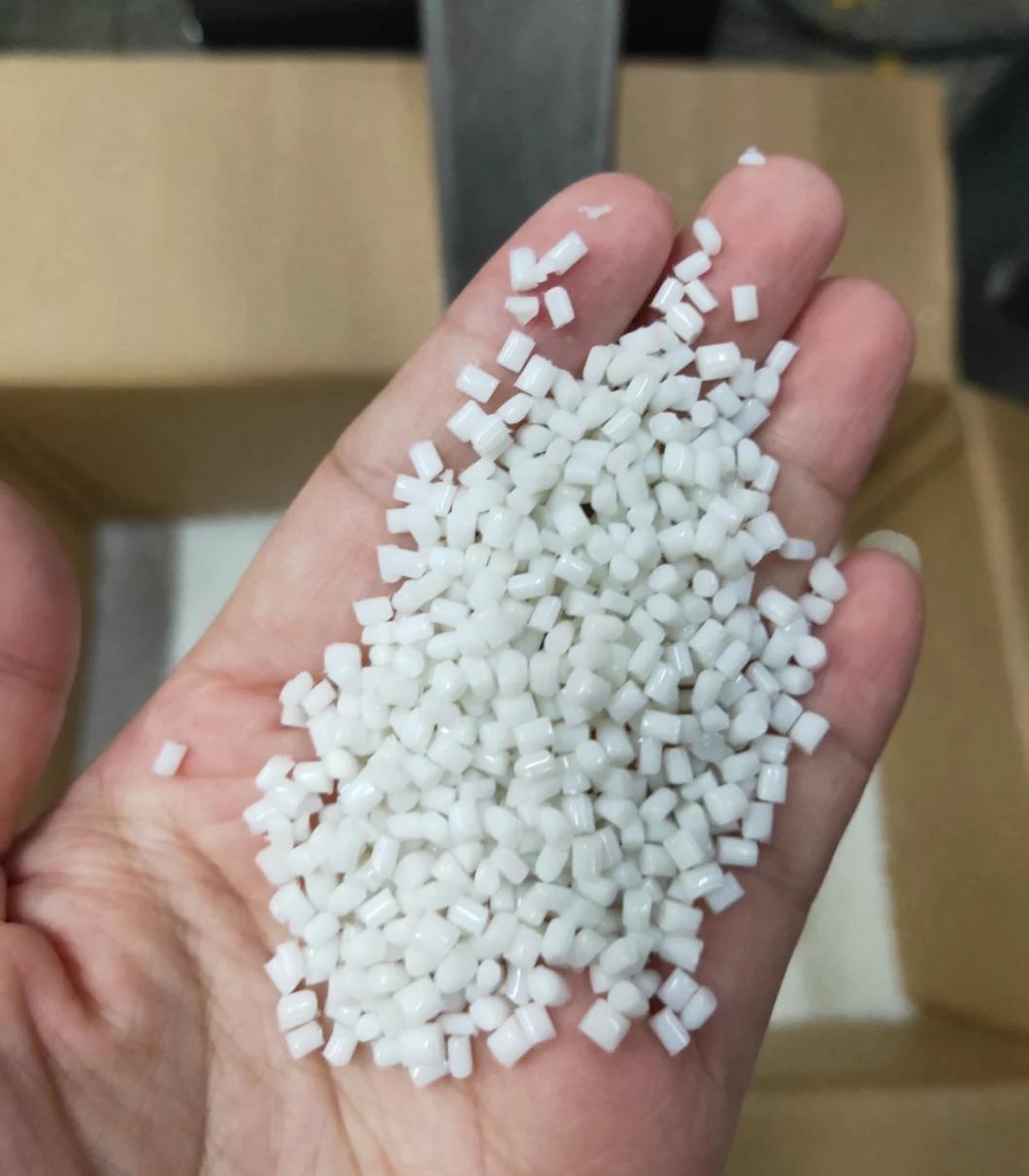

Testing sample
