• Sheet Thickness：0.2-2mm
• Available Material：PP Pet PVC PS PLA
• Max. Forming Area：680X420mm
• Sheet Width：400-690mm
• Forming Depth：200mm
• Speed：15-30 Cycles,Min
• Heating Power：70kw
• Motor Power：4kw X 4
• Air Consumption：0.5-0.8 Bar
• Total Installed Power：80kw
• Weight：7.5 Ton
• Transport Package：Sea Worthy Cases
• Specification：7.5*2.4*2.2M
• Origin：China
• Production Capacity：5 Sets,Month

Basic Info.

Sheet Thickness 0.2-2mm Available Material PP Pet PVC PS PLA Max. Forming Area 680X420mm Sheet Width 400-690mm Forming Depth 200mm Speed 15-30 Cycles/Min Heating Power 70kw Motor Power 4kw X 4 Air Consumption 0.5-0.8 Bar Total Installed Power 80kw Weight 7.5 Ton Transport Package Sea Worthy Cases Specification 7.5*2.4*2.2M Origin China Production Capacity 5 Sets/Month

Product Description

Main Features:
This machine is suitable to handle different materials, such as PP, A-PET, R-PET, C-PET, BOPS, HIPS, PP, PLA, PVC and barrier material. It could produce many items such as trays, lids, fruits and vegetables boxes, flowerpots, clam-shells, nursery trays and plates.

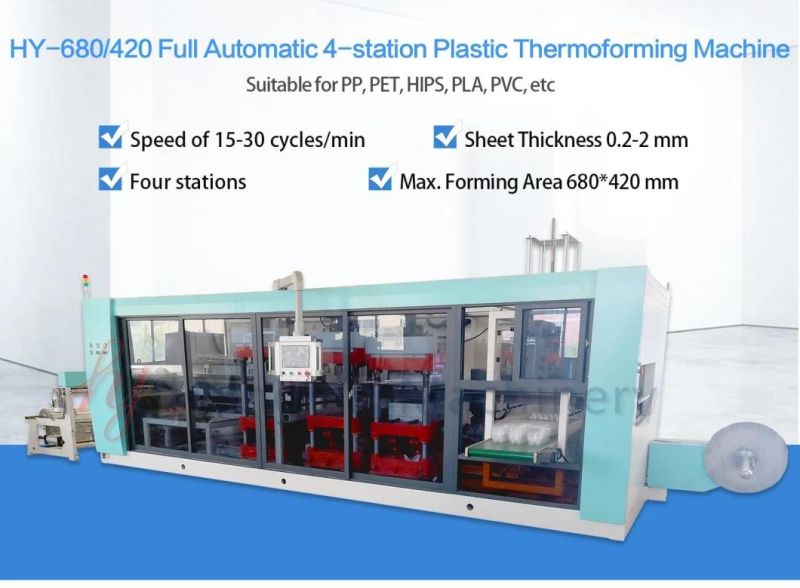

The multi-station positive and negative thermoforming machine represent an innovative model with the following features:
• High level of standardization.
• Exceptional repeatability.
• Rugged durability.
• Flexible production for a wide range of articles.
• Increased high-speed performances.
• 4-column press for forming and cutting with perfect balance of the forces on mould platens.
• Cutting accuracy and reliability.
• Electric drives on all the main moving parts.
• User-friendly software to control each operation and working.

Main Technical Features:

1. Sheet Thickness	0.2-2mm
2. Available Material	PP PET PVC PS PLA
3. Max. Forming Area	680x420mm
4. Sheet Width	400-690mm
5. Forming Depth	120mm
6. Speed	15-30/min
7. Heating Power	70kw
8. Motor Power	4kw x 4
9. Air Consumption	0.5-0.8 bar
10.Total installed Power	80kw
11. Weight	7.5 ton
12. Machine over Dimension	7.5x2.4x2.2M

About Ruian Hongyin Machinery Co., Ltd Service.

1. Pre-sales Service
Hongyin MACHINERY has a specialized and efficiency working team. If you are new on the plastic forming machine area, we are glad to give you specialized suggestion of the whole work.

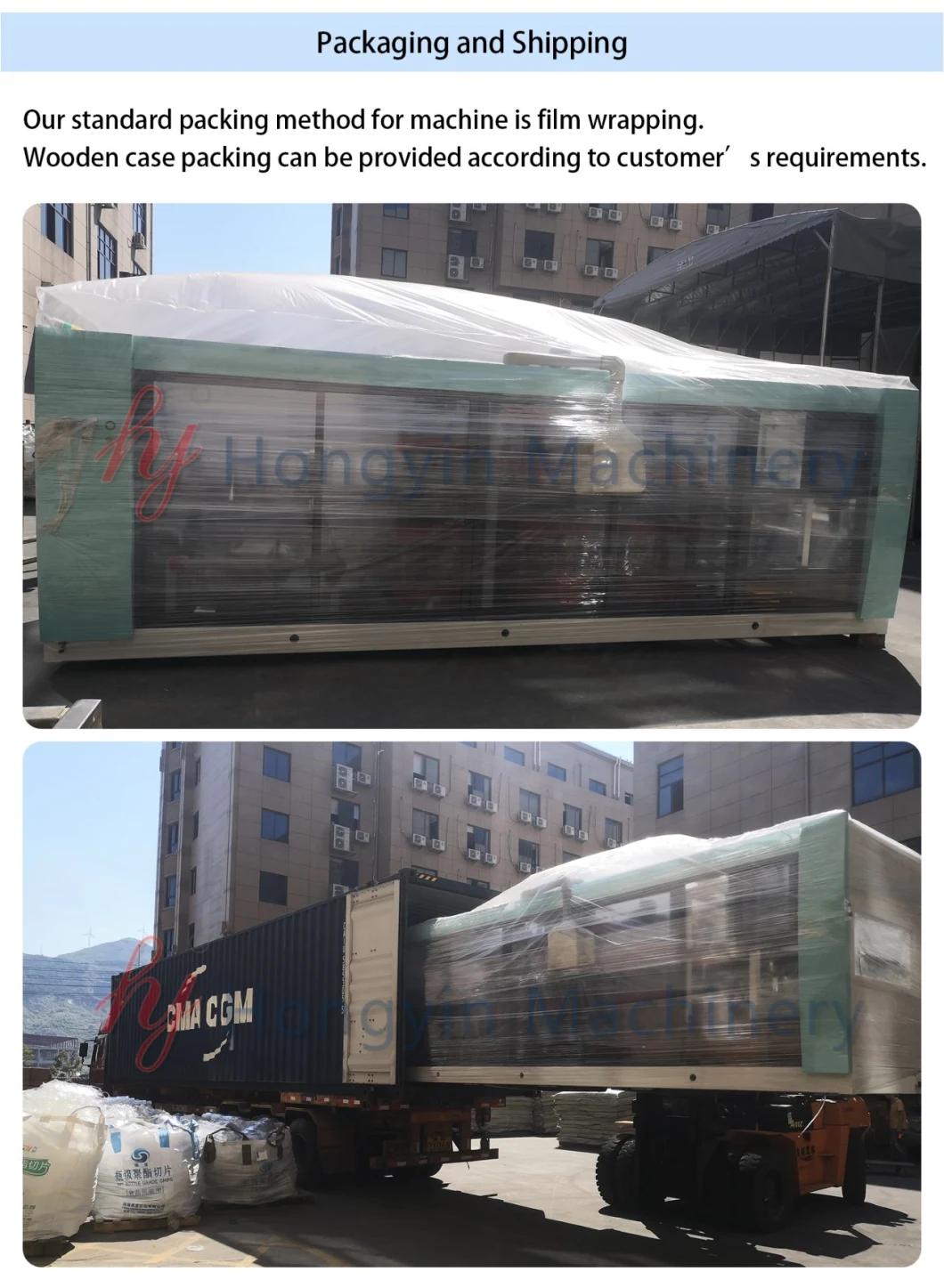

2. Shipping Service
Hongyin MACHINERY has a specialized and independent department to arrange the shipment. We will prepare all the necessary documents so as to arrange the delivery smoothly.
We cooperate with the most famous shipping company in China, they could provide the best and economic shipping ways to the destination.

3. Installation Services
Installation Services are available with all Hongyin Company machines. We could dispatch technician to the Buyer's factory for installation and preparation of the machines.
The buyer needs to supply the round trip tickets, food, hotel cost and daily salary.

4. Clients Training Services
The buyer could also send your own technician come to Hongyin factory to learn how to operate machines. Our technician will teach and train the learners hand by hand till he can operate machine by himself.

5. After Sales Service
Hongyin Company machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with machines.


If you are interested in our machine, please feel free and contact me.
