• Model NO.：SJ65,132
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Computerized
• Name：PP Strap Band Extrusion Line
• Product Thickness：0.4-1.3mm or Customized
• Output：2-3 Tons,Day
• Power Consumption：35-65kw,Hr
• Width Accuracy：+-0.5mm
• Bobbin Core Dia.：200mm or Customized
• Thickness Accuracy：+-0.05mm
• Ce Certificate：Available
• Production Speed：60-220m,Min
• Product Width：5-19mm or Customize
• Transport Package：Sea Worthy Packing
• Specification：3CBM
• Trademark：CAMEL MACHINERY
• Origin：Zhangjiagang, China
• HS Code：84778000
• Production Capacity：50sets,Year

Basic Info.

Model NO. SJ65/132 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Name PP Strap Band Extrusion Line Product Thickness 0.4-1.3mm or Customized Output 2-3 Tons/Day Power Consumption 35-65kw/Hr Width Accuracy +-0.5mm Bobbin Core Dia. 200mm or Customized Thickness Accuracy +-0.05mm Ce Certificate Available Production Speed 60-220m/Min Product Width 5-19mm or Customize Transport Package Sea Worthy Packing Specification 3CBM Trademark CAMEL MACHINERY Origin Zhangjiagang, China HS Code 84778000 Production Capacity 50sets/Year

Product Description

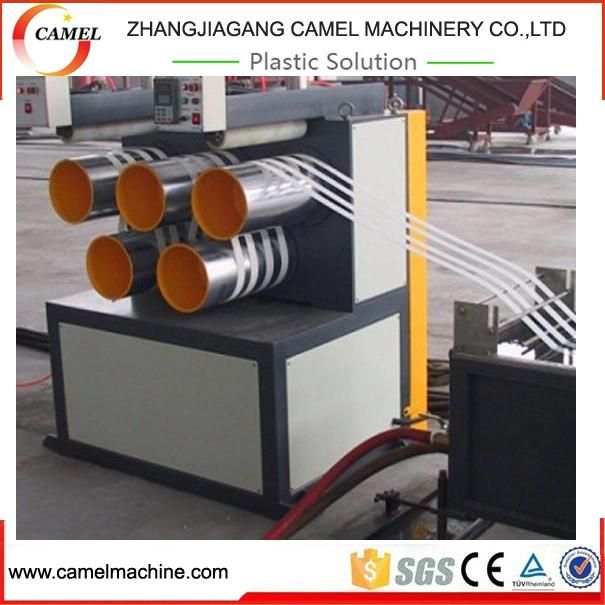

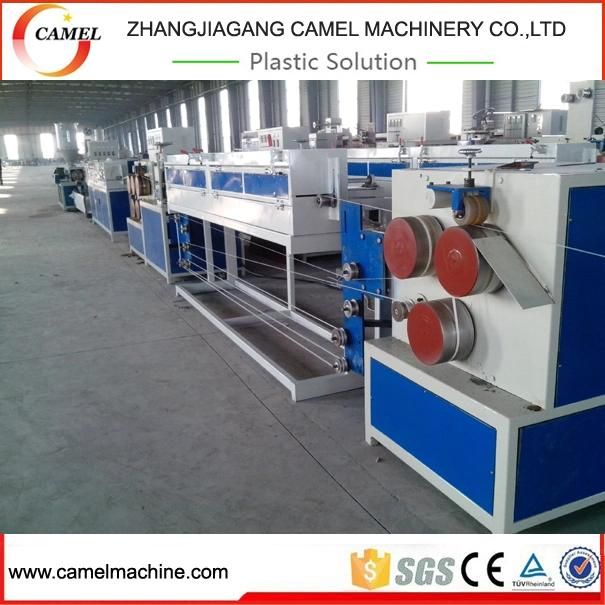

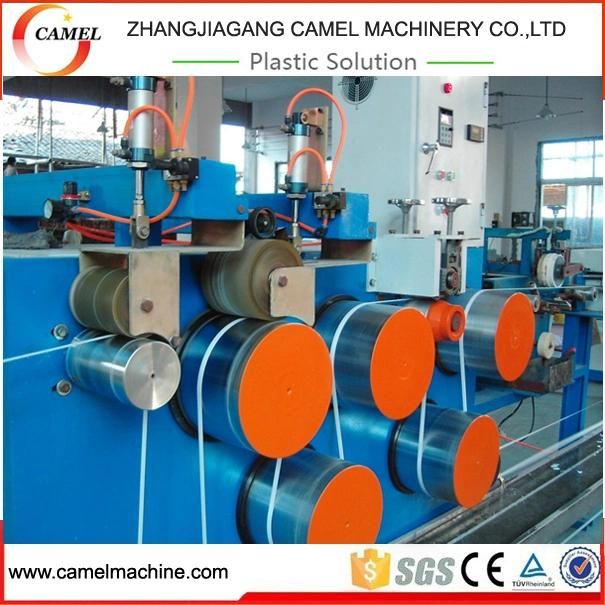

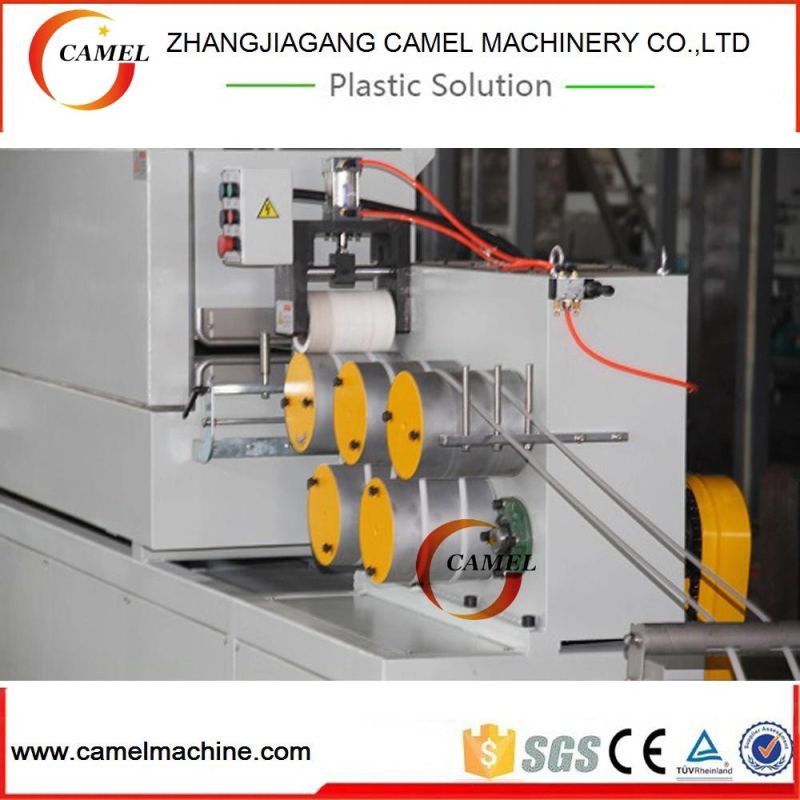

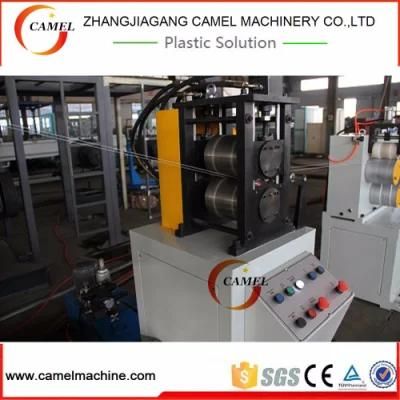

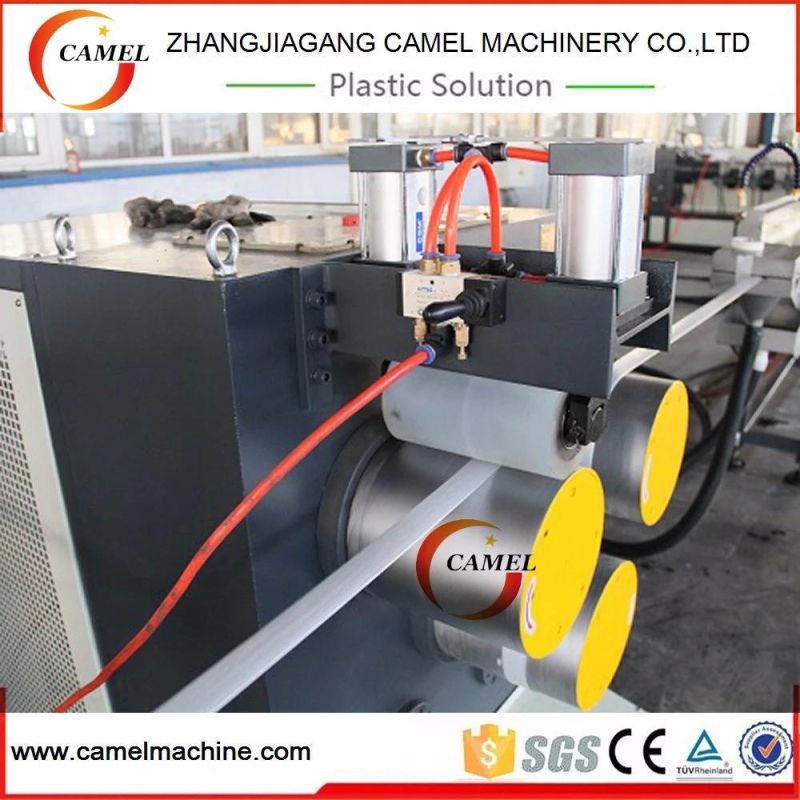

                        PP Strap Band Extrusion line  Packing Band Strap Belt machine

Overview of PP Strap Extruder

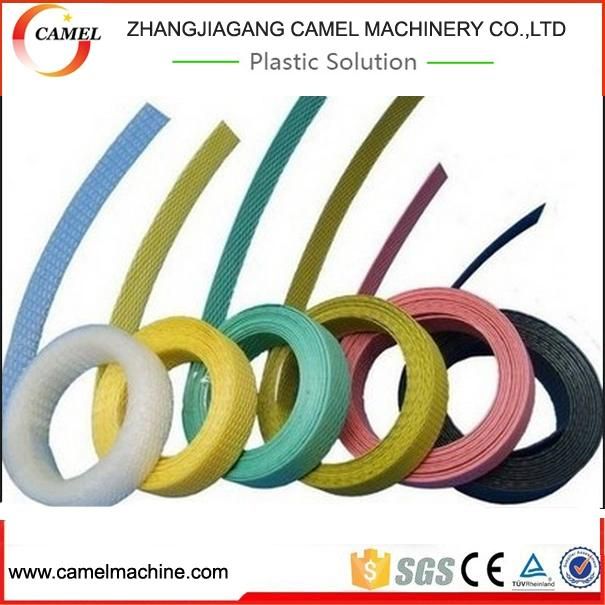

 PP packing belt use new/recycled PP flakes , because of its plasticity, fracture tensile strength, bending resistance, light weight, ease of use, etc., are processed into packaged strap, it has been widely applied in various fields.

Features of PP Strap Extruder
 Production Features:
1. comply with strict safety standards, precision manufacturing processes can make the life of the production line longer.
2. From the materials handling, extrusion, stretching, embossing, cooling and winding, every step to ensure the use of advanced manufacturing technology packaged with quality.
3. advanced operating system, you can control the entire production line through the touch screen.
The production speed of up to 120 m / min, low waste
4. The single, double bars, four, six can be arbitrarily chosen

  Main parameters of PP Strap Band Extrusion Machine

Width of strap	5-19mm
Producing speed	Max 120m/min
Extension ratio	4-6
Production capacity	40-200kg/h



FAQ
Q1:What about the payment terms?

A1:Always 30% down payment as deposit,70% balance pay before shipping.

Q2:What about the payment way?

A2:TT,L/C at sight or Alibaba trade assurance.

Q3:If you will send engineer coming to our factory to install and test the machines?

A3:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.

Q4:If you have CE,SGS,ISO certificate?

A4:Yes,except these,if you also need other certificates,we also can help to apply.

Q5:If we buy your machines, can you offer us wear-out spare pats?

A5:Yes,We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.

Q6:What is the voltage?
·A6 380V 50hz 3 phase or any other voltage according to client's requirement.
