• Model NO.：SJ-75,33
• Trademark：Jinfuxin
• Origin：Qingdao, China
• HS Code：84772090
• Production Capacity：100sets,Year

Basic Info.

Model NO. SJ-75/33 Trademark Jinfuxin Origin Qingdao, China HS Code 84772090 Production Capacity 100sets/Year

Product Description

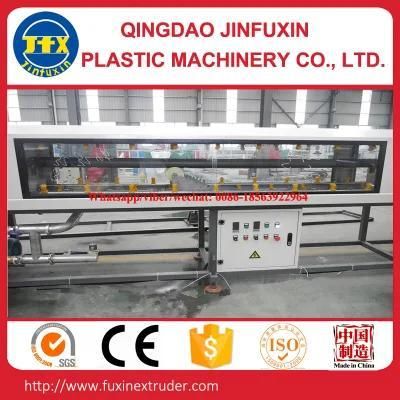

Pet Plastic Strapping Belt Extruding Machine

1). Single screw or twin screw technology for option according to the clients' requirements;
2). 100% recycled flakes can be used for production;
3). Both plasticization and stable extrusion with PLC automatic control for the full line;
4). The hydraulic fast screen changer can avoid dust into extrusion die and mould;
5). Single strap or twin straps for option according to the clients.

PET Strap Band Production Line / PET plastic packing strapping making machine / PET strap machine
Production Specification:
Processing material: 100% recycled PET flakes or virgin PET (I. V ≥ 0.65)
Product width: 9-25mm
Strap thickness: 0.5-1.3mm
Quantity of extruded straps band: 1 strap
Max output: 200kg/hr
Max Liner speed: 80m/min
Power supply: 380V/3P/50Hz
Installed power: 280KW (production power: About 130KW )
Operators: 2-3

Order	Name	Specification
1	Range of band width	9-25mm
2	Range of band thickness	0.5-1.3
3	Main Motor power	22kw
4	Max. output capacity	above 120kg/h
