Automatic PVC Window Screw Drilling and Fastening Machine/PVC Door Frame Screw Drilling ...

Jinan Hiwoc Group Co., Ltd.
  • Product Type：PVC Profile
  • Screw：Single-Screw
  • Automation：Automatic
  • Computerized：Non-Computerized
  • Certification：CE, ISO9001:2008
  • Customized：Customized

Base Info

  • Input Power：150W
  • Motor Speed：1000rpm
  • Drilling Height：25-120mm
  • Max Profile Width：120mm
  • Screw Diameter：3.0-5.0mm
  • Screw Length：11-19mm
  • Profile Step Depth：32mm
  • OEM：Support
  • Certificate：Ce,ISO
  • Warranty Time：2 Years

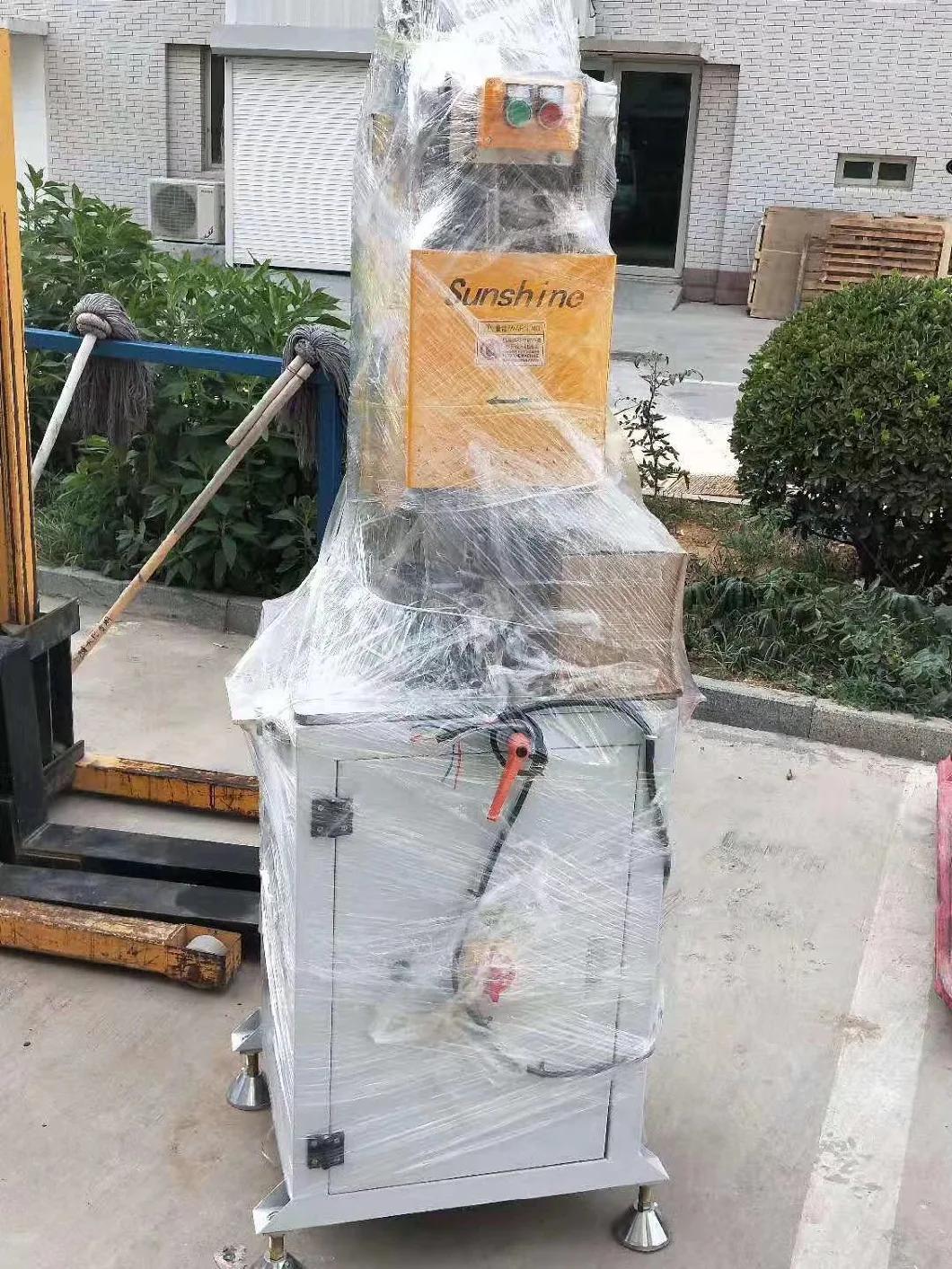

  • Transport Package：Plywood Case
  • Specification：1500× 550× 1500mm
  • Trademark：Hiwoc
  • Origin：China
  • Production Capacity：10000,Year

Description

Basic Info.

Input Power 150W Motor Speed 1000rpm Drilling Height 25-120mm Max Profile Width 120mm Screw Diameter 3.0-5.0mm Screw Length 11-19mm Profile Step Depth 32mm OEM Support Certificate Ce/ISO Warranty Time 2 Years Transport Package Plywood Case Specification 1500× 550× 1500mm Trademark Hiwoc Origin China Production Capacity 10000/Year

Product Description

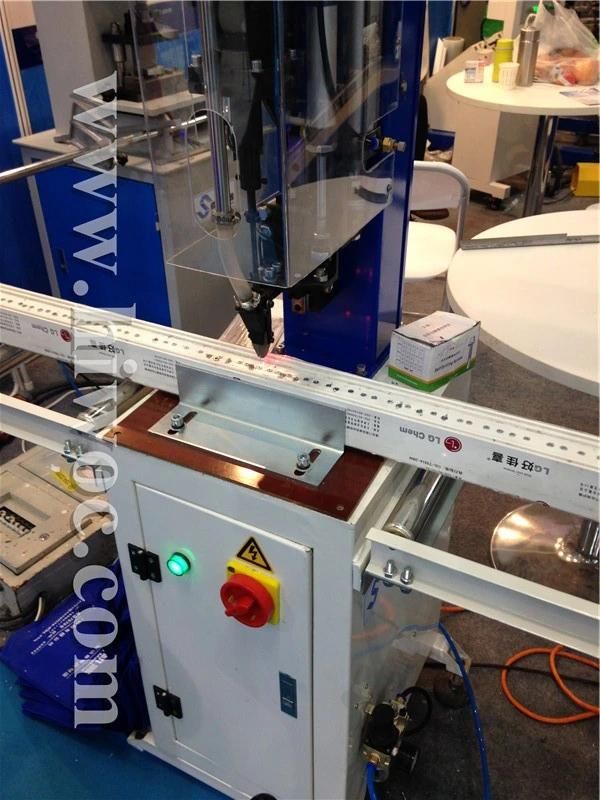

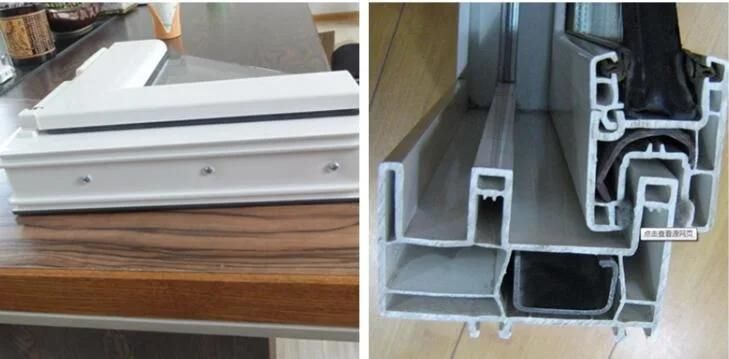

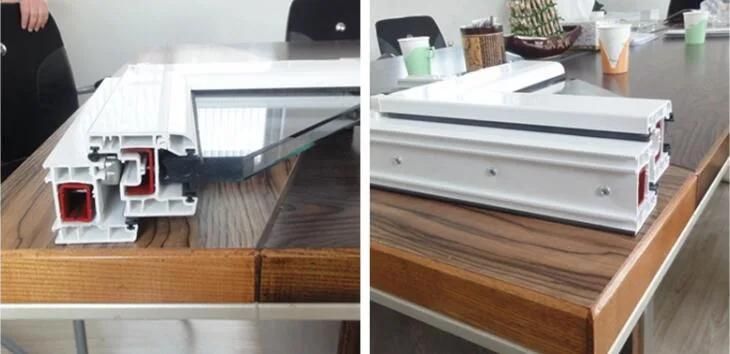

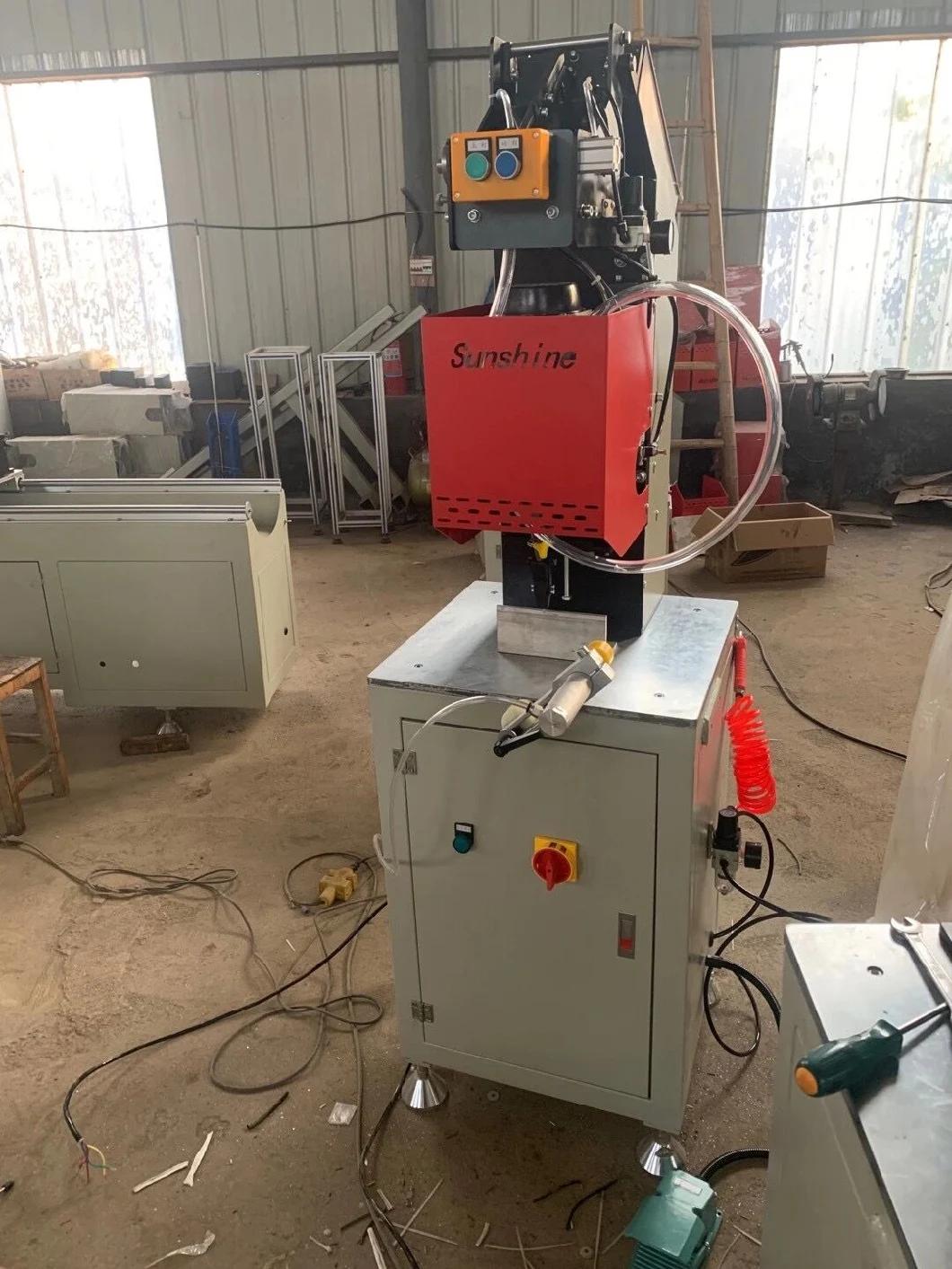

Automatic PVC Window Screw Drilling and Fastening Machine/PVC Door Frame Screw Drilling Machine/PVC Window Single Head Automatic Screw Drilling MachineAutomatic PVC Window Screw Drilling and Fastening Machine/PVC Door Frame Screw Drilling Machine/PVC Window Single Head Automatic Screw Drilling MachineAutomatic PVC Window Screw Drilling and Fastening Machine/PVC Door Frame Screw Drilling Machine/PVC Window Single Head Automatic Screw Drilling MachineAutomatic PVC Window Screw Drilling and Fastening Machine/PVC Door Frame Screw Drilling Machine/PVC Window Single Head Automatic Screw Drilling MachineAutomatic PVC Window Screw Drilling and Fastening Machine/PVC Door Frame Screw Drilling Machine/PVC Window Single Head Automatic Screw Drilling MachineUdes for joining and fixing the reinforcement and PVC profiles together.
Feature
1. Fix the reinforctment in pvc profile at one time, and no need to drill the screw hole firsly.
2. Strong torque design fit flexible.
3. Automatic screw filling system, and operated easily.
4. The space between the two screws canbe adjusted freely.
Parameter
Air Pressure0.6~0.8MPa
Input Voltage220V 50Hz or As Customer need
Input Power150W
Motor speed1000rpm
Drilling height 25-120mm
Max Profile width120mm
Screw Diameter3.0-5.0mm
Screw length 11-19mm
Profile step deepth32mm
Overall size1500×550×1500mm
Weight500kg

Main accessory
PLCTaiwan Delta
Solenoid valveGermany FESTO
CylinderPC(FESTO Joint Venture Brand)
MotorAnhui Sanyang (Best Chinese Motor Brand)
Air Filter DeviceSTNC
Electrical Button and SwitcherSchneider
AC Contactor and Circuit BreakerSchneider
Approach SwitchTaiwan Delta
Linear bearing systemLinear (South Korean brand)

Standard accessory
Cutters 4pcs
Air Gun1pc
Complete tooling1set
Certificate1pc
Operation Manual1pc
