High and Low Pressure PE Film Blowing Machine Plastic Glove Film Blowing Machine
Ruian Hoin Machinery Co., Ltd.- After-sales Service：Technical Support Online
- Warranty：One Year
- Type：PE Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：1200mm
- Screw Diameter：65mm
Base Info
- Model NO.：FB-B-600
- Automation：Non-Automatic
- Computerized：Computerized
- Machine Weight：8T
- Certification：CE, ISO9001:2008
- Certificate：CE, ISO9001
- Guarantee：One Year
- Factory Manufacture：Ruian, Zhejiang, China
- Film Width：600-3000mm
- Output：40-70kg,H
- Transport Package：Stretch Film or Wooden Case
- Specification：CE, ISO9001 certificate
- Trademark：HOIN
- Origin：Ruian, Zhejiang, China
- HS Code：847730000
- Production Capacity：30 Set,Month
Description
Main Technical VariablesModel FB-B-600 FB-B- 800 FB-B- 1000 FB-B- 1200 Screw diameter(mm) Φ50mm Φ55mm Φ60mm Φ65mm Screw L/D Ratio L/D28:1 L/D28:1 L/D28:1 L/D28:1 Screw rotation 10-100r/min 10-100r/min 10-100r/min 10-100r/min Power of main motor 11kw 15kw 18.5kw 22kw Max.Extrude Output 35kg/h 50kg/h 65kg/h 76kg/h Single-face Thickess of film 0.006-0.10mm 0.006-0.10mm 0.006-0.10mm 0.006-0.10mm Max Film Folding Dia. 600mm 800mm 1000mm 1200mm Total Power 18kw 22kw 28kw 32kw Machine of weight 2800kg 3200kg 3800kg 4600kg Overall Dimension(L×W×H) 4200×1800×3600mm 4400×2000×3800mm 4600×2300×4500mm 4800×2500×4800mm

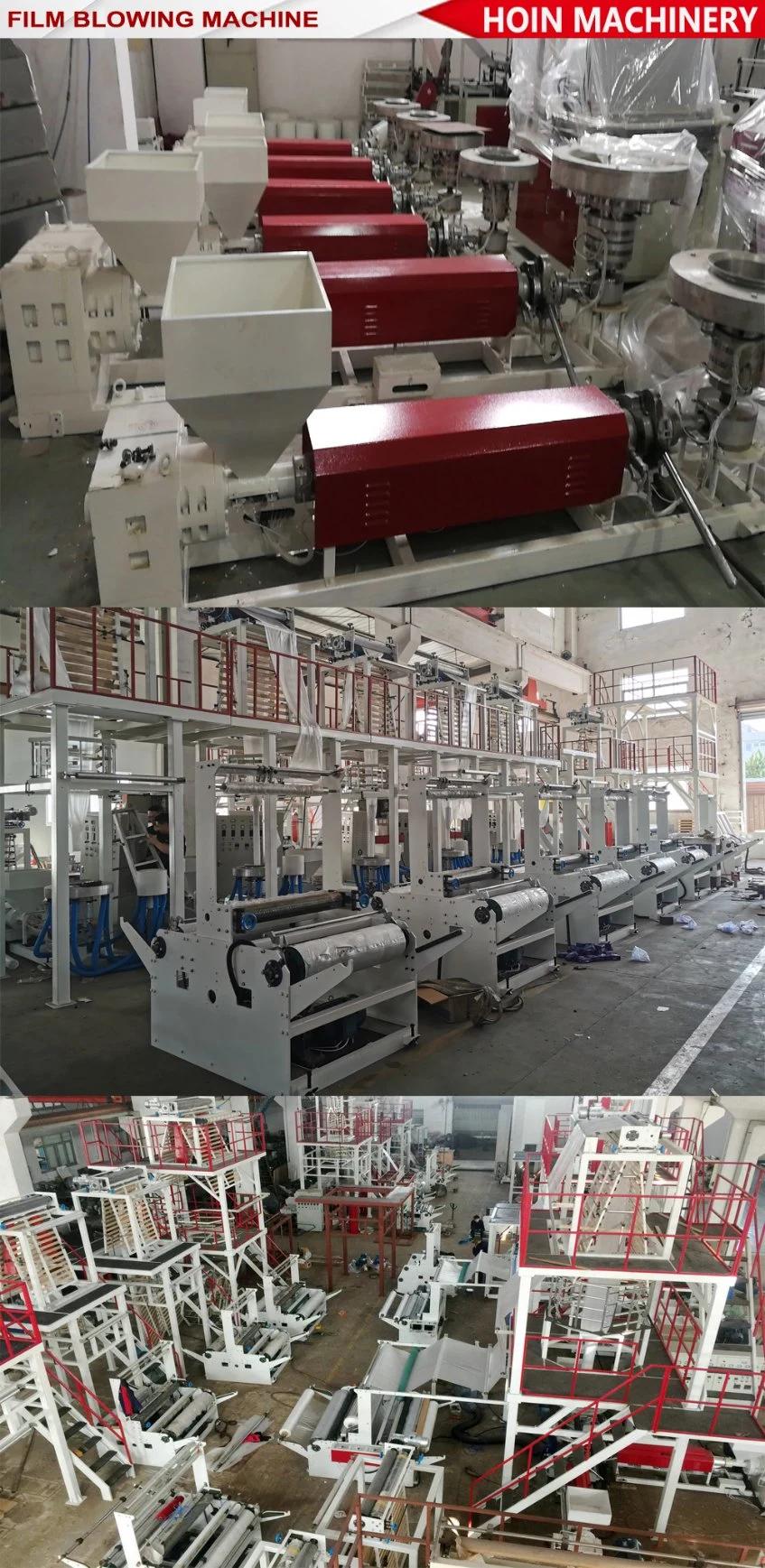

4. Machine Pictures for Reference:
5. Workshop of HOIN
6. More Products Optional:
7.After Service of HOIN:
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USD per day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We will still offer you our best after service, and need you to afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
| 1. | filter | 1 M | 8. | electric -testing pen | 1 pcs |
| 2. | magetic stone | 1 pcs | 9. | hexageonic wrench | 1 pcs |
| 3. | air pipe | 1 pcs | 10. | glove | 2 pairs |
| 4. | 8-10 open and wrench | 1 pcs | 11. | Steady Bar | 1 pcs |
| 5. | 12-14 open and wrench | 1 pcs | 12. | Mould Pipe | 1 pcs |
| 6. | 14-17 open and wrench | 1 pcs | 13. | electric-thermal couple (E) | 2 pcs |
| 7. | 17-19open and wrench | 1 pcs | 14. | screw heater(stainless steel) | 1 pcs |
5. Workshop of HOIN6. More Products Optional:7.After Service of HOIN:1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USD per day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We will still offer you our best after service, and need you to afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
Any query please feel freely to contact with us!
