PVC/UPVC/WPC Window and Door Frame Wood Plastic Composite Profile Making Machine ...
Qingdao Tongsan Plastic Machinery Co., Ltd.- After-sales Service：Engineer Oversea Service
- Warranty：12 Months
- Type：Profile Extruder
- Plastic Processed：PVC,UPVC,WPC
- Product Type：Profile Extrusion Molding Machine
- Feeding Mode：One Feed
Base Info
- Model NO.：SJSZ-65,132
- Assembly Structure：Integral Type Extruder
- Screw：Twin-Screw
- Engagement System：Full Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Exhaust
- Automation：Automatic
- Computerized：Computerized
- Main Motor Power：37kw
- Extrusion Capacity：180kg,H
- Motor Brand：Siemens
- Inventer：ABB
- Contactor：Schneider
- Temperature Controller：Omron
- Transport Package：as Exported Standard
- Specification：10T
- Trademark：Qingdao Tongsan
- Origin：China
- HS Code：84772090
- Production Capacity：100 Sets One Year
Description

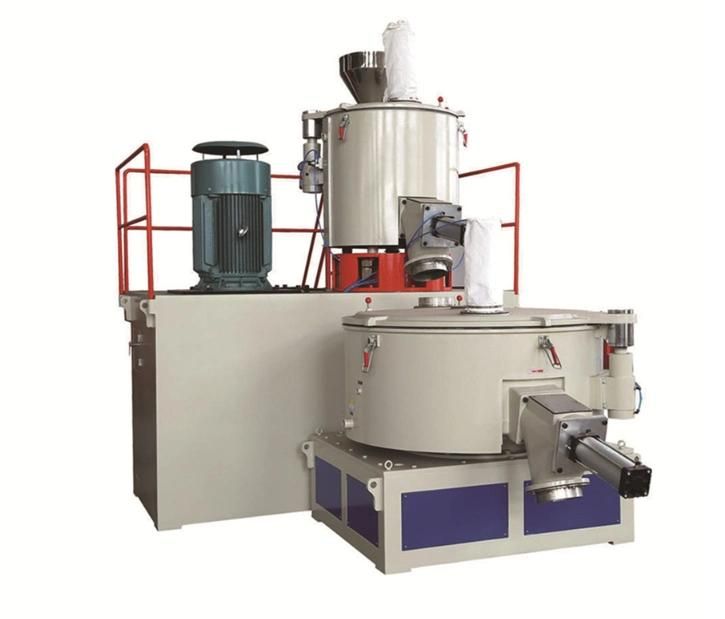

Wood Plastic Mixer
SHR series Plastic mixer is suitable for mixing,drying and coloring PVC/WPC etc material.
Model
| Model | SRL200/500 | SRL-300/600 | SRL-500/1000 | SRL-800/1600 | SRL-1000/2000 |
| Total volume | 200/500 | 300/600 | 500/1000 | 800/1600 | 1000/2000 |
| Effective volume | 120/300 | 180/360 | 300/600 | 480/1000 | 600/1200 |
| Mixing time | 8-15min | 8-15min | 8-15min | 8-15min | 8-15min |
| Cooling time | 10-15min | 10-15min | 10-15min | 12-18min | 12-18 |
| Hot mixer motor power | 30/42kw | 40/55kw | 47-67kw | 90KW | 110kw |
WPC door making processing machines This WPC door manufacturing process machine is used for making WPC door panels from PVC and wood powder, the WPC hollow panel can be used either inner and outer door panel, partition, windowsill etc.it centralizes the characters of both plastic and wood, and also overcomes the shortage of wood, such as water -proof, corrosion resisting, anti-moth, anti-aging, static-free, and flame retarded.
PVC door panel making machine UPVC door sheet machine WPC door production line
This WPC PVC door production line is applicable to the continuous extruding of WPC/PVC door panel, clapboard 'elbow board. Proper double screw extruder, specially used for extruding wood plastic products, should be chosen in accordance with the panel section, application, and product specific gravity. Also the corresponding auxiliary machines such as vacuum calibrating platform, hauling off machine, cutting off machine, material reversing platform,etc. are equipped. Products of diversified specification can be produced with different dies.
