POF 5 Layers Co-Extrusion Heat Shrinkable Film Blowing Machine

Xiongqiu Plastic Machinery Co., Ltd.
  • Type：POF Film Blowing Machine
  • Raw Material：PP,LDPE,PE
  • Maximum Folding Width of Film：2000mm
  • Screw Diameter：65mm*5
  • Automation：Automatic & Manual
  • Computerized：Computerized

Base Info

  • Model NO.：FMF-2200
  • Machine Weight：12T
  • Certification：CE, ISO9001:2008
  • Layers：5 Layers
  • Machine Size：L*W*H: 14m * 8m * 15m
  • Transport Package：Plastic Film or Container
  • Specification：5 layers
  • Trademark：Xiongqiu Plastic Machinery Co., Ltd.
  • Origin：Foshan, Guangdong Province
  • HS Code：8477300000

Description

5 layerssuitable materialPP / LDPE / PEmax film width1300mm1600mm1800mm2000mmthickness0.012--0.03mmmax output100kg/h130kg/h150kg/h170kg/hscrew diameterΦ45mm*5Φ50mm*5Φ55mm*5Φ65mm*5L/D ratio30:1screw max speed5--80r/minwinder diameterΦ600mm120m/mingeneral power260kw300kw320kw350kwdimensions
(L*W*H)10m*5.8m*9.5m10m*5.8m*10.5m12m*6.6m*14.5m14m*8m*15mfive extruder

POF 5 Layers Co-Extrusion Heat Shrinkable Film Blowing Machine

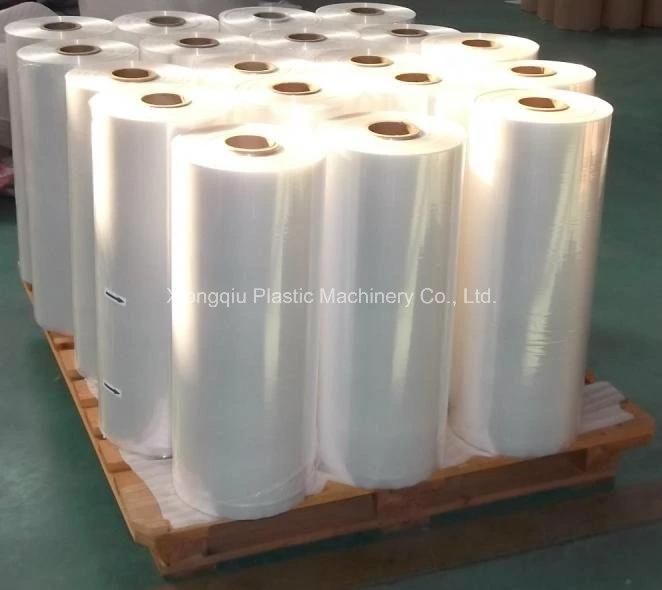

material  film
