Plastic Injection Moulding Machine Manufacturers
Zhangjiagang Dawson Machine Co., Ltd.- Type：Injection Blow Molding
- Structure：Vertical and Horizontal Composite
- Plastic Type：Thermoplastic
- Plasticizing Way：Screw Type
- Clamping Way：Hydraulic
- Automation：Automatic
Base Info

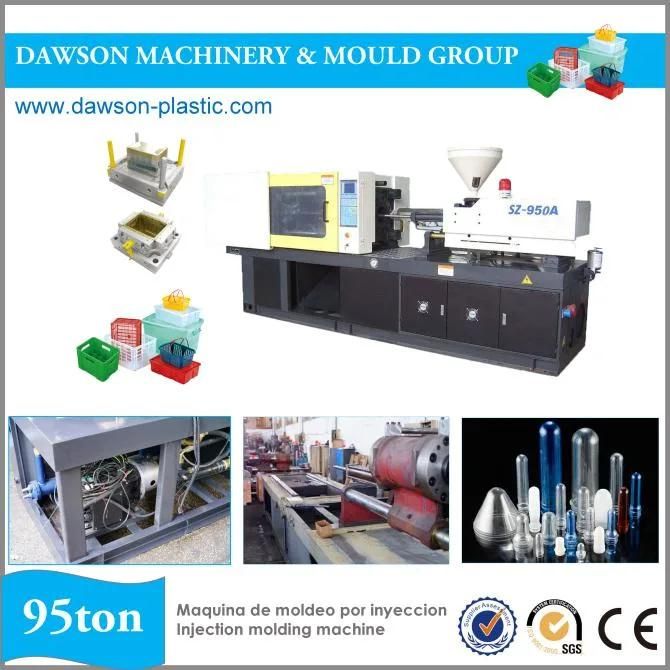

- Model NO.：SZ-950A
- Computerized：Computerized
- Certification：CE, ISO9001:2008, GMP
- Screw Stroke：160mm
- Screw Speed：0-260rpm
- Screw Torque：510 N.M
- Heating Power：7.3kw
- Clamping Force：950kn
- Opening Stroke：340mm
- Mould Height：135-380mm
- Space Between Tie Bars：360*360mm
- Ejector Force/Stroke：25.4,85
- Oil Pump Motor：11kw
- Machine Size：4.25×1.2×1.8m
- Company Attribute：Manufacturer
- Delivery Days：55 Days
- Voltage：Customer Specified
- After-Sales Service：Engineers Available to Service Machinery Overseas
- Transport Package：Nude Package,as Customers Request
- Specification：SZ-950A
- Trademark：DAWSON
- Origin：Zhangjiagang Jiangsu
- HS Code：8477101010
- Production Capacity：30 Sets Per Month
Description
160Screw Speed rpm 0-260 Screw torque N.m 510 Heating power kw 7.3 Clamping force ton 95 Opening stroke mm 340 Mould height mm 135~380 Space between tie bars mm 360×360 Ejector force/stroke KN/mm 25.4/80 Oil pump motor kw 11 Machine Size m 4.25×1.2×1.8 Packing size m 4.5×1.3×2.1 Machine weight ton 3
Advantages of small injection molding machine
1 HIGH LOAD OIL BEARING
The movable part of machine hinge and sliding adopt oil-bearing, decrease the use of lubricating oil, reduce maintenance costs and reduce oil to enhance the clean lines of the machine.
2 SYNCHRONOUS HYDRAULIC PRECISION MOULD ADJUSTMENT MECHANISMS
Hydraulic motor, the center location of gear module mould adjustment system, enable the mold adjustment system more perfect.
3 INTELLIGENT DISPLACEMENT DISTRIBUTION OF LUBRICATION SYSTEM
Intelligent displacement oil distribution system, equal distribution of oil and high efficiency of lubrication, extension the life of the reamer.
4 DESIGN AND RESERVE LARGE AUXILIARY SPARE SPACE.
Convenience of the circuit connection for the precision mold of electricity, gas, water oil and configuration flexible delivery device.
5 ADJUSTABLE JUNIOR WARE-RESISTING FEET SLIP
Adjust special polymer wear-resisting materials containing flattering feet, adjustable height, balance weight, durable, and clean.
