• Model NO.：WS005
• Customized：Customized
• Certification：CE, ISO9001:2008, UL
• Condition：New
• Electric Parts：ABB,Omron,Siemens,Schneider
• Color：Customizable
• Motor：Wn
• Delivery Time：25 Days
• Voltage：380V,50Hz or Other
• Gurantee：1 Year
• Transport Package：Seaworthy Packing
• Specification：100-500kg,h
• Trademark：WINSOAR
• Origin：China
• HS Code：8477201000
• Production Capacity：1000sets,Year

Basic Info.

Model NO. WS005 Customized Customized Certification CE, ISO9001:2008, UL Condition New Electric Parts ABB/Omron/Siemens/Schneider Color Customizable Motor Wn Delivery Time 25 Days Voltage 380V/50Hz or Other Gurantee 1 Year Transport Package Seaworthy Packing Specification 100-500kg/h Trademark WINSOAR Origin China HS Code 8477201000 Production Capacity 1000sets/Year

Product Description

HIGH EFFICIENCY WATER RING PELLETIZING LINE

Description of high efficiency water ring pelletizing line:

1. The line is special equipment for the PE PP film recycling granulating, it equipped with compactor machine which could pre- compact the film into smaller granules, then easily feed into screw barrel of extruder, ensure high capacity and save labor.  2. It has two vacuum exhausting mouth on extruder barrel which can fully vent the moisture in the material and the final granule quality will be very perfect.  3. At the end of screw barrel, it equipped with double post fast speed hydraulic non -stop screen changer which can effectively filter out the dirty in the plastic melt.  4. The pelletizing adopts water flush pelletizing which is easier to operate, and the shape and appearance of granule is good. Application raw materials: PE, PP, BOPP, HDPE, LDPE, LLDPE, ABS, EPE, EPS, XPS, Stretch film, Non woven fabric, Woven bags, etc.

Technical parameters of high efficiency water ring pelletizing line:

Item/Model SJ70 SJ100 SJ130 SJ180 Screw Diameter (mm) 70 100 130 180 L/D ratio 25-42 25-42 25-33 25-33 Output (kg/h) 120-180 250-350 400-500 800-1000 Machines configuration: Machines List Quantity 1. Belt conveyer with metal detector 1 set 2. Single screw extruder with compactor 1 set 3. Hydraulic filter exchanger 1 set 4. Watering system 1 set 5. Water flume 1 set 6. Dewatering machine 1 set 7. Cooling system 1 set

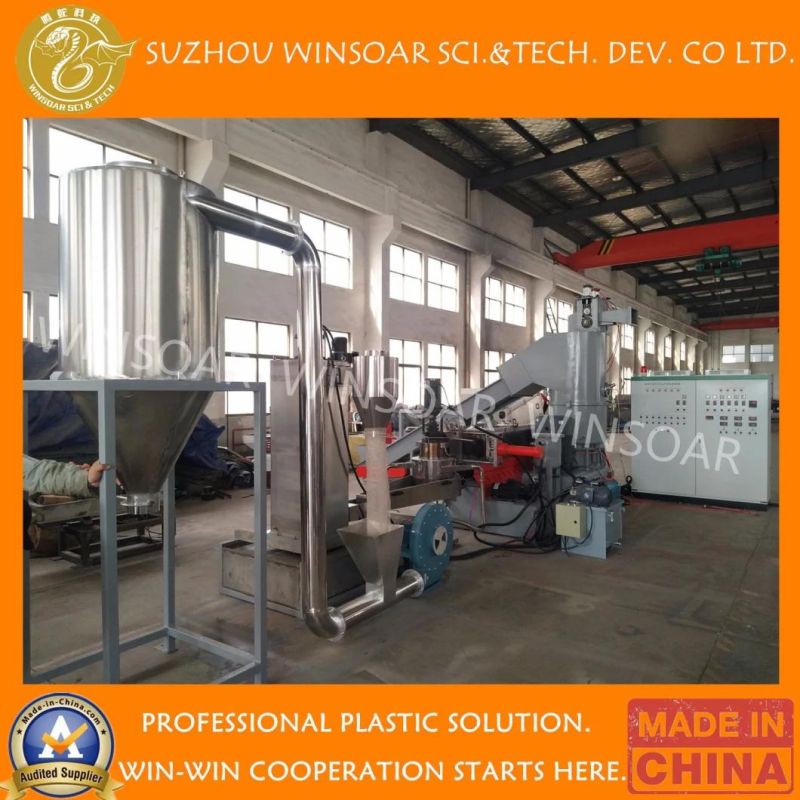

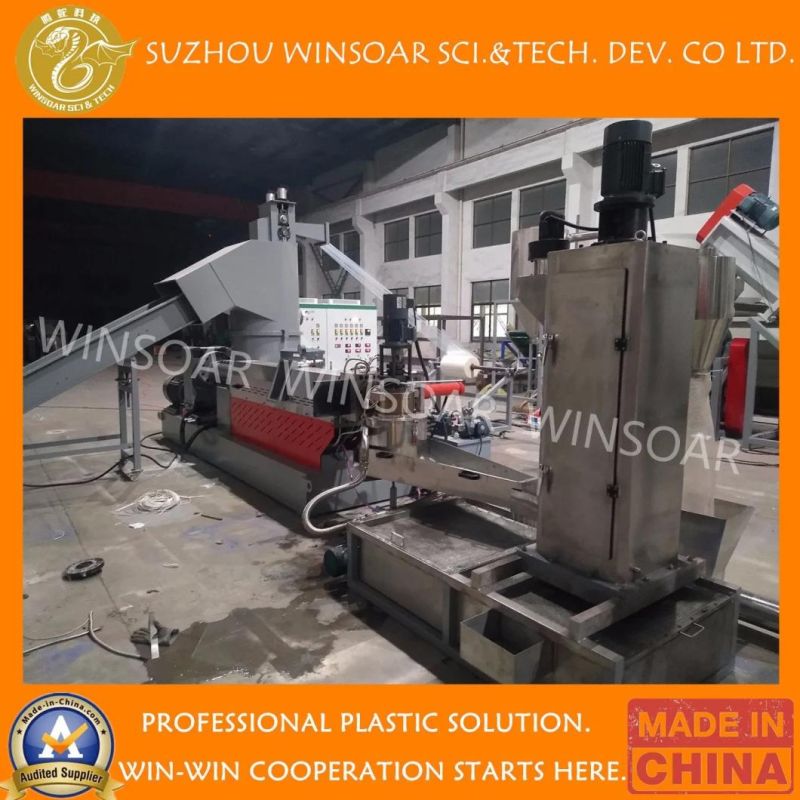

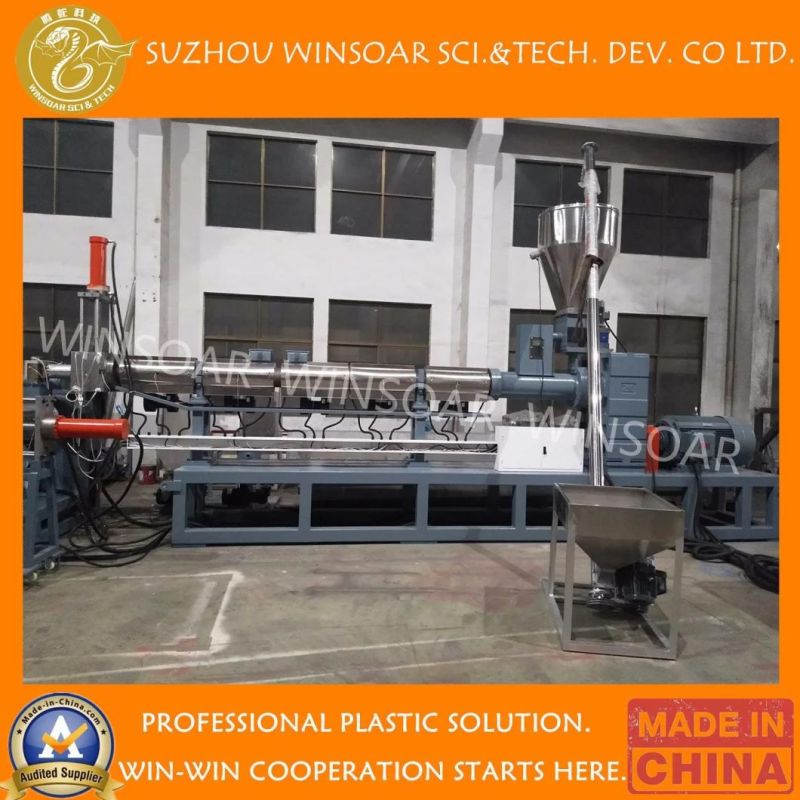

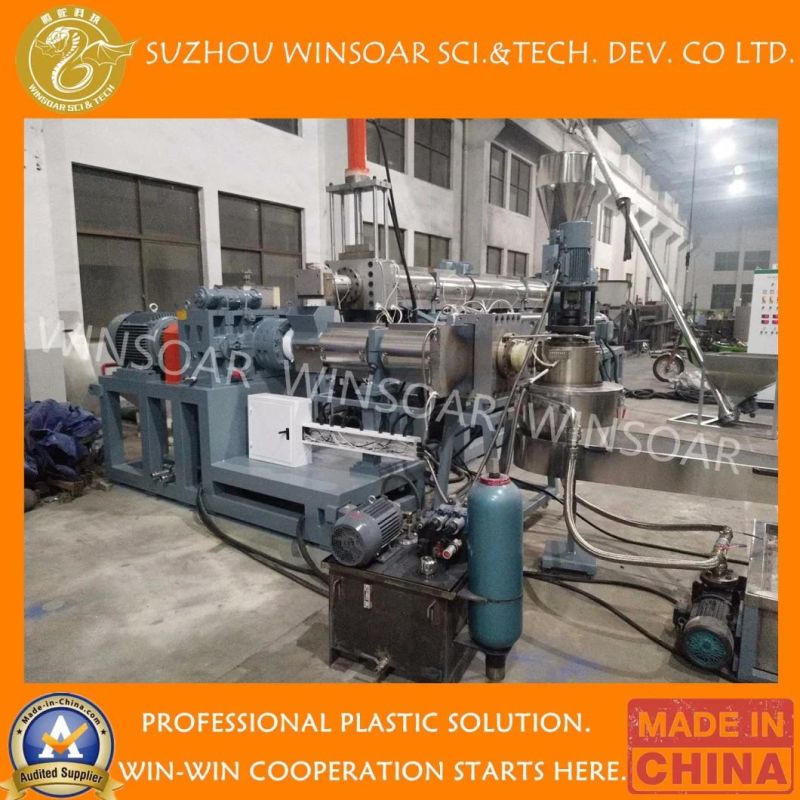

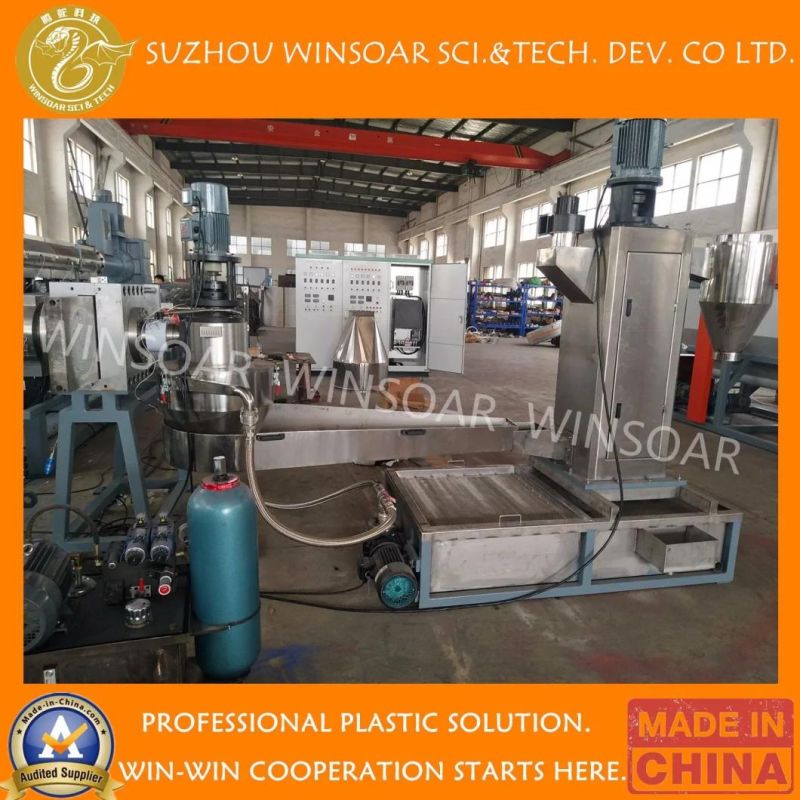

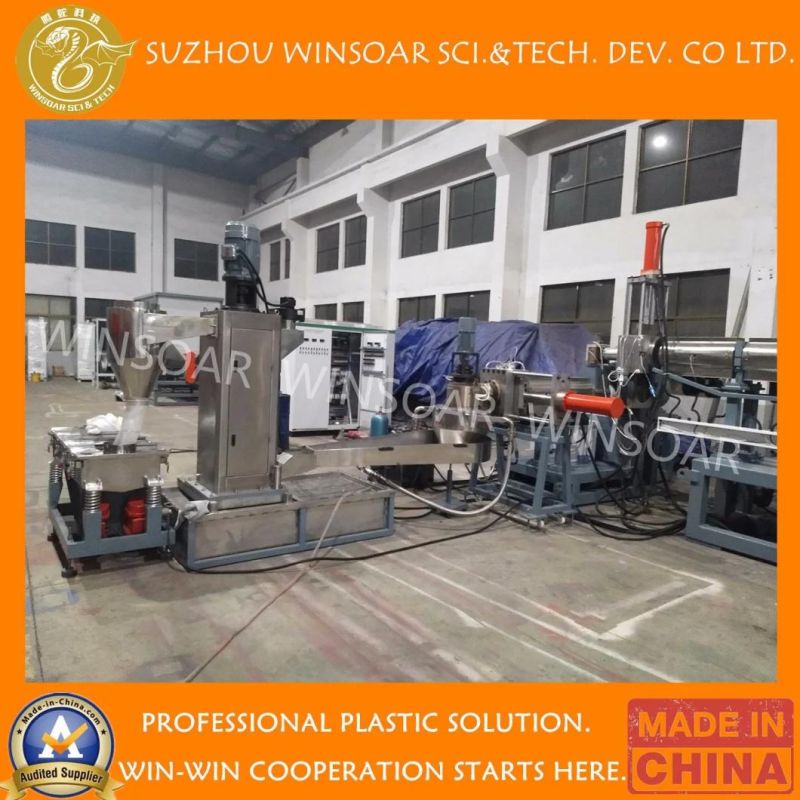

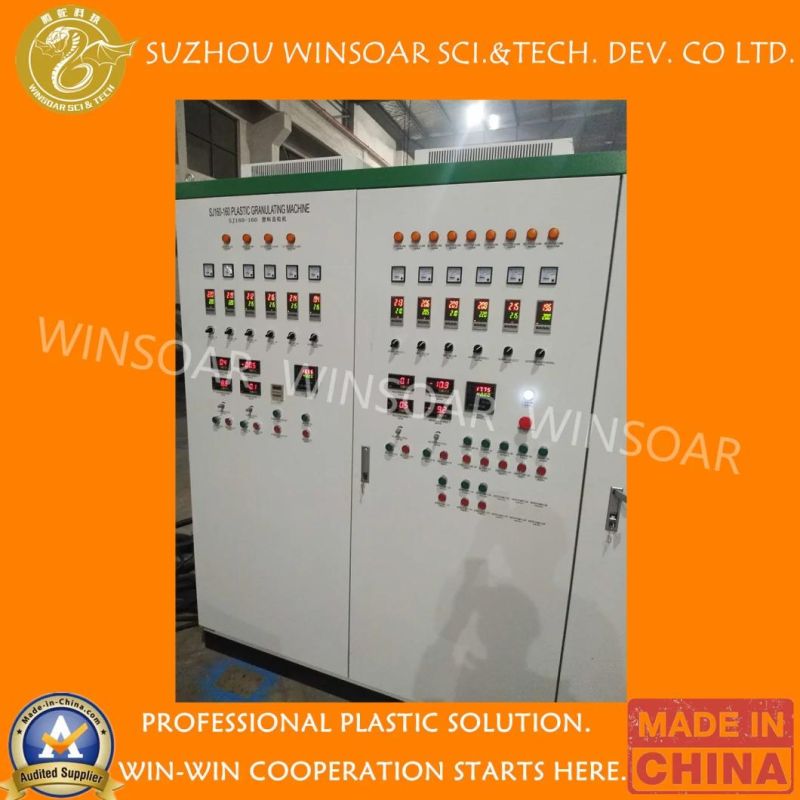

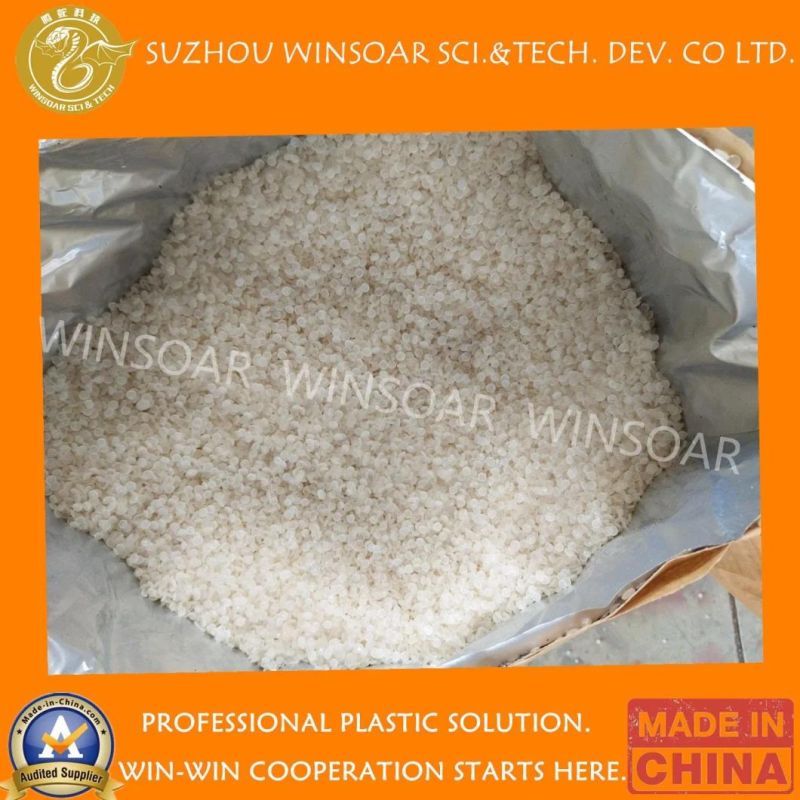

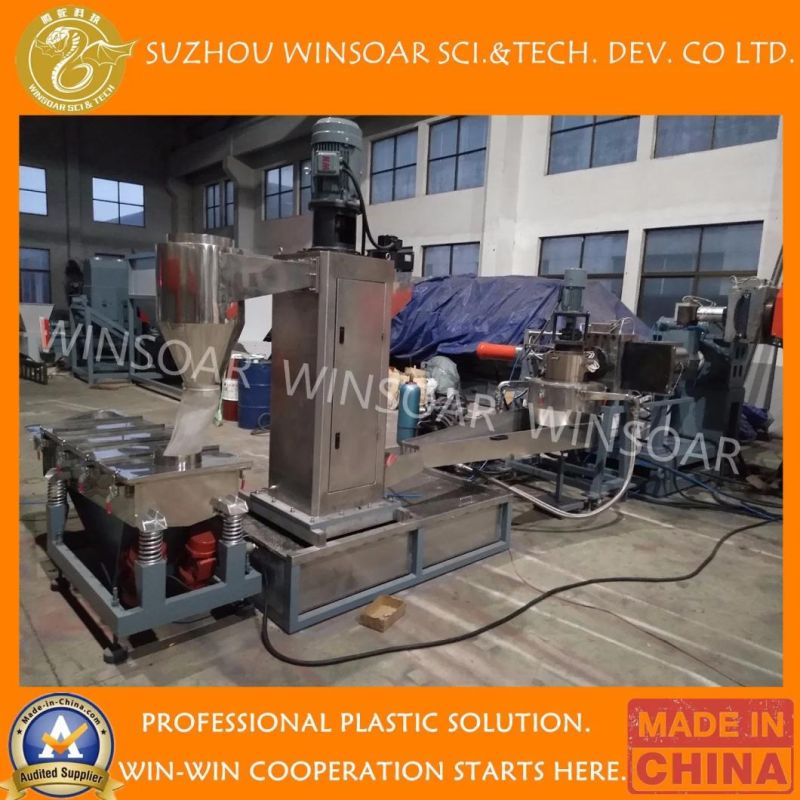

Pictures of high efficiency water ring pelletizing line:



Shipment and delivery:
