High Quality Three Layers High Quality PVC Pipe Extrusion Line

Jiangsu Faygo Union Machinery Co., Ltd.
  • Type：Pipe Extruder
  • Plastic Processed：PVC
  • Product Type：Extrusion Molding Machine
  • Feeding Mode：One Feed
  • Assembly Structure：Separate Type Extruder
  • Screw：Twin-Screw

Base Info

  • Model NO.：SJ 65
  • Engagement System：Full Intermeshing
  • Screw Channel Structure：Deep Screw
  • Exhaust：Exhaust
  • Automation：Automatic
  • Computerized：Computerized
  • Name：High Quality PVC Pipe Plastic Extruder Machine
  • Motor：Siemens
  • Gear Box：Deling
  • Screw&Barrel：38crmoala
  • Contactor：Siemens
  • Inverter：ABB
  • Heating Way：Foundry Aluminum Heater
  • Cooling Way：Recycling Water
  • Temperature-Controlled：Omron
  • Quality：High
  • Transport Package：PE Film Packaging
  • Specification：CE, SGS, ISO
  • Trademark：Faygo Union
  • Origin：Zhangjiagang City, Jiangsu Province, China
  • HS Code：84772090
  • Production Capacity：50 Per Year

Description

ItemSJSZ-45SJSZ-51SJSZ-55SJSZ-65SJSZ-80SJSZ-92Diameter of screw(mm)45/9051/10555/11365/13280/15692/188Number of screw(mm)222222Direction of screwsScrew rotation direction/////Screw rotation speed(rpm)1-451-45401-351-371-33Effective length of screw(mm)98510701200144018002500Power of Main engine(kw)1518.522/30375590Barrel heating power(kw)121818243686.8Production capacity(kg/h)12080-150150-180250-300320-400600-800Center height(mm)100010001000100010001200Net weight(kg)280032003500400050008000Dimensions(mm)(L*W*H*)3300*1200*21003600*1100*21003600*1100*21004235*1520*24504750*1550*24606725*1550*2841

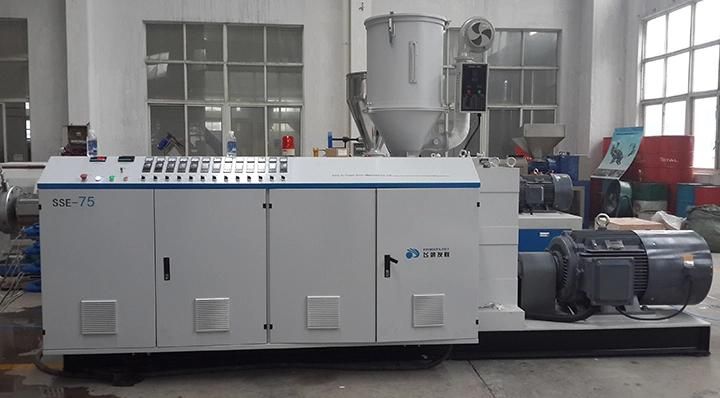

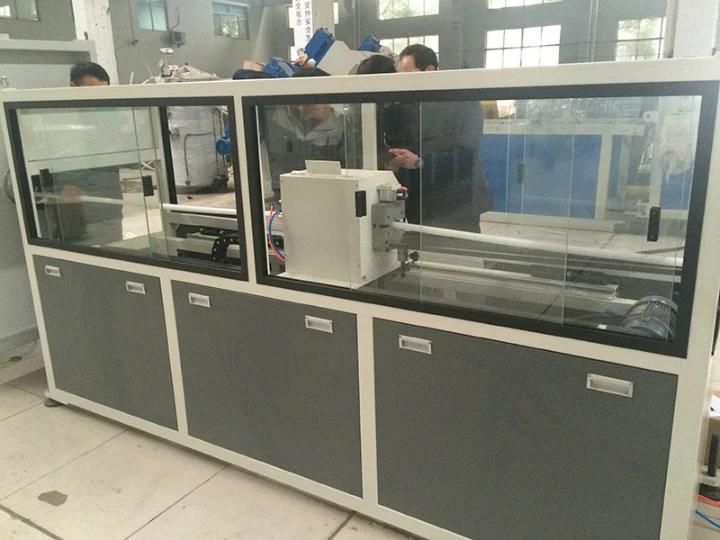

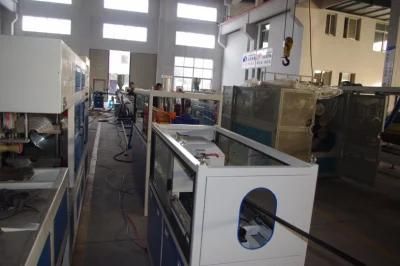

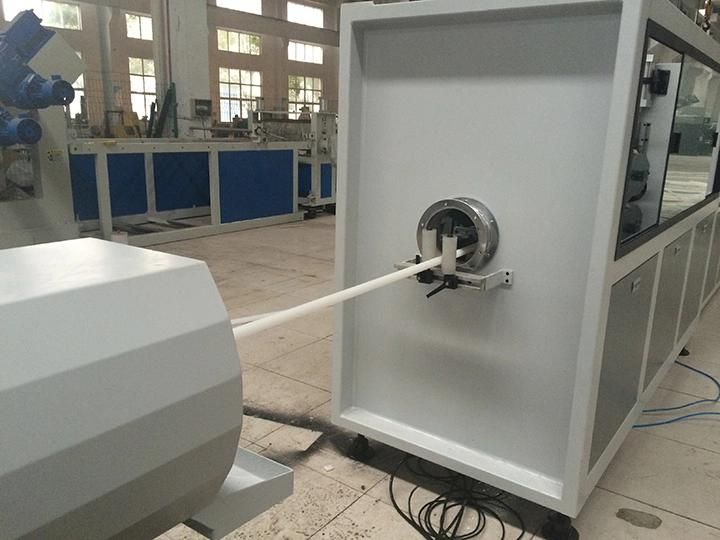

Photo of this line:
High Quality Three Layers High Quality PVC Pipe Extrusion Line
High Quality Three Layers High Quality PVC Pipe Extrusion Line
High Quality Three Layers High Quality PVC Pipe Extrusion Line
High Quality Three Layers PVC Pipe Extrusion Line
