• Model NO.：HY-660
• Processing Type：Plastic Thermoforming Machine
• Product Type：Plastic Packaging
• Max Forming Depth：220mm
• Max Forming Area：850*450mm
• Place of Origin：Zhejiang China (Mainland)
• Voltage：380V 50,60Hz
• Dimension(L*W*H)：4560*1700*2500mm
• Warranty：1 Year
• Transport Package：Wooden
• Specification：CE
• Trademark：HongYin
• Origin：Zhejiang China
• HS Code：8477409000
• Production Capacity：10 Sets,Month

I. Main Technical Parameter1, Power Supply380V/3P/50HZ2, MaterialPP/PS/PET/PVC/PLA plastic thermoforming sheet3, Driving MethodServo Linkage control system4, Forming Area850*450mm5, Sheet Thickness0.2~2.0mm6, Max forming depth≤220mm7, Forming Speed≤35cycles/min8, Air Pressure0.6~0.8Mpa9, Air Consumption2400L/min10, Machine Dimension4560*1700*2500mm11, Total power≤120kw12. Weight8500kgII. Leftover material rewinder:Automatic rewinder device, 1 setIII. Auto loader1. Reduction drive:0.55 KW motor  1 Set2. Pneumatic pressure:Air cylinder SC50 X 252 Sets3. Pneumatic feeder:Air cylinder SU80 X 4002 Sets4. Photoelectric sensor:FOTEK, TAIWAN IV. Electrical control cabinet1. Whole control system1 Set2. PLC:SIEMENS, GERMANY3. TOUCHSCREENKUNLUNTONGTAI, 10.2CUN, TAIWAN4. Temperature controller:Azbil brand5. Regulating moduleChina6. Proximity switchSCHNEIDER, FRANCE7. Intermediate relaySCHNEIDER, FRANCE8. ContactorSCHNEIDER, FRANCE9. Button SwitchSCHNEIDER, FRANCEV. SERVO  Structure part 1.Servo clampServo motor: 15kw      Yaskawa, Japan2.Servo PlugServo motor: 7.5kw      Yaskawa, Japan3. Servo FeedServo motor: 4.4kw      Yaskawa, JapanVI. Main pneumatic components Forming valveVG342-5G-10A     2pcs      SMCBlow valveVXD2140-04-5G1   1pcs      SMCCooling valveVXD2140-04-5G1   1pcs      SMC
IV. Cup Machine Picture show

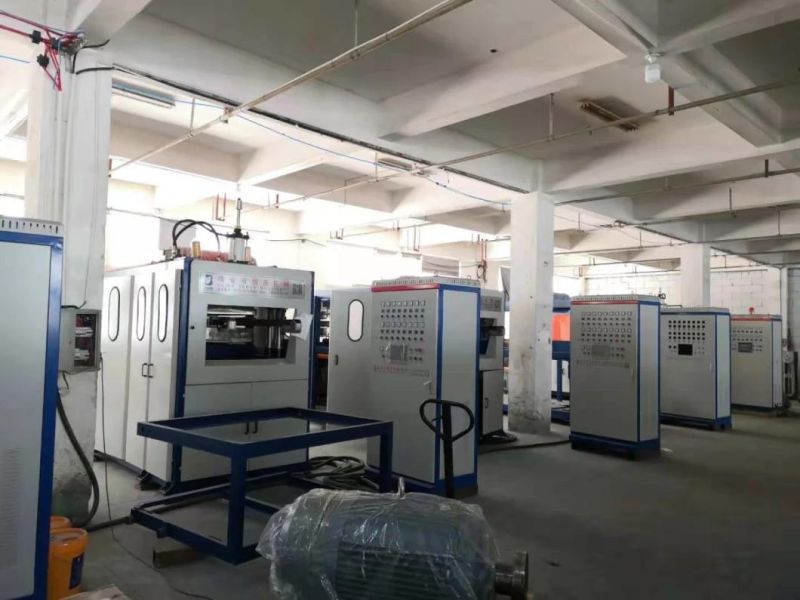

1. Main machine in the workshop: it can delivery within 35 days after receiving the deposit.

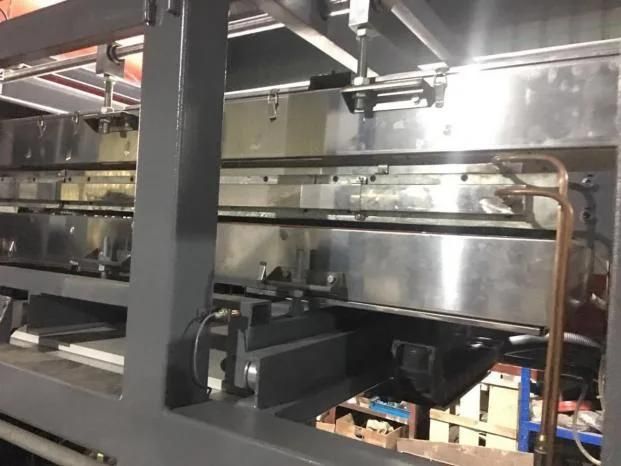

2. Driving system

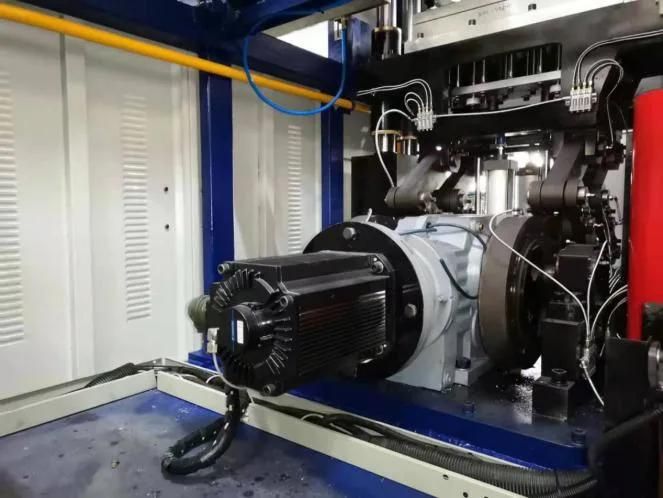

3. Driving system

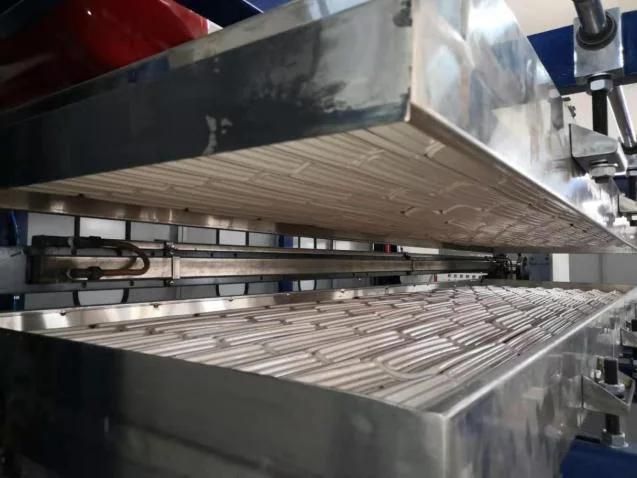

4. Heating oven

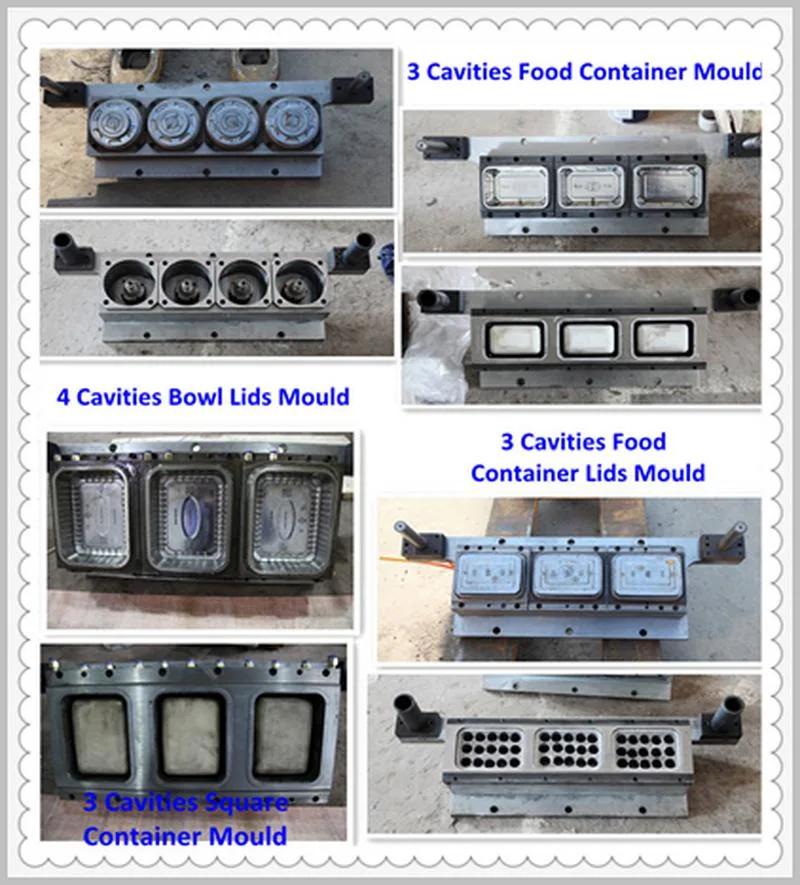

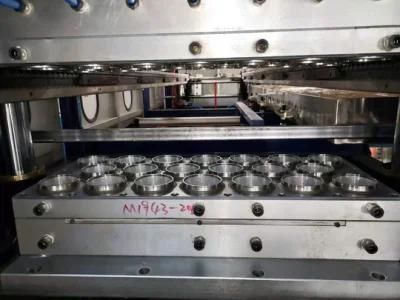

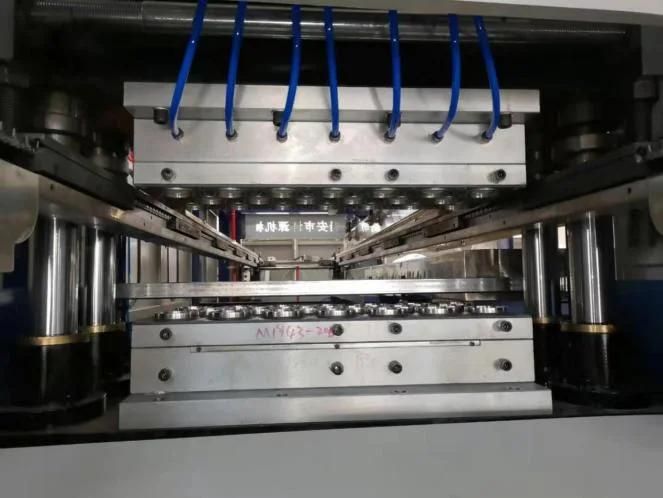

5. The mold picture: the machine uses different mold producing different products

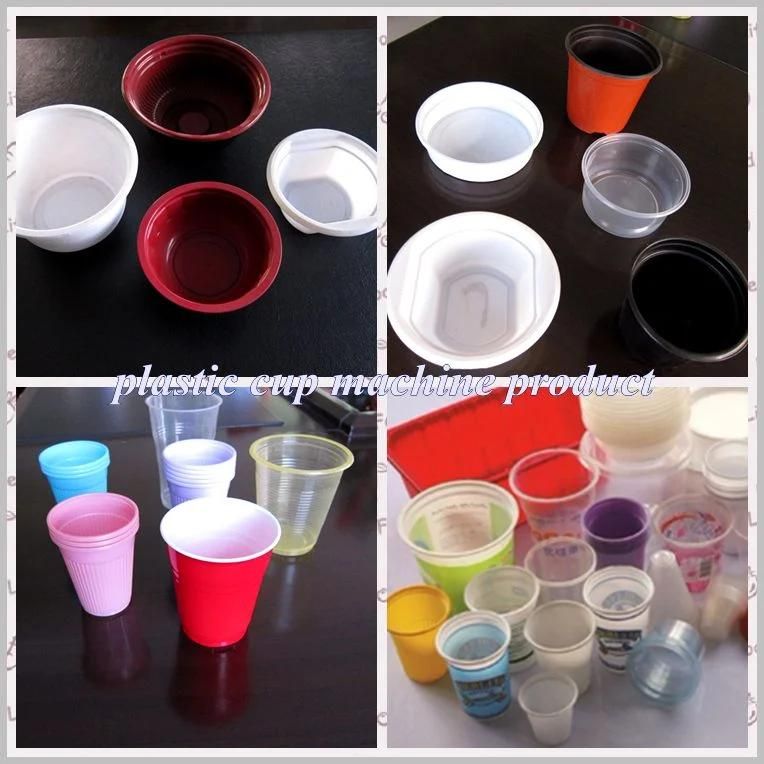

Samples


V. About Ruian Hongyin Machinery Co., Ltd Service.
1. Purchase Service
Our Company has a specialize and efficiency working team. If you are new in the printing and packing area, Some samples of your products could be shew to us will be appreciated, we will give you a specialized suggestion of whole work.

2. Installation Service:
we will assign 1 technician to coordinate installation, commissioning and training, the cost for a return flight and suitable accommodation will be charged, and the allowance is USD 80-100 per day.

3. Warranty Service:
12 months limited warranty.
Starting from the date of the machine arrival buyer's place excluding wear parts.
The shipping cost for easy broken parts to be replaced during the warranty period have to be borne by the customer.

If you are interested in our machine, please feel free to contact me.
