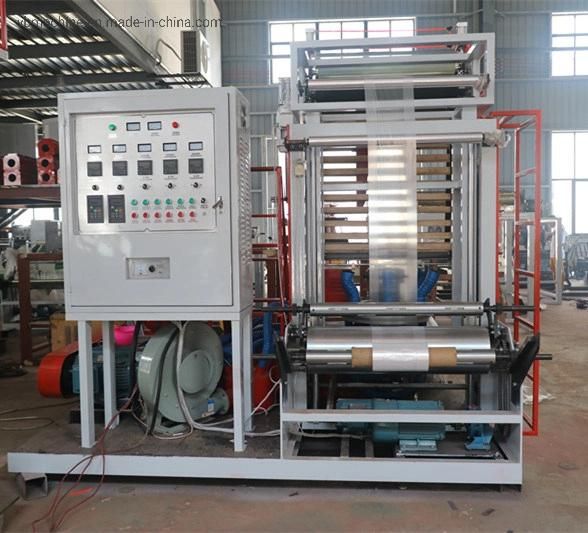

PE Mini Film Blowing Extruder Machine
RUIAN YUNBANG MACHINE CO., LTD.- Warranty：One Year
- Type：PE Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：600mm
- Screw Diameter：50mm
- Automation：Automatic
Base Info
- Model NO.：SJ-
- Computerized：Computerized
- Machine Weight：1.5t
- Certification：CE, ISO9001:2008
- Winder：Single
- Screw Ratio L/D：28:1
- Main Motor Power (Kw)：7.5-11 Kw
- Single-Side Thickness of Film(mm)：HD: 0.008-0.08 Ld: 0.02-0.10
- Transport Package：as Your Require
- Specification：CE. SGS
- Trademark：YunBang
- Origin：China
- HS Code：8477309000
- Production Capacity：15 Sets,Month
Description
Basic Info.
Model NO. SJ- Computerized Computerized Machine Weight 1.5t Certification CE, ISO9001:2008 Winder Single Screw Ratio L/D 28:1 Main Motor Power (Kw) 7.5-11 Kw Single-Side Thickness of Film(mm) HD: 0.008-0.08 Ld: 0.02-0.10 Transport Package as Your Require Specification CE. SGS Trademark YunBang Origin China HS Code 8477309000 Production Capacity 15 Sets/MonthProduct Description
Mini film blowing machine packimg machine| Model | SJ45 | SJ50 |
| Screw Diameter | 45mm | 50 mm |
| Max.folding width of film | 500mm | 600 mm |
| Single-side thickness of film(mm) | HD: 0.008-0.08 LD: 0.02-0.10 | HD: 0.008-0.08 LD: 0.023-0.10 |
| Max. output | HD: 30kg/hr LD:25kg/hr | HD: 40kg/hr LD:40kg/hr |
| Screw ratio L/D | 28:1 | 28:1 |
| Main motor power (kw) | 7.5-11 kw | 11-15 kw |
| Haul-off motor Power (kw) | 1.1 kw | 1.1 kw |
| Heating power(kw) | 11kw | 13 kw |
| Overall diameter(L*W*H)(mm) | 1400x2000x3200 | 1450x2280x3200 |
| Weight(T) | 1.5T | 2T |
