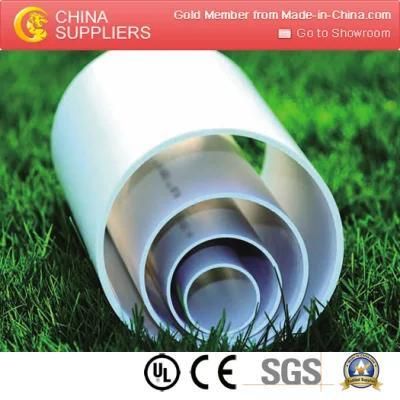

PVC Fairlead Pipe Making /Production Machine
GPM Machinery (Shanghai) Co., Ltd.- Product Type：PVC Pipe
- Screw No.：Double-screw
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008, UL, QS, GMP
- Customized：Customized
Base Info
- Model NO.：GWG
- Condition：New
- Product Name：PVC Fairlead Pipe Making ,Production Machine
- Other Name：PVC Fairlead Pipe Production Line
- Processing Type：Pipe Extrusion
- Raw Material：PVC Powder and CaCO3
- Usage：Wire Pipe
- Motor：Simens
- Inverter：ABB Brand
- Contactor：France Schneider Contactors
- Temperature Control：Japan Omron
- Output：180- 1100kg,H
- Transport Package：PE Film Winding Wrapping
- Specification：16-40mm
- Trademark：GPM
- Origin：Shanghai
- HS Code：8477209000
- Production Capacity：500 Sets,Year
Description
SPECIFICATIONS FOR PVC FAIRLEAD PIPE MAKING PRODUCTION MACHINE Model Pipe spec(mm) Conical twin screw extruder Max.output
(kg/h) Total power(kw) GWG63-PVC Φ16-Φ63 GSZ65/132 180-300 104 Model Motor power(kw) Screw diameter
(mm) Max.speed
(rpm) L/D Max.capacity(kg/h) Weight(kg) GSP75/28 37 75 36 28:1 280 4100 GSP93/13 45/55 93 45 31:1 450 4700 GSP110/31 90/110 110 45 31:1 680 6500 GSP120/31 110/132 120 45 31:1 850 7500 GSP135/31 160 135 45 31:1 1100 8400
3.Screw
4.Barrel
For choosing the proper machine and saving your time, please read these bellow guides carefully
1). What kinds of plastic machinery do you need ? Or what material do you want to process?
2). What capacity do you want? (kg/h )
3). What is the max and min size of the finish products .For example, the width and thickness of sheet(mm)?
4) What is the electric device you need ? Siemens, Omron or domestic ?
5) When do you want the machine? (Times for delivery)
6) Other requirements about the machine you want.
if you are interested in this machine ,please contact me:
mob : +86 13915723896 ( or +86 13817556740 )
Jeremy He
(kg/h)
(mm)
(rpm)
3.Screw
| Screw | |
| Diameter | 55/113mm |
| Effective length | 1440mm |
| Quantity | 2pcs |
| Material | 38CrMoAlA |
| Mesh Type | Conical Mesh |
| Treatment | Nitrided |
| Thickness of nitrided layer | 0.6-0.7mm |
| Total Torque | 6.4KNM |
| Rotation speed(r/min) | 1~34.7 r/min |
| Heating method of the screw core | water |
4.Barrel
| Barrel | |
| Type | Integer |
| Material | 38CrMoAlA |
| Treatment | Nitrided |
| Thickness of nitrided layer | 0.6-0.7mm |
| Heating control zones | 4 |
| Heating power | 20KW |
| Temperature range(ºC) | 50~300ºC |
| Cooling system | By blower fan |
| Cooling power | 0.55KW×3 |
| Adapter | Material 3Cr13, chromium plated, with inner convergent flow type |
| Driving System | |
| Gear type | Helical gears |
| Material of the gear | 20CrMnTi |
| Bearings | Chinese famous bearing |
| Method | Three-phase asynchronous motor, connected to the gearbox by coupler |
| Motor | AC motor |
| Power | 45KW |
| Feeder | |
| method | Screw feeder |
| Vacuum exhausting system | |
| Motor power (kW) | 1.5Kw |
| Working method of the motor | Three-phase asynchronous motor |
| Vacuum degree | 0~-0.08Mpa |
| Quantity of vacuum pumps | One set |
