• Model NO.：FT-1000
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Computerized
• Model：FT-1000
• Diameter of Screw：65mm
• L/D：30:1
• Rational Speed of Screw Stem：10-120rpm
• Folding Width of Film：1000mm
• Thickness：0.008-0.05mm
• Main Motor Power：18.5kw*2
• Heating Power：50kw
• Max. Output：100kg,H
• Machine Weight：5.5ton
• Overall Dimesion：7500*4500*3200mm
• Transport Package：Wooden Case,Wooden Block,in Nude
• Specification：FT-500,1000
• Trademark：Fangtai
• Origin：Ruian China
• HS Code：8477800000
• Production Capacity：20set,Month

Basic Info.

Model NO. FT-1000 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Model FT-1000 Diameter of Screw 65mm L/D 30:1 Rational Speed of Screw Stem 10-120rpm Folding Width of Film 1000mm Thickness 0.008-0.05mm Main Motor Power 18.5kw*2 Heating Power 50kw Max. Output 100kg/H Machine Weight 5.5ton Overall Dimesion 7500*4500*3200mm Transport Package Wooden Case/Wooden Block/in Nude Specification FT-500/1000 Trademark Fangtai Origin Ruian China HS Code 8477800000 Production Capacity 20set/Month

Product Description

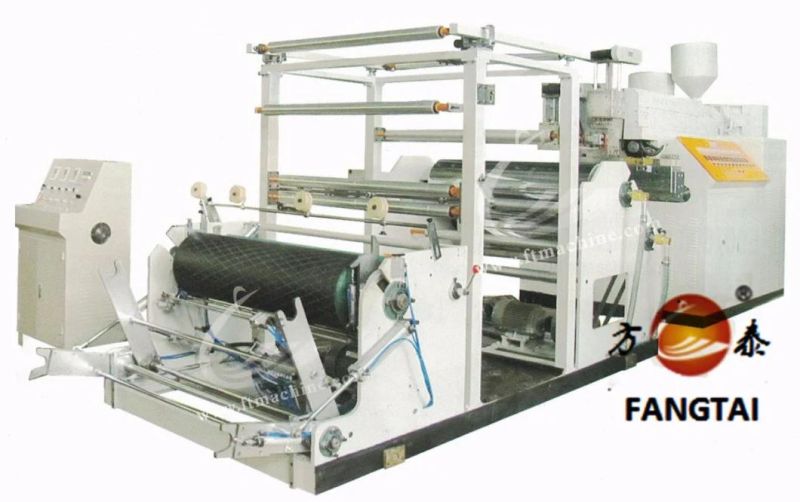

Double-layer Co-extrusion Stretch Film Making Machine(Automatic Winder)
Use:
This pe stretch film making machine set is used for producing LDPE stretch film,which is equipped with single screw.The extruded stretch film is with both sides adhesive.If the machine adopts double screws,the two hoppers should use different type of material,thus one side of the extruded stretch film is adhesive and the other side without.It is widely used for packing architecture and hardware parts etc.


Characteristics:
1.Screw and cylinder are all made of 38CRMOALA alloy and treated by nitrogen.It has advantages of corrosion resistance and endurance etc.

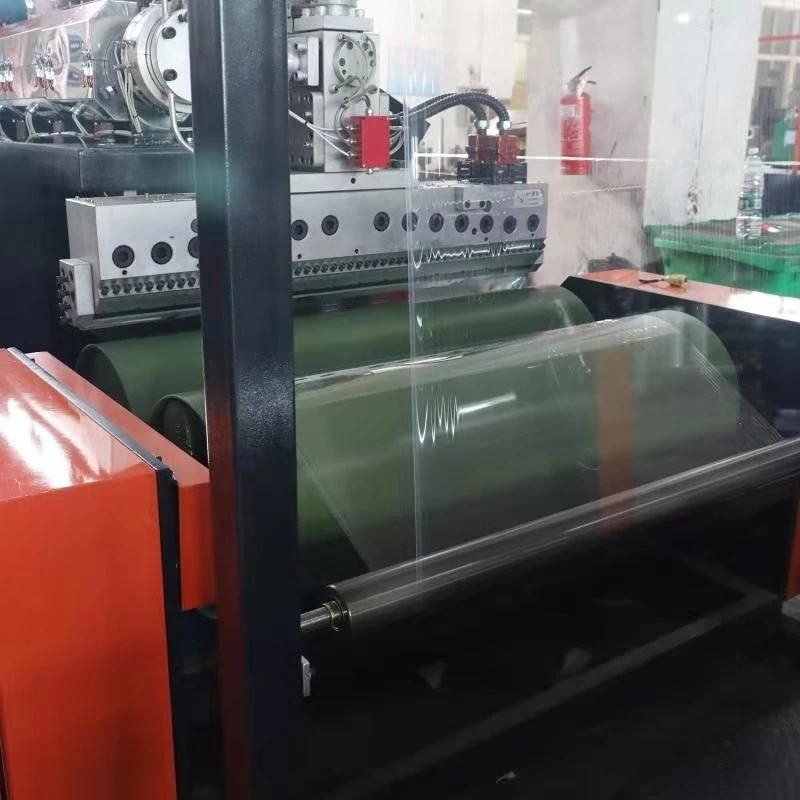

2.The cooling device adopts cycle water cooling provide the best transparent effect of the stretch film.

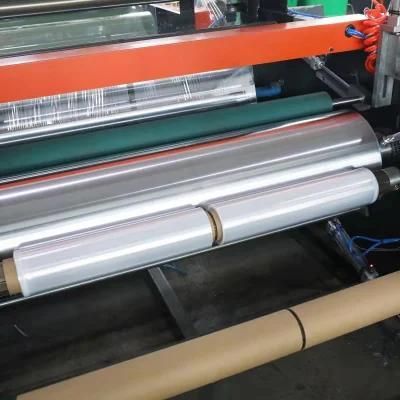

3.Take-up equipment adopts friction type rewinding, with edge correcting device to ensure the quality.

Main Technical Variables

Model	FT-500	FT-1000	FT-1500
Diameter of Screw Stem	55mm*2	65mm*2	70mm*2
Major Diameter Ratio of Screw Stem(L/D)	28:1	28:1	28:1
Rationl Speed of Screw Stem	10-120rpm	10-120rpm	10-120rpm
Folding Width of Products	200-500mm	1000(500*2)mm	1500(500*3)mm
Thickness	0.015-0.05mm	0.015-0.05mm	0.015-0.05mm
Main Motor Power	15kw*2	22kw*2	70kw*2
Heating Power	30kw	50kw	72kw
Max.Output(kg/h)	40	80	120
Machine Weight	3T	5.5T	7T
Overall Dimensions(L*W*H)(mm)	4500*2600*2550	7550*4500*3200	1000*6000*5000

Ruian Fangtai Machinery Co., Ltd. is a professional manufacturer of plastic packaging machinery and paper packaging equipment., we have more than ten years of producing machine history. The main products are: Bubble film making machine, stretch film making machine, printing machine, film blowing machine, bag making machine, and so on. Rely on high technology, customer foremost, perfect after-sales service, we produce exquisite machines and equipment, and develop new machines. The bubble film making machine and stretch film making machine have got the CE certification, entering European Union countries.

We hold the mission of "quality comes first, customer foremost", constantly improve their internal mechanisms, and after-sales service system. Pay close attention to internal management; Positive feedback to achieve a virtuous circle, excellent equipment manufacturers and the public.

We also have the customers from worldwide, including Middle East, Asia, and Africa. Our machines are warmly welcome among our customers. We believe that we will do more to meet our customers′ needs with best service. We pursuit mutual benefit and common development and we are willing to work with all sectors to establish long-term and stable business relationships. We sincerely welcome new and old customers, domestic and international presence.


Our Service

Q1:what's payment terms ,trade terms you accept ?

Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price .but we also  accept other way like L/C , wetern union ,and do CFR&CIF etc.

Q2.Does it easy to operate and what can i do if it doesn't work?

First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing. Our engineer is onlie for helping you with technical support, also our engineer can come to your factory to help you install and test the machine.And we will  sent you manual and video.

Q3. If the machine's spare parts broken ,where can i get ?

We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good ,in case  it broken within one year ,we will sent you for free.

FAQ

1, Are you trading company or manufacturer?

We are manufacturer, and also provide the business solution to all the friends.

2, Do you have quality certificate?

Yes we have CE, SGS etc.

3,What's the delivery time?

Around 20~30days, however, based on order.

4, Can you help us to buy other goods?

Sure of that, it is our honor to work for you, and control the goods quality.
