High Speed Plastic HDPE LDPE PE Film Blowing Machine
RUIAN YUNBANG MACHINE CO., LTD.- Type：PE Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：1500mm
- Screw Diameter：75mm
- Automation：Automatic
- Computerized：Computerized
Base Info
- Model NO.：SJ
- Machine Weight：4T
- Certification：CE, ISO9001:2008
- Film Width(mm)：600-1500
- Screw Diameter (mm)：75mm
- Film Thickness(mm)：0.006-0.10
- Max. Extrusion Output (Kg/H)：90kg,H
- Die Size(mm)：100,200
- Main Motor：Siemens Brand
- Inverter：LG Brand
- Temperature Controller：Omron Brand
- Guarantee：One Year
- Transport Package：as Require
- Specification：CE. SGS
- Trademark：YunBang
- Origin：China
- HS Code：8477309000
- Production Capacity：20 Sets,Month
Description
Basic Info.
Model NO. SJ Machine Weight 4T Certification CE, ISO9001:2008 Film Width(mm) 600-1500 Screw Diameter (mm) 75mm Film Thickness(mm) 0.006-0.10 Max. Extrusion Output (Kg/H) 90kg/H Die Size(mm) 100/200 Main Motor Siemens Brand Inverter LG Brand Temperature Controller Omron Brand Guarantee One Year Transport Package as Require Specification CE. SGS Trademark YunBang Origin China HS Code 8477309000 Production Capacity 20 Sets/MonthProduct Description

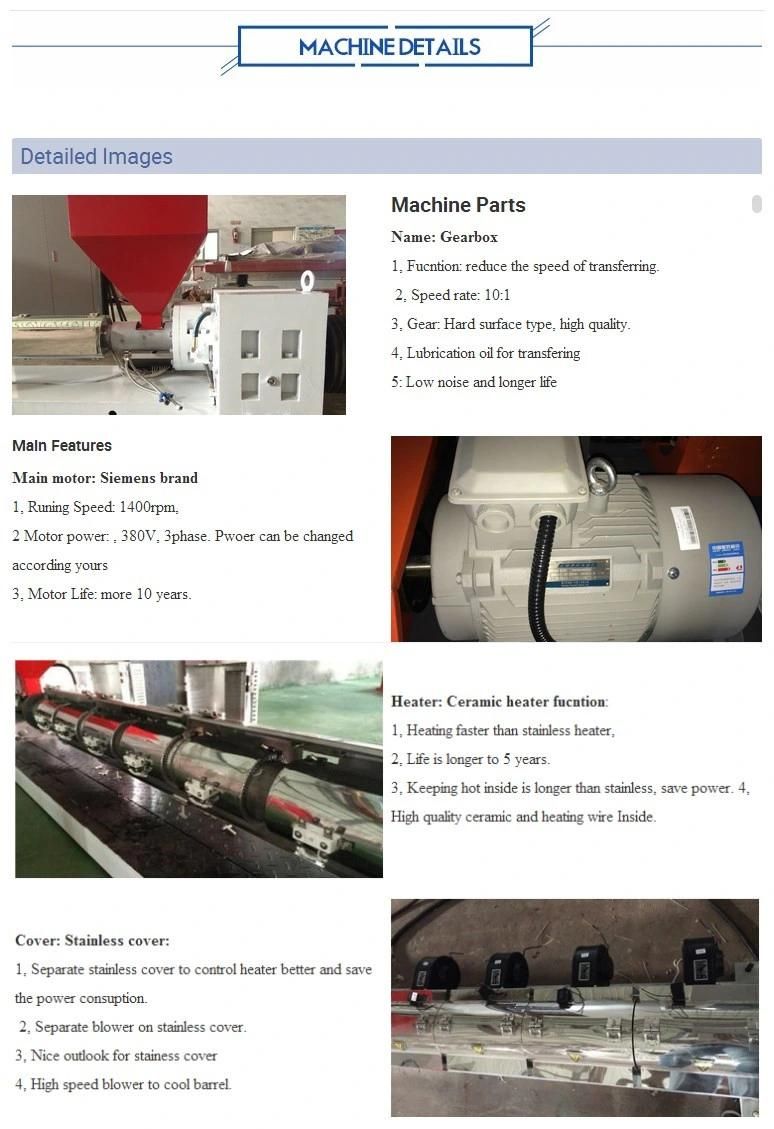

Machine Introduction
Its extruder, cylinder and screw rods are made of quality alloy steel that have been notarized and processed
In a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw
Is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing
The plastic films like low density polygene (LDPE), high density polygene(HDPE) and linear low density
Polygene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag
And vest ones.
Machine Parameters
Model | SJ-50/600 | SJ-55/800 | SJ-60/1000 | SJ-65/1200 |
Screw Diameter (mm) | Φ50 | Φ55 | Φ60 | Φ65 |
Screw Length (L/D) | 30: 1 | 30: 1 | 30: 1 | 30: 1 |
Film Width(mm) | 300-600 | 300-800 | 400-1000 | 600-1200 |
Film Thickness(mm) | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 |
Max. Extrusion Output(kg/h) | 60 | 70 | 80 | 90 |
Cylinder Cooling (Kw) | 0.25 | 0.25 | 0.25*2 | 0.25*2 |
Driving Motor(kw) | 15 | 18.5 | 22 | 30 |
Temperature Control | 3 | 3 | 3 | 4 |
Average Power-consume(kw) | 14 | 22 | 26 | 37 |
Die Size(mm) | Φ60/100 | Φ80/120 | Φ100/150 | Φ100/200 |
Winding Speed(m/min) | 10-100 | 10-100 | 10-100 | 10-80 |
Take-up Motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
Weight of machine(kg) | 2500 | 2600 | 3000 | 3200 |
Cover Dimension(m) | 5.0*2.1*3.8 | 5.0*2.3*4 | 5.5*3.3*4.2 | 5.8*3.6*4.5 |
