PP PE PVC Plastic Small Diameter Single Wall Corrugated Pipe Hose Extrusion Making Machine
Qingdao Tongsan Plastic Machinery Co., Ltd.- After-sales Service：Engineer Oversea Service
- Warranty：12 Months
- Type：Pipe Extruder
- Plastic Processed：PP,PE,PVC,EVA,PA
- Product Type：Plastic Corrugated Pipe
- Feeding Mode：One Feed
Base Info
- Model NO.：SJ-50,30
- Assembly Structure：Integral Type Extruder
- Screw：Single-Screw
- Engagement System：Full Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Exhaust
- Automation：Automatic
- Computerized：Computerized
- Production Speed：20-30m,Min
- Capacity：60-80kg,H
- Main Motor Power：37kw
- Motor Brand：Siemens
- Inventer：ABB
- Temper Contoler：Omron
- Transport Package：Sea Worth Package
- Specification：SJ65B
- Trademark：TONGSAN
- Origin：China
- HS Code：84772090
- Production Capacity：100 Sets One Year
Description

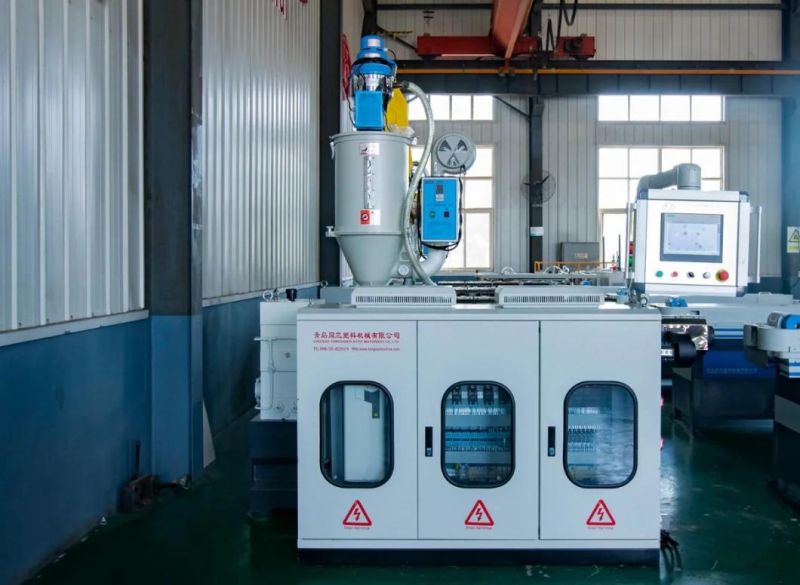

(1)SJ-65/30 single screw extruder The extruder consist of the screw pole, cylinder, reducer, extruder head's stand, the water and wind cooling system, the lubricating system, temperature-controlling system, speed-changing cabinet etc.All the parts be made by reputed manufacturer and the reputed supplier brand.
We adopt special screw for different raw material and different pipe diameter, so the raw material can be well plasticization and get goo quality pipes.The extruder will suit many standards and applications in the corrugated pipe manufacturing. A unique screw and barrel combination, perfected through theoretical studies.The screw pole will be made of alloy steel and processed nitrogenous. It will have excellent ability of hardness. At the same time, it will be wear-resisting and corrosion-resisting.

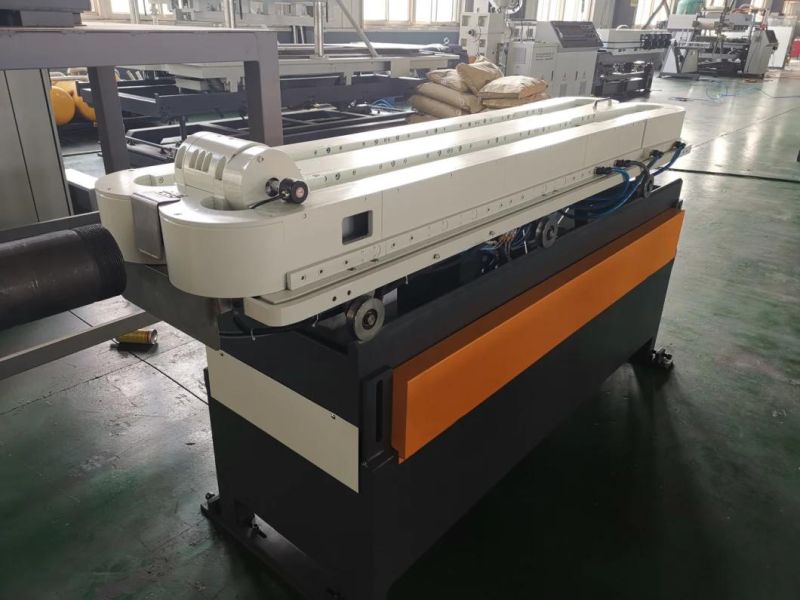

(2)High speed forming machine
We have two type of forming machine according the module connection method.One is the module block assembled through the chain shaft,and the chain pieces, then drive by the gears to move on the bottom plate.The bottom plate can be cooling by circled water and the mold block can be cooling by the fan air.
The other is the high speed type,all the module block been arranged on the track of the forming machine, there are driven by the up and down double gears to run in a high speed.The module can be cooling by both water and fan air.Efficient cooling ensures the module block cooling down quickly, so it is easy to get good quality of the single wall corrugated pipe in high speed production.

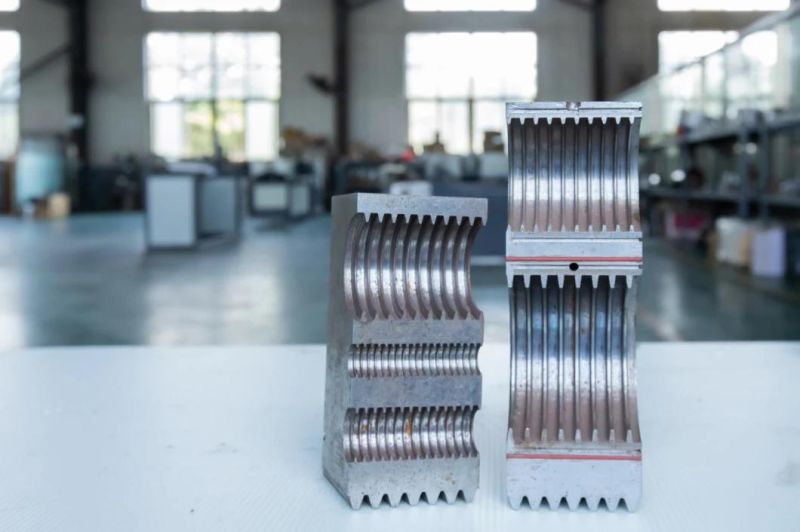

(3)Mould blockWe have professional mold design technicians,mold processing machines,machining center machines.We can design and process kinds of corrugated pipe module block,corrugated pipe joint module blocks,letter engraving module blocks and other types corrugated pipe block for any kinds of corrugated pipe according customer's requirements.All the module blocks are specialized grinding apparatus steel,which is of high hardness and strong wear resistance.
We have been committed to the research, continuous development and innovation of corrugated pipe production equipment.We can design and make the production lines according to customer requirements.Such as the corrugated pipe outer layer with coating production line,the corrugated pipe with steel line pass through device.PA PP PE PVC EVA Single Wall Corrugated Pipe application
Plastic corrugated pipe has the characteristics of light weight, strong bearing pressure, excellent bending performance and easy construction. Compared with other drainage materials, plastic bellows have the advantages of strong corrosion resistance, strong water permeability and high cost performance.
Plastic corrugated pipe is a kind of corrosion-resistant, water-permeable pipe. In recent years, plastic corrugated pipes have become more and more widely used. Compared with metal corrugated pipes, plastic corrugated pipes are not conductive and can prevent stray In addition, the plastic corrugated pipe has good bending performance and is convenient for construction.
Plastic corrugated pipes (PA, PE, PP) are widely used in the wiring connection of machine tool machinery and electrical box control cabinets, and are equipped with plastic quick connectors. It is widely used in automotive wiring harness, electronic, mechanical wiring harness and other fields, replacing the original PVC and metal sheath products, and becoming a widely used wiring harness sheath product on the market. In addition, plastic corrugated pipes are also used in municipal engineering, underground burying of rainwater in residential quarters, sewage discharge, irrigation of farmland, drainage of waterlogging, etc.
