• Certification：CE, ISO9001:2008
• Customized：Customized
• Condition：New
• Button：Schneider
• Mould for Sheet/Board：T Type
• Inverter：ABB
• Control System：PLC Control System
• After Sale Service：Life Long with Professional After Sale Team
• Machine Color：as Request
• Extruder Type：Twin Screw Extruder
• Contactor：Siemens
• Raw Materal：PVC Powder
• Transport Package：as Export Standard for Plastics Machine
• Specification：ISO9000 CE
• Trademark：SUKE
• Origin：Qingdao China
• HS Code：84775900
• Production Capacity：50sets,Year

Basic Info.

Certification CE, ISO9001:2008 Customized Customized Condition New Button Schneider Mould for Sheet/Board T Type Inverter ABB Control System PLC Control System After Sale Service Life Long with Professional After Sale Team Machine Color as Request Extruder Type Twin Screw Extruder Contactor Siemens Raw Materal PVC Powder Transport Package as Export Standard for Plastics Machine Specification ISO9000 CE Trademark SUKE Origin Qingdao China HS Code 84775900 Production Capacity 50sets/Year

Product Description

PVC Crust/Skinning/Celuka Foam Board Extrusion Machine Line



MACHINE INTRODUCTION;
Certificate: CE, ISO9001:2008, SGS,
Brand Name: SUKE
Output of PVC Board: 600kg/h

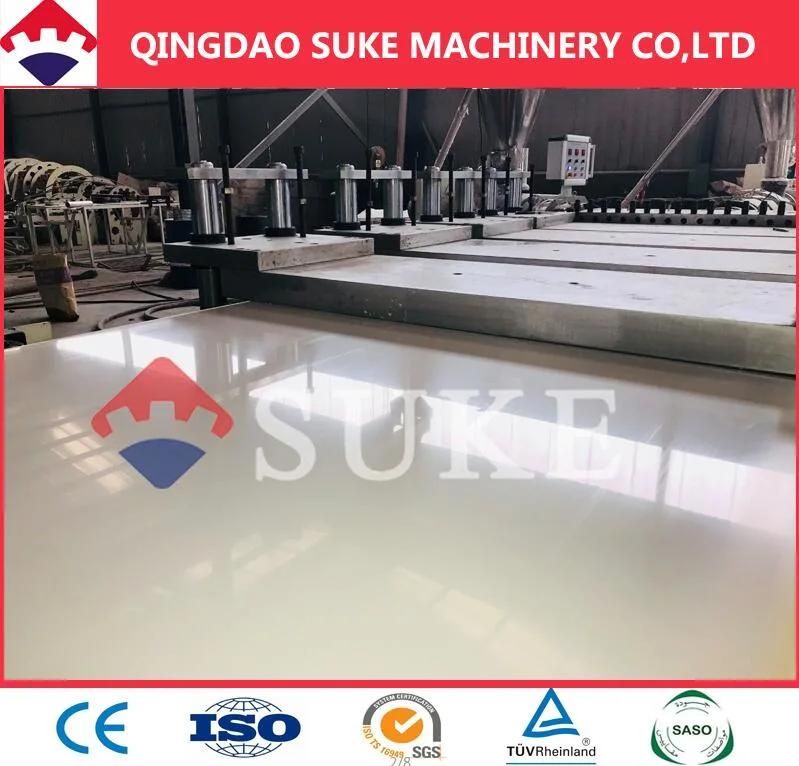

Dimension of PVC Foam Board:1220*2440*(3-30)mm
Plastic Processed: PVC and WPC
Application of Finished Board: Formwork, Furniture board, cabinet board, building template, advertisement board, wall panels, floor, roof, car and boat board etc.
Screw Design: Double-screw
Model Number: SYSJ80/156
Density of finished board: 0.37-0.85
Voltage: 380-440V
Main Motor Power: 90kw




PRODUCTIOIN PROCESS:
Raw materials--- Mixing --- Feeding --- Extruding ---Molding --- Calibrating --- Haul-off --- Cutting--- Stacking--- Printing or Hot stamping --- Package.



MACHINE FEATURES:
PVC Foam Board Machine adopts Celuka foam technology, which can produce a kind of PVC foam boards with superior quality. These processes result in a "skinning" or outer layer of foam board, thus has smooth and shining surface with characteristics of lightweight, scratch-resistant, durable, water and weather resistant, anti-corrosion, impervious to salts, insects and many chemicals including some acids.
2.    PVC foam board can be100% recycled and reused. Besides, PVC foam board can be worked like wood with the tools for wood. It's suitable for sawing, cutting, nailing, screwing, planning and sticking. It's the perfect substitute for wood plates and steel plate.
3.    The foam board is mostly used in transportation, advertisement, construction and furniture industry, ect.
4.    The board thickness is from 3mm to 35mm, width is from 915mm to 1220mm.




EQUIPMENT LIST:

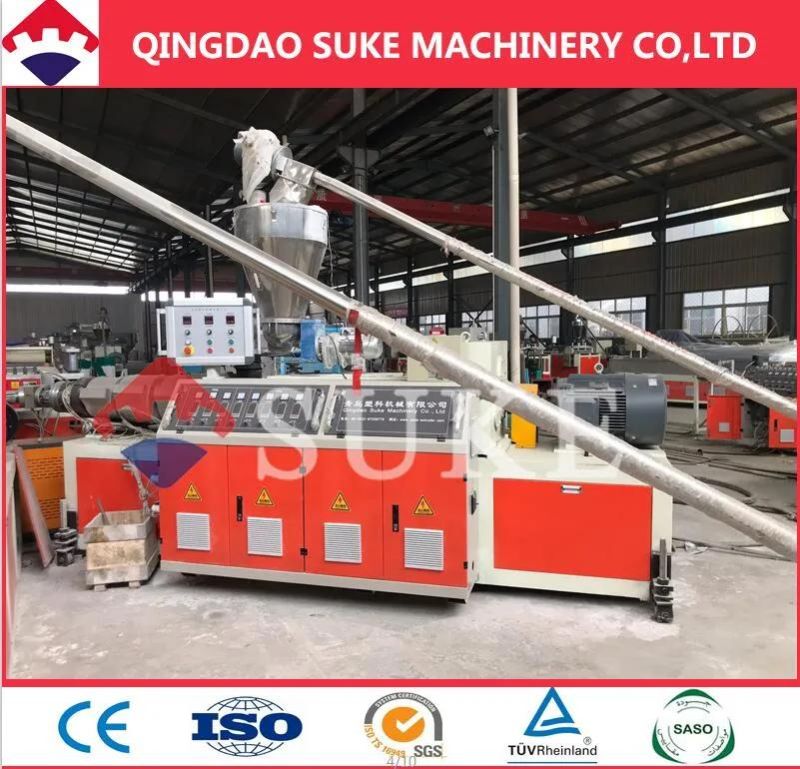

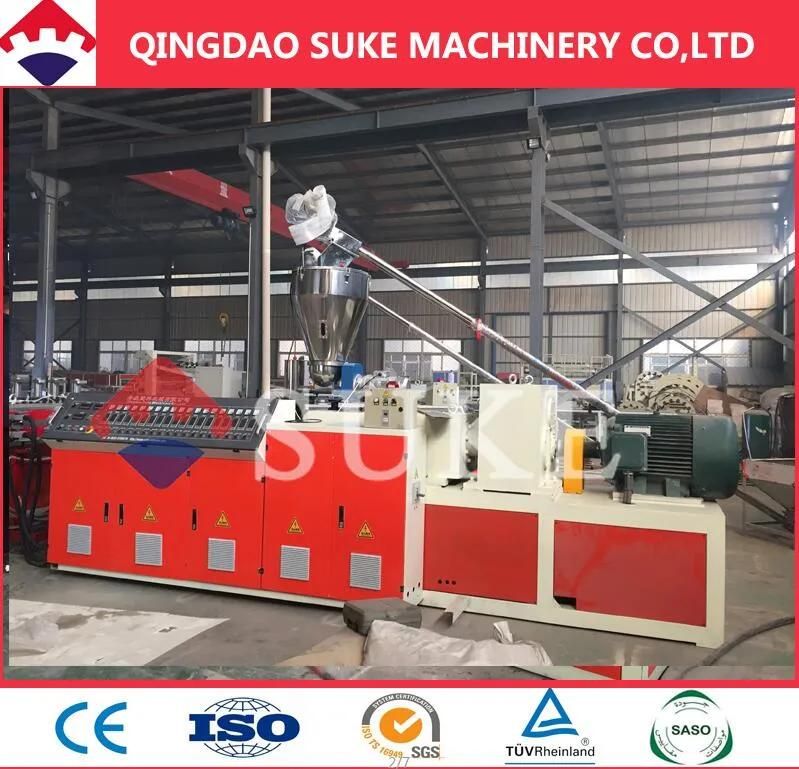

1.    Double Screw Extruder                1 unit
2.    Mould                               1 set

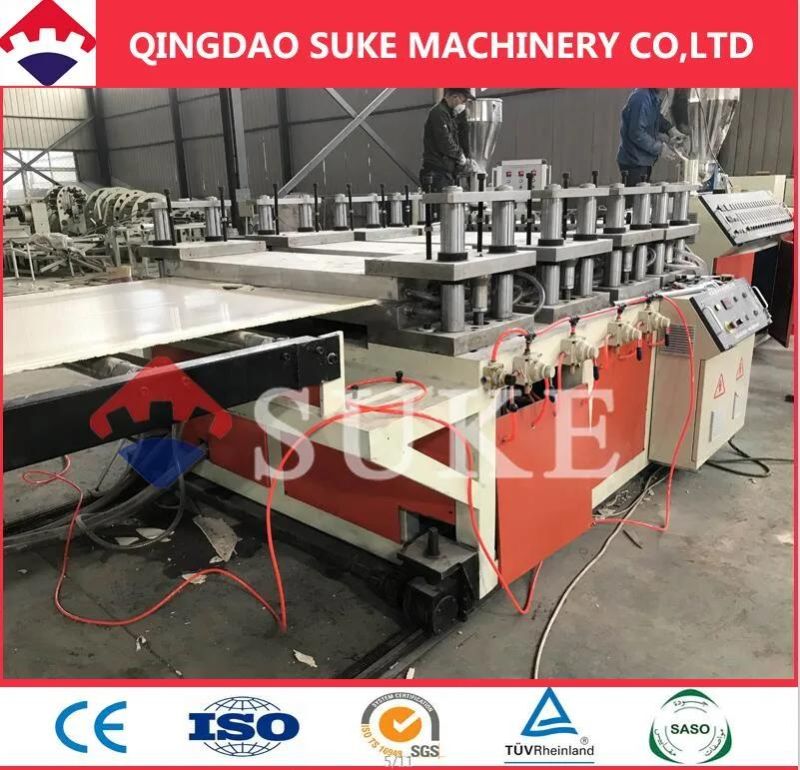

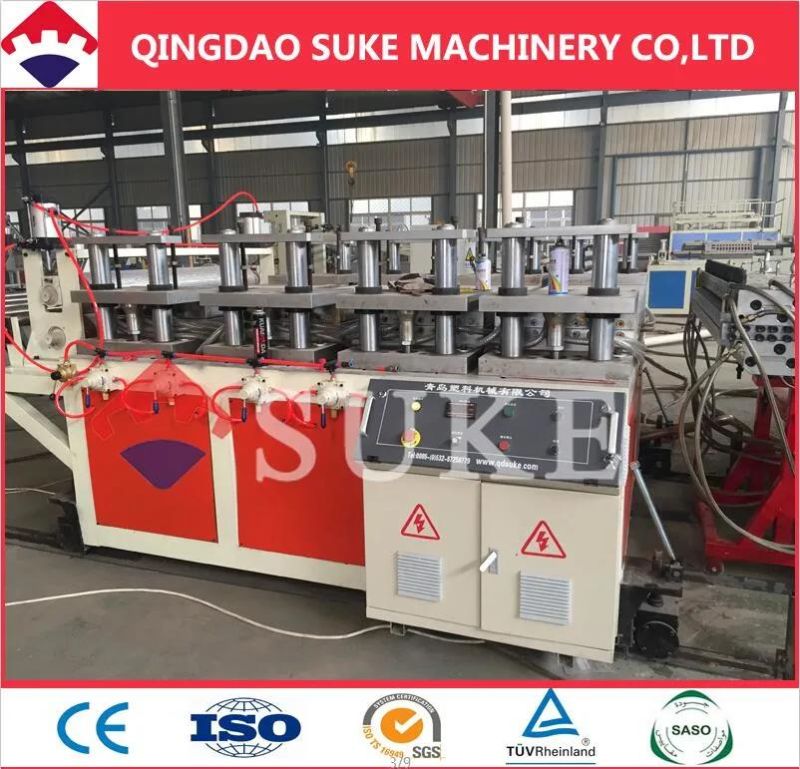

3.    Shaping Machine                     1 unit
4.    Haul-off Machine                     1 unit
5.    Cutting Machine                      1 unit
6.    Stacker                             1 unit
Optional Auxiliary Machine;
1.    Crusher                           1 unit
2.    Mixer                             1 unit
3.    Pulverizer                         1 unit
4.    Air Compressor                    1 unit
