2600mm ABA PE Film Blowing Machine
Xiongqiu Plastic Machinery Co., Ltd.- Type：PE Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：2500mm
- Screw Diameter：120mm
- Automation：Automatic
- Computerized：Computerized
Base Info
- Model NO.：FM2-2600
- Machine Weight：10T
- Certification：CE, ISO9001:2008
- Size：L*W*H: 8.5m*4.75m*8.8m
- Voltage：380V 50Hz 3phase
- Transport Package：Plastic Warp Film for Container Shipment
- Specification：2 layers
- Trademark：Xiongqiu Plastic Machinery Co., Ltd.
- Origin：Foshan, Guangdong Province
- HS Code：8477300000
Description
LLDPE/LDPE/HDPEthickness(mm) 0.02--0.20 film width(mm) 700 1000 1200 1600 1800 2100 max output(kg/h) 65 85 105 130 175 220 screw diameter Φ45mm*2 Φ50mm*2 Φ55mm*2 Φ65mm*2 Φ70mm*2 Φ75mm*2 material of screw and barrel 38CrMoAIA gear box 146*2 173*2 173*2 180*2 200*2 200*2 L/D ratio 30:1 temp. controller 3 zone 3zone 3zone 4zone 4zone 4zone temp. controller 2 zone 2 zone 2 zone 2 zone 3 zone 3 zone cooling fan(lw) 1.5 2.2 3.7 4 5.5 5.5 take up width(mm) 800 1100 1300 1700 1900 2200 effective width(mm) 700 1000 1200 1600 1800 2100 winder motor power(kgf.cm) 30 30 50 50 80 100 machine size(m) 4.5*2.4*4.2 6.3*3.3*6.0 6.5*3.15*6.0 6.5*3.66*6.5 6.5*3.8*7.5 8.0*3.95*7.5 voltage 380V 50Hz 3Phase

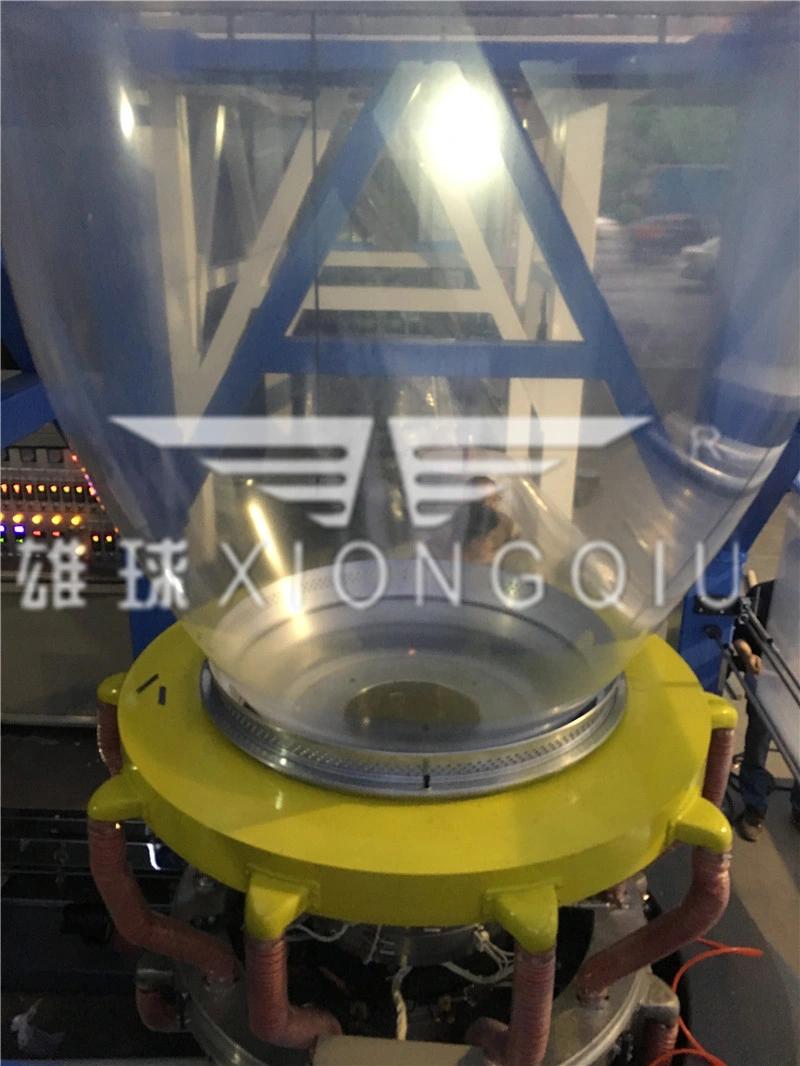

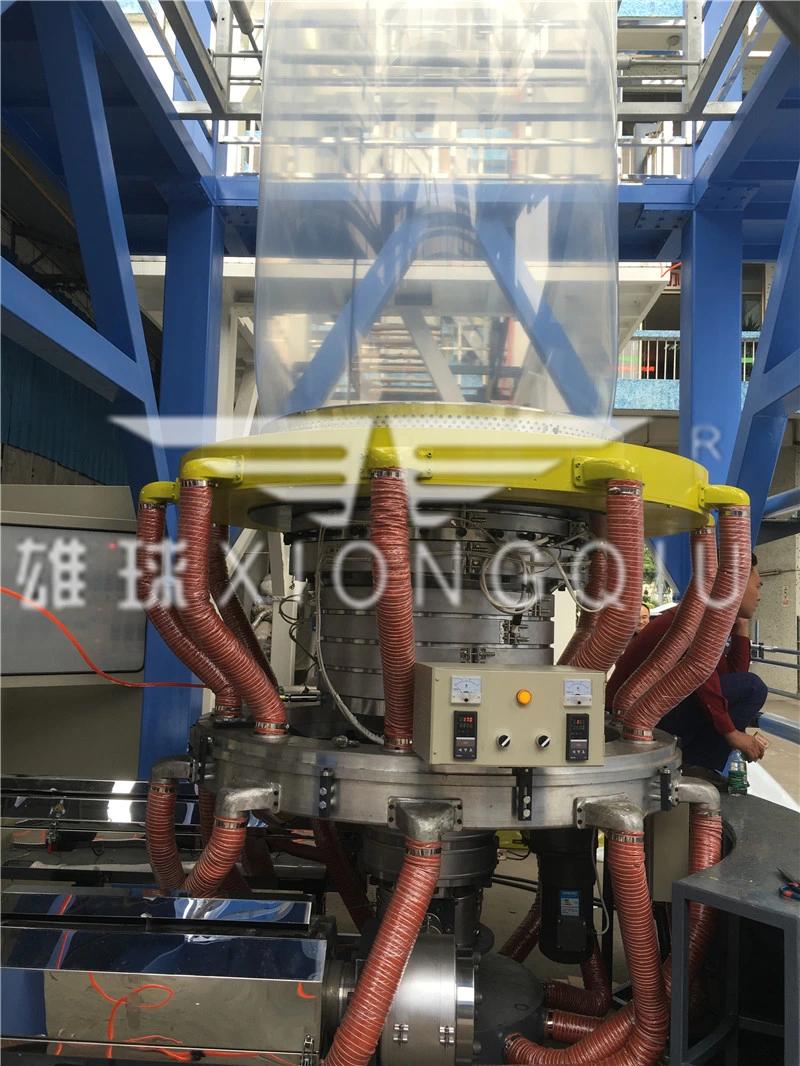

pictures for reference:

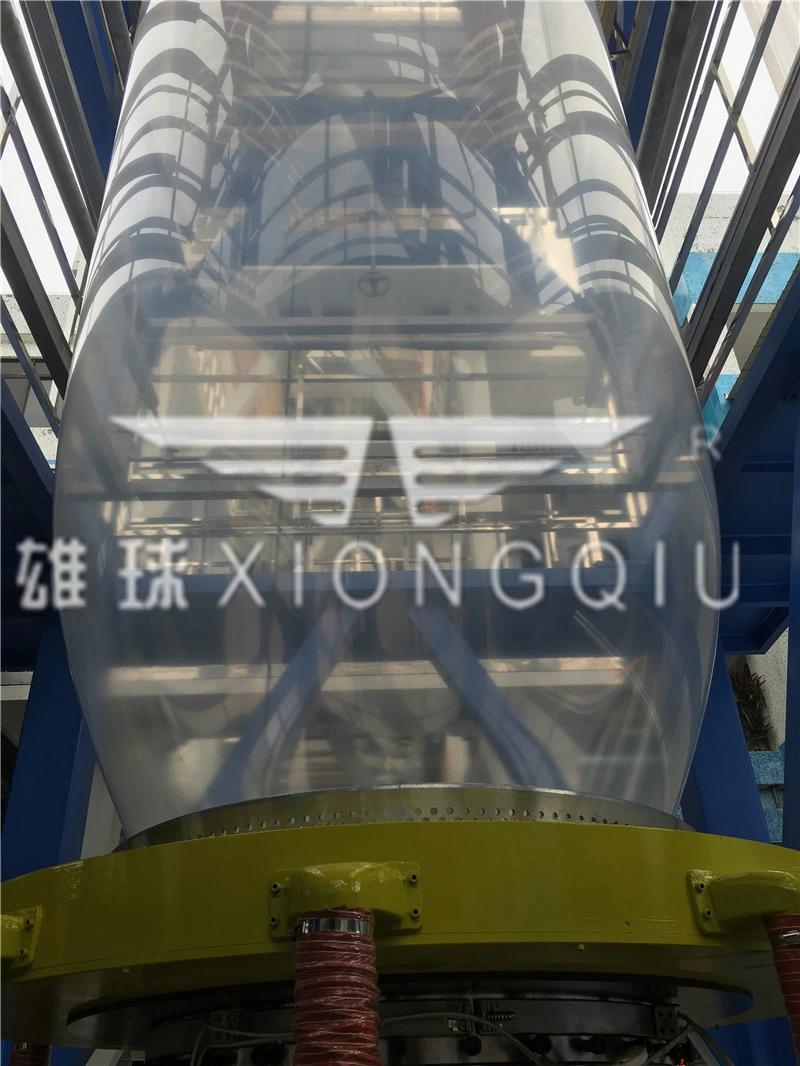

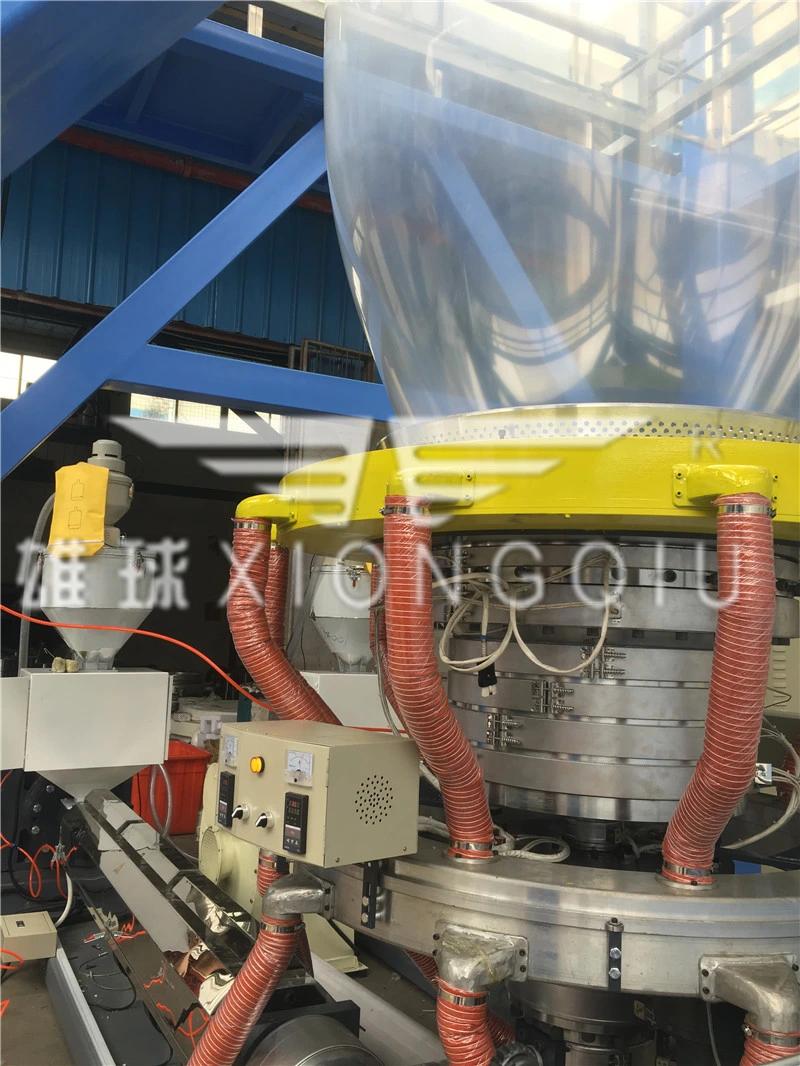

pictures for reference:
