Three Layer Coextruder PP Sheet Extrusion Line
Ruian Hoin Machinery Co., Ltd.- After-sales Service：Technical Support Online
- Warranty：One Year
- Type：Sheet Extruder
- Plastic Processed：PP
- Product Type：Extrusion Molding Machine
- Feeding Mode：One Feed
Base Info
- Assembly Structure：Separate Type Extruder
- Screw：Multi-Screw
- Engagement System：Non-Intermeshing
- Screw Channel Structure：Non Deep Screw
- Exhaust：Don′t Exhaust
- Automation：Automatic
- Computerized：Non-Computerized
- Transport Package：Film
- Specification：15m*3m*2.5m
- Trademark：HOIN
- Origin：Ruian,Wenzhou,China
- HS Code：8477209000
- Production Capacity：10sets,Month
Description
Raw Material
PP/PE/PS (New or Reclaimed)
Suitable Sheet Thickness
0.3-2.0mm (Adjustable Extent)
Max.Width Of Finished Sheet
720mm
Max. Capacity20
280Kg/H
Diameter of screw
Φ110/Φ80/Φ65
Length-Diameter Ratio of Screw
32:1
Main Motor Of Extrusion
55kw/30kw/22kw
Gear Box
250 /173 /200 Model (Hard Tooth Surface)
T-Die Width
850mm
Die Lip Pitch Range
0.3-2.0mm
Hydraulic Net-change Motor
2.2Kw
Three-roller Diameter
Φ350*850mm (Up,Middle,Down)
Three-roller Transmission Motor
3Kw*3pcs
Rewinding Motor
3Kw
Voltage Support
3Phase 380V, 50Hz,4Lines
Work Power
About 90Kw
Total Power
About 250Kw
Capacity of Water Consumption
18-22 M3/H
Machine Weight
About 10000Kgs
Overall Dimension
15*2.5*2.5mm

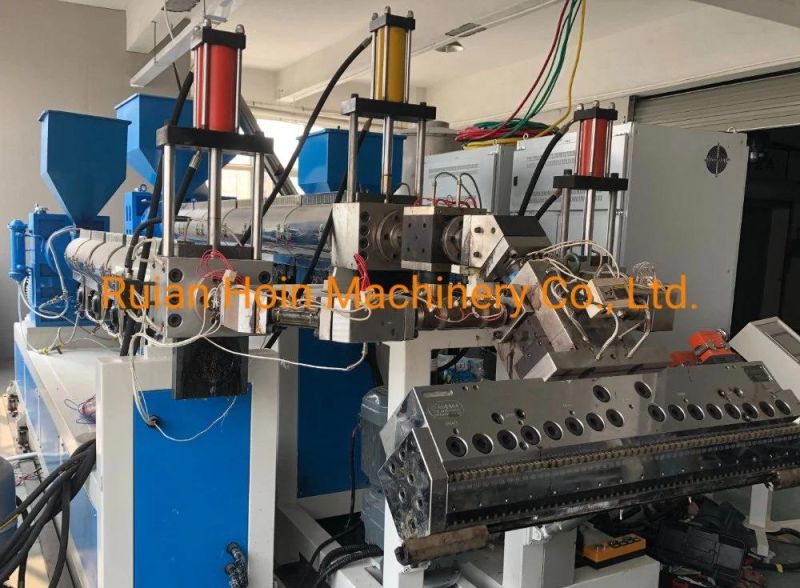

Three Screws

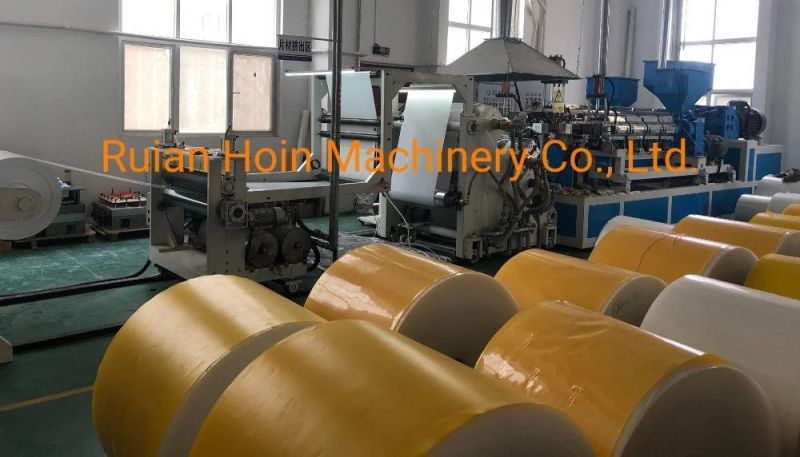

Plastic Sheet Extruder Is Running
