• Model NO.：BF-6500
• Arm Quantity：U Shape Arm
• Warranty：1 Year
• Productivity：High
• Power(W)：66.5kw
• Dimension(L*W*H)：17*9*7m
• Weight：28ton
• Max. Loading：3000kgs
• Machine Material：Steel Plate, Oven Surface Heated Board Q235
• Control System：Siemens PLC Control System
• Oven Thickness：120mm
• After-Sales Service：Engineers Available to Service Machinery Overseas
• Transport Package：Naked with Plastic Film
• Trademark：BENFAN
• Origin：Zhejiang, China (Mainland)
• HS Code：8477401000
• Production Capacity：100 Sets,Year

Basic Info.

Model NO. BF-6500 Arm Quantity U Shape Arm Warranty 1 Year Productivity High Power(W) 66.5kw Dimension(L*W*H) 17*9*7m Weight 28ton Max. Loading 3000kgs Machine Material Steel Plate, Oven Surface Heated Board Q235 Control System Siemens PLC Control System Oven Thickness 120mm After-Sales Service Engineers Available to Service Machinery Overseas Transport Package Naked with Plastic Film Trademark BENFAN Origin Zhejiang, China (Mainland) HS Code 8477401000 Production Capacity 100 Sets/Year

Product Description

Product Introduction

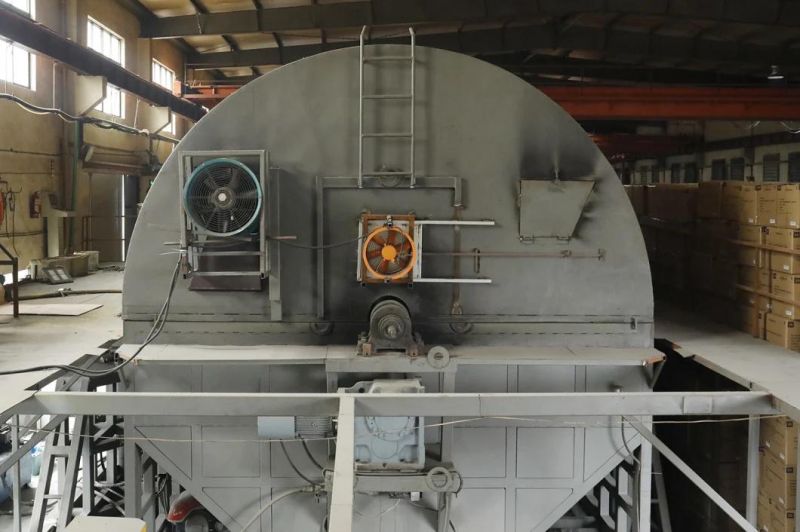

Rock and Roll Plastic energy saving Container Making Rotomolding Machine for US





Technical parameters

Machinery type:	Rock and roll rotomolding machine
Heating supply:	Natural gas,liquefied gas,diesel oil
Temperature control:	DTE Control±2ºC
Burner system:	Riello
Cooling mode:	Fan cooling
Control mode:	Touch screen+PLC(Siemens brand)
Electric brand:	Schneider,Omron
Delivery time:	About 60 days after receive the deposit
Overseas Installation period	It depends on machine size,usually takes 10-20days
Heating rate:	3 miniutes from room temperature to 280 degree in oven

Benfan rotomolding machine advantage:

1.    It only takes 3mins. from room temperature increase to 250 to 280 degree in oven

2.    Arm is made of special alloy material which is good load

3.    Full gear transmission, high efficiency

4.    Full automatic operation

5.    Heavy duty oven and energy saving

6.    Loading and unloading easy for mould

7.    Special deep cavity heating technical, suitable for complicated product

8.    Internet remote control (if the machine has problem in your factory, we can solve the problem through internet)

9.   PLC and Motors are Siemens brand from German,Burner is RIELLO from Italy,Bearing is NSK from Japan, all electrial compenents are using Schneider brand.

10.  Big computer screen, bob-weight system, special made motor, thermostability sealing arm head etc

11.  Use circle oven, it is more uniform heat distribution on the mold, that means it is good for product making and also more energy saving.
