• Model NO.：MD-HM35
• Machine Weight：1500kg
• Certification：CE
• Suitable Material：HDPE   LDPE   LLDPE
• Transport Package：PE Film Packing
• Specification：1400*2000*3200mm
• Trademark：Mingde
• Origin：China, Zhejiang

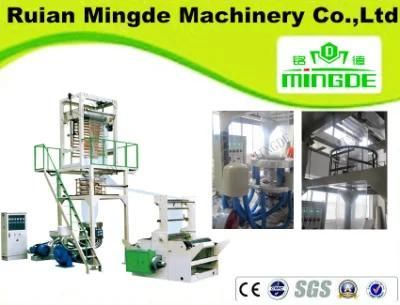

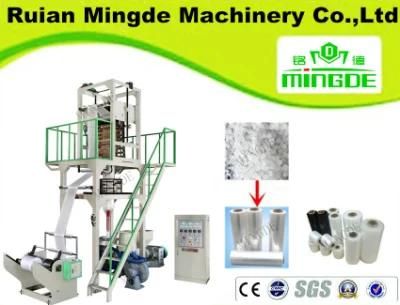

MD-HM35 series mini film blowing machineMain Technical ParametersModelMD-HM35MD-HM45 Suitable MaterialHDPE   LDPE   LLDPE Max Film Width(mm)400500 Film Thickness(mm)HD:0.008-0.08 LD:0.02-0.10 Max Extrusion Output20kg/hr (HD)35kg/hr (HD) 25kg/hr (LD)40kg/hr (LD) Extrusion unit       Gear Box133146 Screw Diameter(mm)φ35φ45 Screw L/D Ratio30:128:1 Screw's Material38 CRMOALA Barrel's Material38 CRMOALA Barrel's Cooling Fan250W×1250W×2 Thermo Control (zone)23 Driving Motor (kw)7.511 Extrusion Die        Die Size (mm)HD:φ50HD:φ60 Screen ChangerStandard manual Thermo Control (zone)22 Air Ring φ470mm φ620mm Cooling Blower (kw)1.11.5 Center Steady Stick1 PCS Take-UP Unit       Roller Width (mm)φ138×450φ138×550 Embossing Roller Width350mm450mm Take-UP Motor (kw)0.750.75 Take-UP Speed(M/min)10-8010-80 Winding Unit      Type OF WinderSurface Friction Single Winder Roller Width (mm)450550 Winding Motor10N.m1.1kw Winding Speed(M/min)10-8010-80 Voltage380V, 50HZ, 3PHASE Cover Dimensions (m)1.4×2.0×3.21.45×2.28×3.2 40" Container Size9 SETS8 SETS
OPTIONAL EQUIPMENT  1)AUTO LOADER   2)CORONA   3)AUTOMATICALLY SUPPLY AIR




Kevin
Ruian Mingde Machinery Co.,ltd.
ADD:No.168 Daohang Road,Economic Development Industrial Zone,Ruian,Zhejiang.
Tel:0086-577-65166180   Fax:0086-577-65166189
Mobile:0086-15168711278 / 15857781186

Website:mingdechina.en.made-in-china.com
