• Model NO.：PXB90A
• Bottom Blowing：Available
• Material：PP, PE, ABS...
• Total Weight：16t
• Output(Dry Cycle)：500 PC,Hr
• Die Head Option：Accumulator Head
• Transparent Line：Available
• Production Usage：Special Barrel, Drum, Sprayer, Tool Case
• Multi-Layer：Available
• Color：Double Color
• Screw Diameter：70mm*2
• Transport Package：Film Packing with Wooden Bottom
• Specification：Max capacity 60L
• Trademark：Puxin
• Origin：Suzhou
• HS Code：847730100

Basic Info.

Model NO. PXB90A Bottom Blowing Available Material PP, PE, ABS... Total Weight 16t Output(Dry Cycle) 500 PC/Hr Die Head Option Accumulator Head Transparent Line Available Production Usage Special Barrel, Drum, Sprayer, Tool Case Multi-Layer Available Color Double Color Screw Diameter 70mm*2 Transport Package Film Packing with Wooden Bottom Specification Max capacity 60L Trademark Puxin Origin Suzhou HS Code 847730100

Product Description

PXB90AS
30L - 60L Double Color Blow Molding Machine

Special Feature:
- Patented technology of Double Color Accumulator Head. Special usage for toolbox, Toy, Sports Equipment, etc
- MAX capacity 60L products, high clamping force with quick action from hydraulic system.
- 6.6L capacity of Accumulator head, 2 color sides of die head divided from center diameter.

Configuration List

PLC	MITSUBISHI	Japan
Touch Screen	HITECH	Taiwan
Inverter	MITSUBISHI	Japan
Power Supply	MEAN WELL	Taiwan
Relay	OMRON	Japan

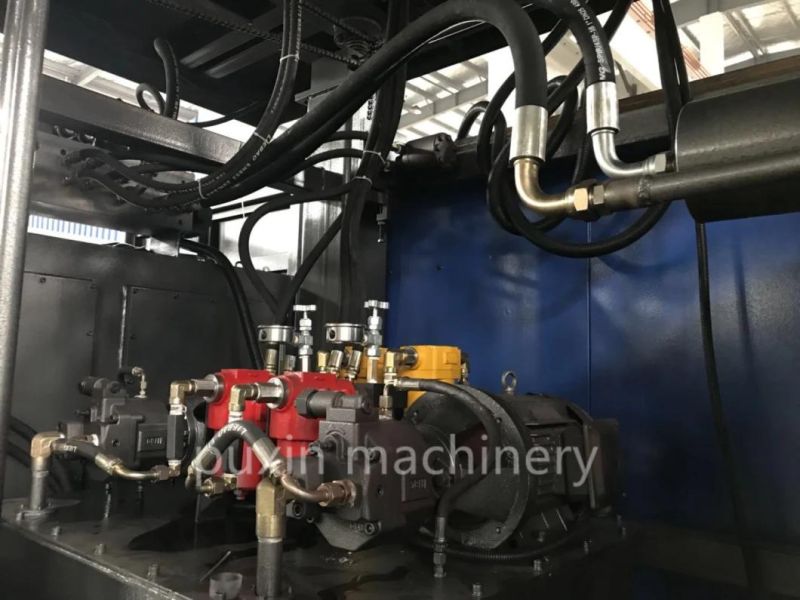

Hydraulic Valves	YUKEN	Japan
Hydraulic Pump	YUKEN	Japan
Contactors	LS(LG)	Korea
Solid relay	FOTEK	Japan
Breaker	LS(LG)	Korea
Temperature Control Module	MITSUBISHI	Japan
Oil Sealing	DZ	Taiwan
Oil Tube	LIEBAO	Taiwan
Transducer	GEFRAN	Italy
Proximity Switch	SONON	China
Motor	SIEMENS	China
Air Valve	FESTO	Germany
Parison Controller	Moog	Japan
Servo Valve	Moog	Japan



Machine model		PXB90AS
Material		PE,PP,ABS...
Max container capacity	L	60
Output(dry cycle)	pc/hr	500
Machine dimension(L×W×H)	M	5.7×2.6×4
Machine weight	T	16

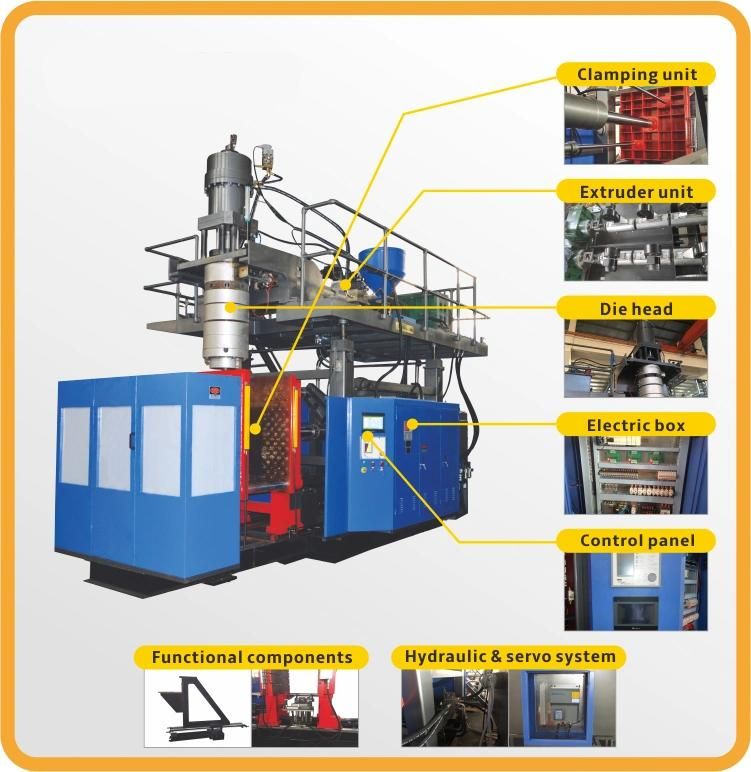

Clamping Unit
Clamping force	kn	360
Mold platen size(W×H)	mm	960×980
Platen opening stroke	mm	450-1050
Platen moving stroke	mm	600
Max mold size(W×H)	mm	700×1080
Mold thickness	mm	460-600
Power
Servo oil pump motor power	KW	15
Servo pump displacement	L/MIN	100
Blow pressure	MPA	0.8
Air consumption	M3/MIN	1
Cooling water pressure	mpa	0.3
Water consumption	L/min	90
Average energy consumption	KW	35-40
Extruder unit
Screw diameter(outer layer/inner layer)	mm	70×2
Screw L/D ratio	L/D	24
HDPE Melting capacit for HDPE	kg/hr	65-80
Number of heating zone	zone	4×2
Screw heating power	kw	21.4×2
Screw fan power	KW	0.5
Extruder motor power	kw	22×2

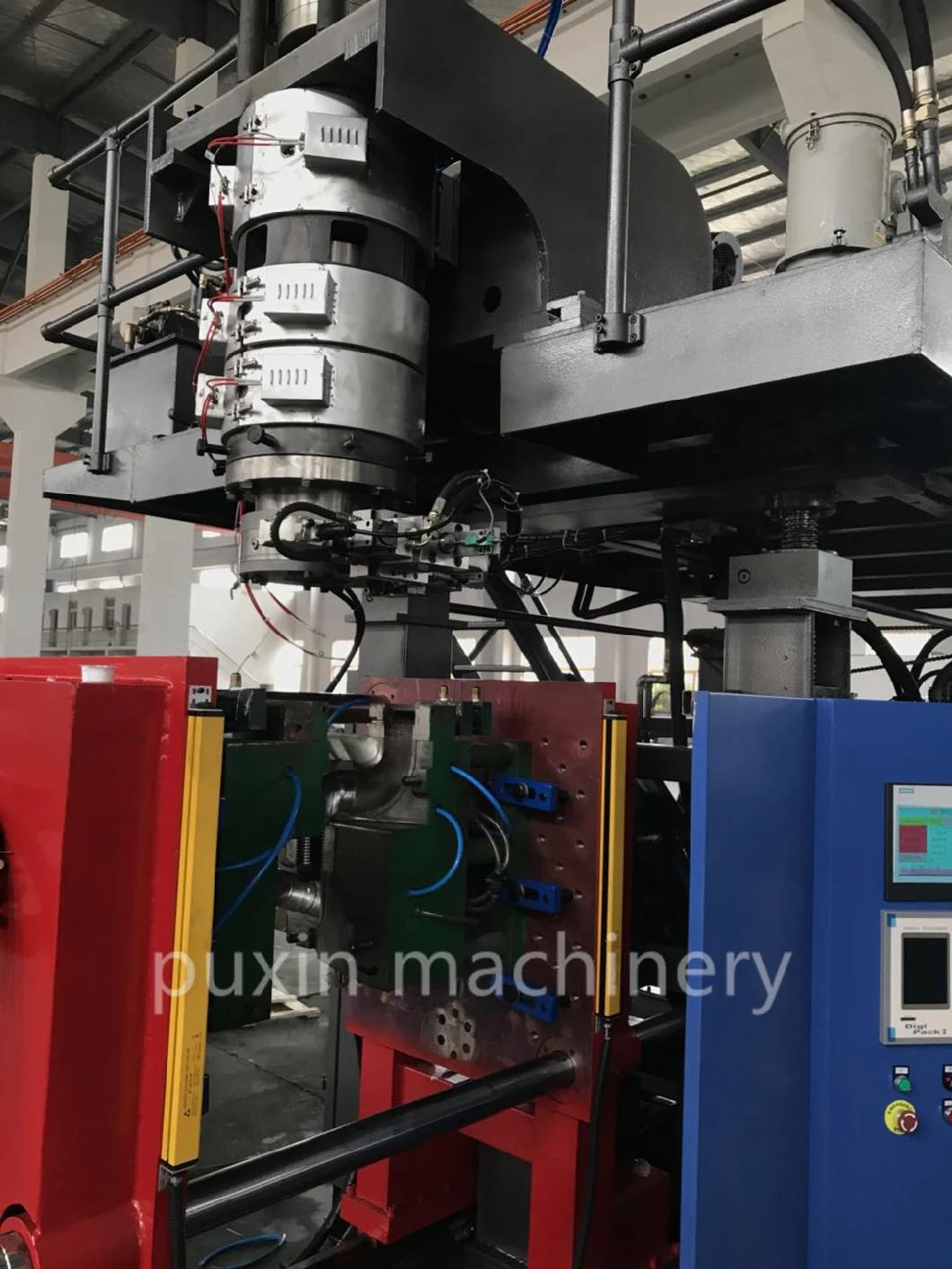

Die head
Number of heating zone for single die head	zone	4
Heating power for single die head	kw	21.3
Max die-pin diameter	mm	350
Accumulator capacity	L	6.6
(HDPE) Accumulator weight(HDPE)	KG	4.9

Delivery Time:
- No later than 45 days after receipt of the deposit

Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).

Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.

Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.

Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.
