• Model NO.：600-1200mm
• Customized：Customized
• Condition：New
• After-sales Service：Overseas Installation, Free Technical Supporting
• Pipe Diameter：From 600 to 1200mm
• Calibration Method：Vacuum and Water Cooling
• PLC：Siemens
• Cutting Method：Planetary Cutting
• Transport Package：Standard Export Packing
• Specification：Pipe diameter from 420mm to 1680mm
• Trademark：HSD
• Origin：Qingdao, China
• HS Code：8477209000
• Production Capacity：150-1200kg,H for Different Sizes of Pipes

Basic Info.

Model NO. 600-1200mm Customized Customized Condition New After-sales Service Overseas Installation, Free Technical Supporting Pipe Diameter From 600 to 1200mm Calibration Method Vacuum and Water Cooling PLC Siemens Cutting Method Planetary Cutting Transport Package Standard Export Packing Specification Pipe diameter from 420mm to 1680mm Trademark HSD Origin Qingdao, China HS Code 8477209000 Production Capacity 150-1200kg/H for Different Sizes of Pipes

Product Description

Plastic HDPE PE Thin Wall Pipe Extruder Machine for Polyurethane Foam Preinsulated Pipe


---Pipe diameter range: 110-600mm, 600-1200mm

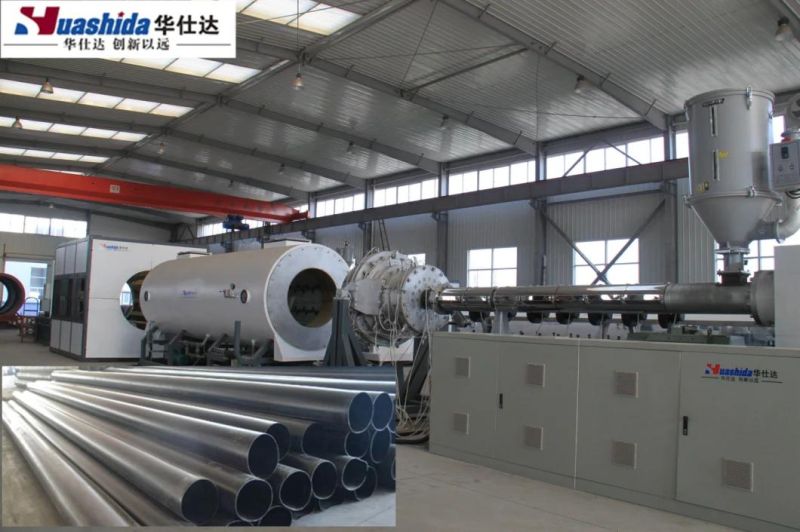

---The extrusion line comprise equipment and devices as below,
    1set   Vacuum loader
    1set   Hopper dryer
    1set   High-efficiency single screw extruder
    1set   Vacuum calibration tank
    1set   Hauling machine
    1set   Cutting machine
    1set   Stacker
    Siemens control system

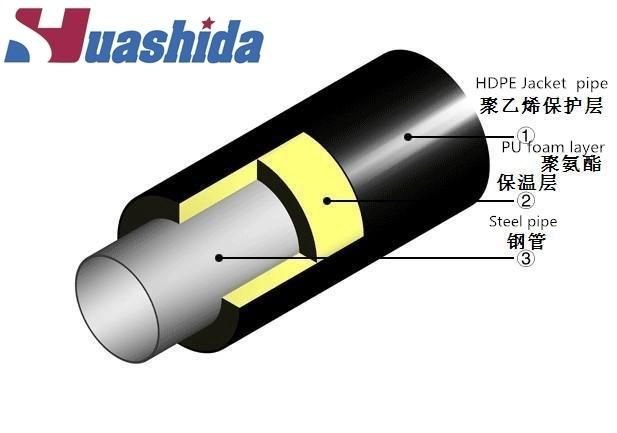

---Pipe Application: the outer protective casing of  PUF thermal insulated pipe, which is widely used in central heating, cooling oil&gas transmission and other industrial areas.


Features of Production line of HDPE jacket pipe
-small dimension
-high degree of automation, can be operated by one person, saving labor costs.
-long service life.
-high-efficiency extruder gives larger output, stable performance.
-pipe wall is average and smooth
-no waste of raw material
-once forming. No need to trim the edge.
Production range: 110-2000mm (by different models)

 Technical parameters

Style	PE-110/600	PE-365/760	PE-655/1380
Main Extruder	SJ-75/33	SJ-90/33	SJ-120/33
Pipe diameter	Φ110-600mm	Φ365-760m	Φ655-1380mm
Capacity	250-350kg/h	400-500kg/h	700-900kg/h
Installed power	160kw	240kw	480kw
Length	26m	32m	36m

The HDPE PE Thin Wall Pipe Extruder Machine for Polyurethane Foam Preinsulated Pipe is not only welcomed widely in China but also in many countries of the world.
HUASHIDA has exported the Pipe extruder machine to Russia, Kazakhstan, Uzbekistan, Egypt, Iran and other countries.
