Fruit Container Making Machine for Pet Blueberry Tray

Ruian Donghang Packing Machinery Co., Ltd.
  • Certification：CE, SGS
  • Column number：Four Column
  • Molding Method：Hydraulic and Servo
  • Automatic Grade：Automatic
  • Automation：Automatic
  • Raw Material：Pet

Base Info

  • Model NO.：DHBGJ-480L
  • Shaping Mode：Die Molding
  • Application：Machinery & Hardware, Food & Beverage
  • Driven Type：Pneumatic
  • Computerized：Computerized
  • Transport Package：Wooden Packagintg
  • Specification：SGS
  • Trademark：DONGHANG
  • Origin：China
  • HS Code：8477409000
  • Production Capacity：50 Sets,Month

Description

Basic Info.

Model NO. DHBGJ-480L Shaping Mode Die Molding Application Machinery & Hardware, Food & Beverage Driven Type Pneumatic Computerized Computerized Transport Package Wooden Packagintg Specification SGS Trademark DONGHANG Origin China HS Code 8477409000 Production Capacity 50 Sets/Month

Product Description

Characteristic:
DHBGJ-480L It's a new type one that combines advantages of several types of main forming machines and also brings to more improvement and innovation.
With easy operation, calm running, convenient maintenance and stable function.
It can produce PVC, PS, PET etc. All kinds of covers.
it is two line of forming area, it works with servo motor and hydraulic, so the machine will be much more stable than others.
Fruit Container Making Machine for Pet Blueberry TrayFruit Container Making Machine for Pet Blueberry TrayFruit Container Making Machine for Pet Blueberry TrayFruit Container Making Machine for Pet Blueberry TrayFruit Container Making Machine for Pet Blueberry TrayFruit Container Making Machine for Pet Blueberry TrayFruit Container Making Machine for Pet Blueberry TrayFruit Container Making Machine for Pet Blueberry TrayFruit Container Making Machine for Pet Blueberry TrayFruit Container Making Machine for Pet Blueberry Tray
Functions and Features

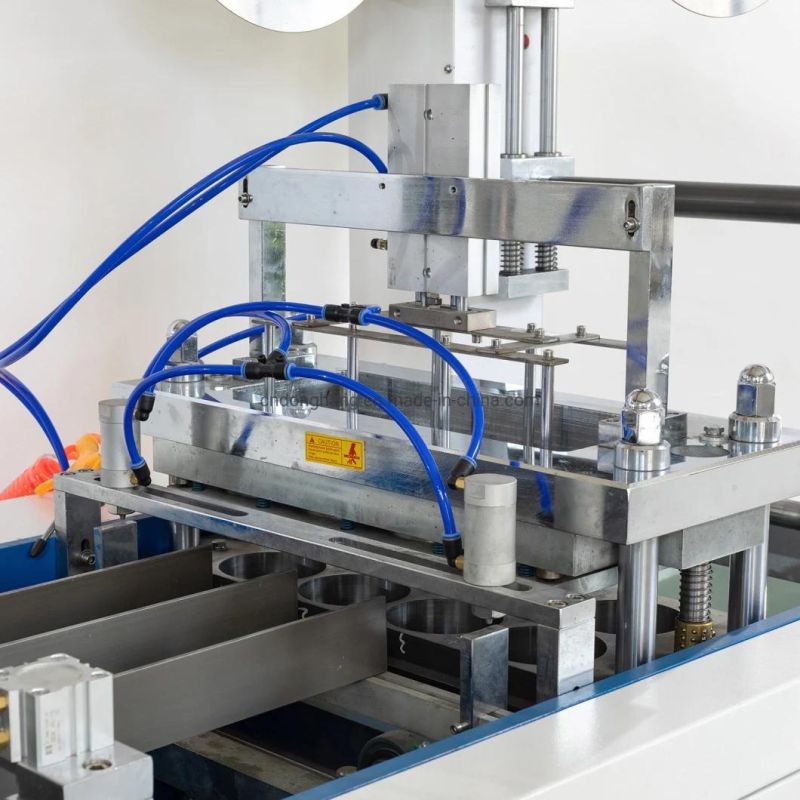

1) Mold adopts clamping plate, easy to adjust and install.
2) Main motor adopts servo governor: Cutting frequency is adjustable of 10~28 Time/min. Moderate the suitable cutting frequency on the basis of stoke length and difficulty of forming.
3) Servo feeding corporate with squeeze motion. Smooth running, process synchronized, the maximum line control is 240mm, it means the dimensions can designed differently in this range.
4) Forming heating plate automatically close and open. It can power on delay, limits the waste of materials in once time. The heating power and temperature can be lowed by adopted contact heating of the plate. Through which it saved energy and enhance the stability of plastic piece.

Technical Data
Punching Frequency20-35time/min
Adjustable scope of Travel30-160mm
Max Forming Depth50mm
Max. Forming Area260mm*450mm
Air-compressor<0.2m 3 /min
Pressure0.4-0.7MPa
Power20Kw
Overall Dimension4200*850*1700mm
Weight2000Kg

If you are interested in our machine, please feel free and contact me.
