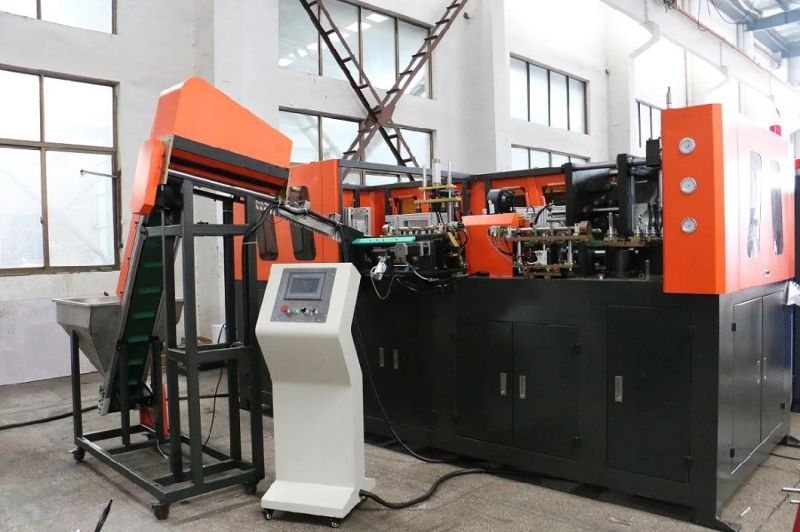

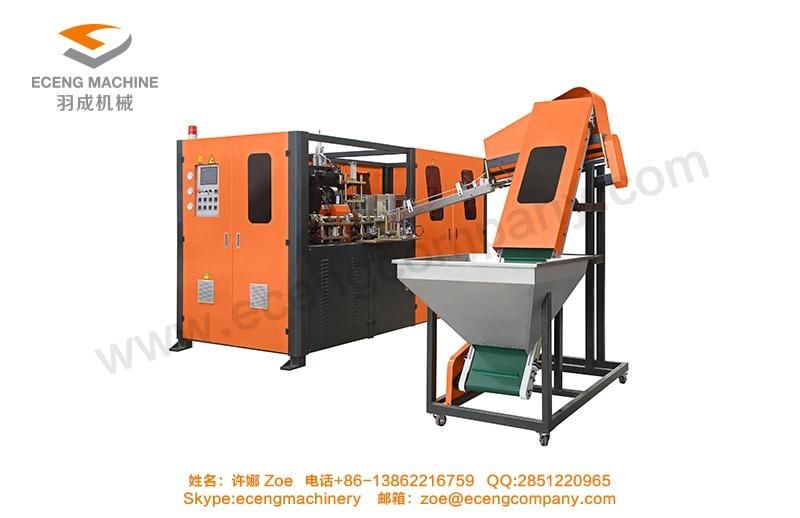

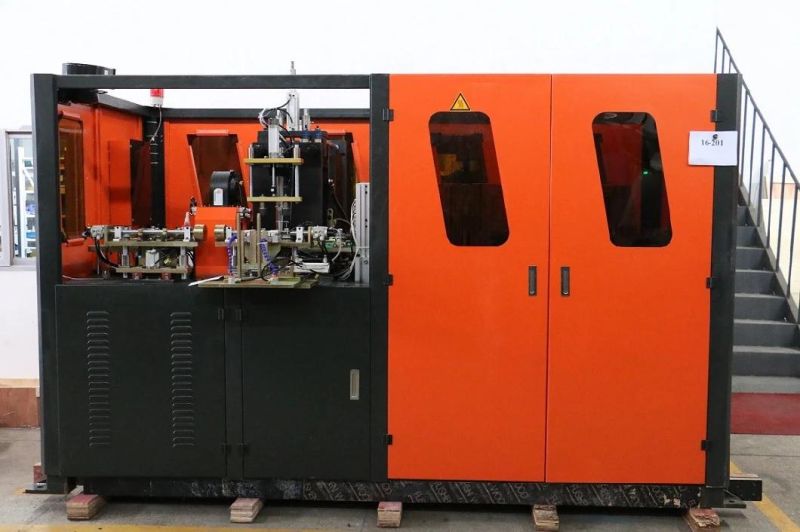

100ml-2L Plastic Bottle Can Blow Molding Machine

Zhangjiagang Eceng Machinery Co., Ltd.
  • Type：Stretch Blow Molding Machine
  • Raw Material：PET
  • Making Method of Parison：Stretch Blow
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE, ISO9001:2008, QS

Base Info

  • Model NO.：YCQ-2L-2E
  • Cavity：2
  • Theory Output：2400-2700
  • Max. Volume：2L
  • All Electric Machine Installation：27kw
  • Size of The Machine：2.25X1.6X1.7 (M)
  • Weight of The Machine：2500kg
  • Bottle Material：Pet
  • Color：Orange
  • Transport Package：Wooden Package,Customer′s Request
  • Specification：CE SGS ISO QS
  • Trademark：eceng
  • Origin：Zhangjiagang Jiangsu
  • HS Code：8477300000
  • Production Capacity：6-8sets Per Month

Description


Bottle type specification



 cavity2theory output (PCS/HR)2400-2700 Max. volume (L)2LBottle mouth maximum overall diameter (mm)80mmBottle biggest diameter100mmBottle maximum height330mm
Power specifications

 Light tube quantity32pcsLight tube power0.75kwMaximum heating power24kwAll electric machine installation27kwActual consumption8.1kw
Air pressure specification

 Work pressure7-9kg/cm2Low-pressure gas consumption1000Ltr/minBlow bottle pressure25-35kg/cm2Higher -pressure gas consumption1500 Ltr/min
Frozen water specification

 Work pressure5-6 kg/cm2Temperature range10Consumption5000kcal/hrFrozen water flow30Ltr/minMachine specification
 Size of the machine2.25x1.6x1.7 (m)Weight of the machine2.5ton
