Plastic Pet/PP/HDPE/LDPE/LLDPE/ABS/PS/PVC/PC/BOPP ...
ZHANGJIAGANG RETECH MACHINERY CO., LTD.- After-sales Service：Yes
- Warranty：12 Months
- Material Processed：Plastic Bottle
- Plastic Type：PET
- Screw：Crusher&Shredder
- Automation：Automation
Base Info
- Model NO.：TPWL300~3000
- Computerized：Customized
- Certification：ISO9001:2008, CE
- Color：Could Be Customized
- After-Sale Service：Eers Available to Service Machinery Overseas
- Material of Recycling Machines：Stainless Steel
- Electric Grid：3p 220V~440V 50 or 60Hz
- Transport Package：Wrap Film
- Specification：TSWL300~3000
- Trademark：RETECH
- Origin：China
- HS Code：8477800000
- Production Capacity：300~3000kg,H
Description
Overview
Product Description
2. What are main parts of the PET bottle washing recycling plant?
The PET bottle washing recycling plant is mainly consists of:
Belt conveyer--- bale opener--- belt conveyer-pre-washer--- belt conveyer--- mechanical label separator--- manual sorting--- metal detector--- belt conveyer--- crusher--- screw conveyer--- floating washer--- screw conveyer--- hot washer--- screw conveyer--- high speed friction washer--- screw conveyer--- floating washer--- screw conveyer--- vertical dewatering machine--- drying system--- zigzag label separator--- storage silo--- operating panel
The up structure of the flowing chart is just a standard we recommend, it can be adjusted due to the customers' material situation and requirements.
3. What capacity of the PET bottle washing recycling plant?
300-3000kg/h for single washing line
4. What power of the PET bottle washing recycling plant?
150kw~350kw
5. How much water does it need of the PET bottle washing recycling plant?
3~8T per hour
6. How large space does it need for a PET bottle washing recycling plant?
100~400 square meters
7. Do you offered training of the PET bottle washing recycling plant?
Yes, we can training your worker.
8. Can you send engineers to our factory to help us install the PET bottle washing recycling plant?
Surely it is no problem.
9. Do you offer all the documents for the PET bottle washing recycling plant? Such as the manual operating.
Yes, we will offer you the complete documents for the PET bottle washing recycling plant.
10. What is the situation of the final products from the PET bottle washing recycling plant?
The PET flakes from the PET bottle washing recycling plant moisture level lower than 1%, the PVC level lower than 200PPM, the dirties level lower than 300PPM.
11. What certifications do you have for the PET bottle washing recycling plant?
We have CE and ISO9001 certification for the entire PET bottle washing recycling plant.
12. What is material of the PET bottle washing recycling plant?
The parts contacted with water are made of stainless steel SUS 304 for the entire PET bottle washing recycling plant.
13. Does it easier and costly to maintenance for the PET bottle washing recycling plant.
It is easier and not costly. We will train your workers and offer the manual operating.
14. What about the electrics of the PET bottle washing recycling plant?
Our standard electric parts are famous brand, such as Siemens Contactor, Fuji inverter… and also they are customized for the PET bottle washing recycling plant.
15 workers needed for the PET bottle washing recycling plant?
4-12 people
plasticmachine.en.made-in-china.com

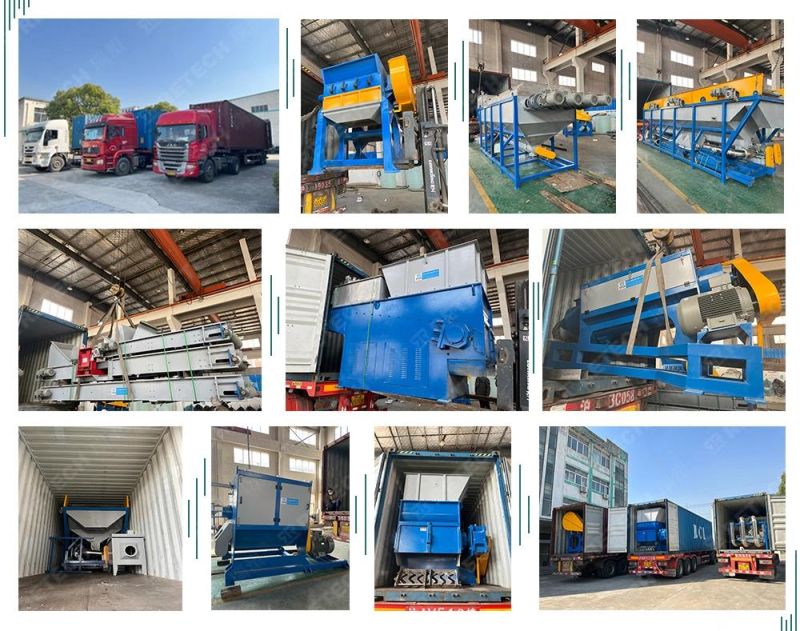

Detailed Photos
Product Parameters
Certifications
Our Advantages
1. What is the function of the PET bottle washing recycling plant?
The PET bottle washing recycling plant is mainly used to process PET beverage bottles. The line includes two functions, one function is to separate the PE caps and PVC or PP caps out to get pure PET flakes finally. The other one function is to wash the PET flakes clean, at end to get clean flakes.2. What are main parts of the PET bottle washing recycling plant?
The PET bottle washing recycling plant is mainly consists of:
Belt conveyer--- bale opener--- belt conveyer-pre-washer--- belt conveyer--- mechanical label separator--- manual sorting--- metal detector--- belt conveyer--- crusher--- screw conveyer--- floating washer--- screw conveyer--- hot washer--- screw conveyer--- high speed friction washer--- screw conveyer--- floating washer--- screw conveyer--- vertical dewatering machine--- drying system--- zigzag label separator--- storage silo--- operating panel
The up structure of the flowing chart is just a standard we recommend, it can be adjusted due to the customers' material situation and requirements.
3. What capacity of the PET bottle washing recycling plant?
300-3000kg/h for single washing line
4. What power of the PET bottle washing recycling plant?
150kw~350kw
5. How much water does it need of the PET bottle washing recycling plant?
3~8T per hour
6. How large space does it need for a PET bottle washing recycling plant?
100~400 square meters
7. Do you offered training of the PET bottle washing recycling plant?
Yes, we can training your worker.
8. Can you send engineers to our factory to help us install the PET bottle washing recycling plant?
Surely it is no problem.
9. Do you offer all the documents for the PET bottle washing recycling plant? Such as the manual operating.
Yes, we will offer you the complete documents for the PET bottle washing recycling plant.
10. What is the situation of the final products from the PET bottle washing recycling plant?
The PET flakes from the PET bottle washing recycling plant moisture level lower than 1%, the PVC level lower than 200PPM, the dirties level lower than 300PPM.
11. What certifications do you have for the PET bottle washing recycling plant?
We have CE and ISO9001 certification for the entire PET bottle washing recycling plant.
12. What is material of the PET bottle washing recycling plant?
The parts contacted with water are made of stainless steel SUS 304 for the entire PET bottle washing recycling plant.
13. Does it easier and costly to maintenance for the PET bottle washing recycling plant.
It is easier and not costly. We will train your workers and offer the manual operating.
14. What about the electrics of the PET bottle washing recycling plant?
Our standard electric parts are famous brand, such as Siemens Contactor, Fuji inverter… and also they are customized for the PET bottle washing recycling plant.
15 workers needed for the PET bottle washing recycling plant?
4-12 people
