• Model NO.：SEVH550~3300
• Clamping Way：Hydraulic
• Automation：Automatic
• Computerized：Computerized
• Certification：CE, ISO9001:2008, QS
• Clamping Force：550~3300ton
• Clamping Stroke：1700~3700mm
• Max Daylight Opening：1700~3700mm
• Transport Package：Wooden Box or Customized
• Specification：7.7*2.2*2.3m
• Trademark：Elite,customized
• Origin：Mainland China
• HS Code：8477101090
• Production Capacity：2000 Units Per Year

ModelUnitSEVH550SEVH650SEVH800SEVH1000SEVH1400SEVH1800SEVH2200SEVH2800SEVH3300Internation Designationmm5358/5503469/6505588/8007058/100017443/140028848/180028848/220064263/280078777/3300Screw Diametermm958595110140170170210210Theoretical Injection Pressurekg/cm2148316501714145716501445144514391481Theoretical Injection Volume(PS)g3260215029104372874018017180174030348005oz11575.9102.8154.5308.863663614221696Screw L:D-222222222222222222Screw Strokemm51042046051063088088012901400Theoretical Injection Speedmm/s9796849182828267.462.7Screw Speedr.p,m1191391179194626252.548.5Shot Thrustton9.89.812.812.82126262626Theoretical Injection Ratecc/sec68754359586412851869186923332835Theory Plasticizing Capacityg/sec939291.894180195195240289Clamping Form-HydraulicHydraulicHydraulicHydraulicHydraulicHydraulicHydraulicHydraulicHydraulicClamping Forceton550650800100014251800220028003300Clamping Strokemm1700-1850-2130-2750-2900-3700-3700-3700-4000-The Maximum Open-Spacingmm170018502130275029003700370037004000Yung Modulus (min-max)mm400~900450~1000450~1180500~1290590~1490700~1700800~1800900~19001000~2000Lever From Inside (W*H)mm*mm860*860920*920980*9801120*10201400*11201650*14001830*16002030*17002200*1900Platen Dimensionsmm1220*12201310*13101380*13801670815702060*17802390*21402620*23902870*24853120*2730Hydraulic Ejector Forceton131717263242465255Ejection Strokemm250300300320350380450500550Thimble Quantitypoint132121212525333333Oil Pressure System Pressurekg/cm2175175175175175175175175175Pump Motor PowerKW64648755.4*255.4*370*370*3280330Electric PowerKW53.353.367.883103143143181237Power RequirementsA2082082773474886366368021019Temperature Control Areazones88891011111111Fuel Tank CapacityL100010001210135018002160265030003900Weightton20.5252940.9(10.1+30.8)62(16+46)88(26+62)118(28+90)139(39+100)198(48+150)Dimensionsm*m*m7.7*2.2*2.38.7*2.4*2.548.9*2.4*2.611.15*2.6*312.9*3,2*3.314*3.5*3.615.5*3.8*3.817.2*4.4*4.418.8*4.9*4.1Note: The company reserves the right to modify the technical parameters without prior notice.

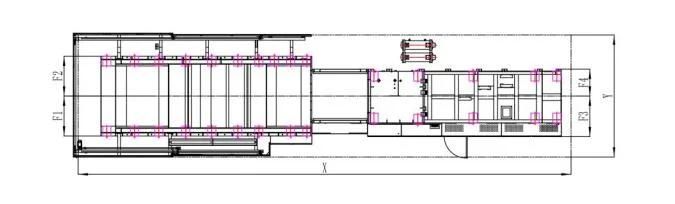

Overall Dimension:

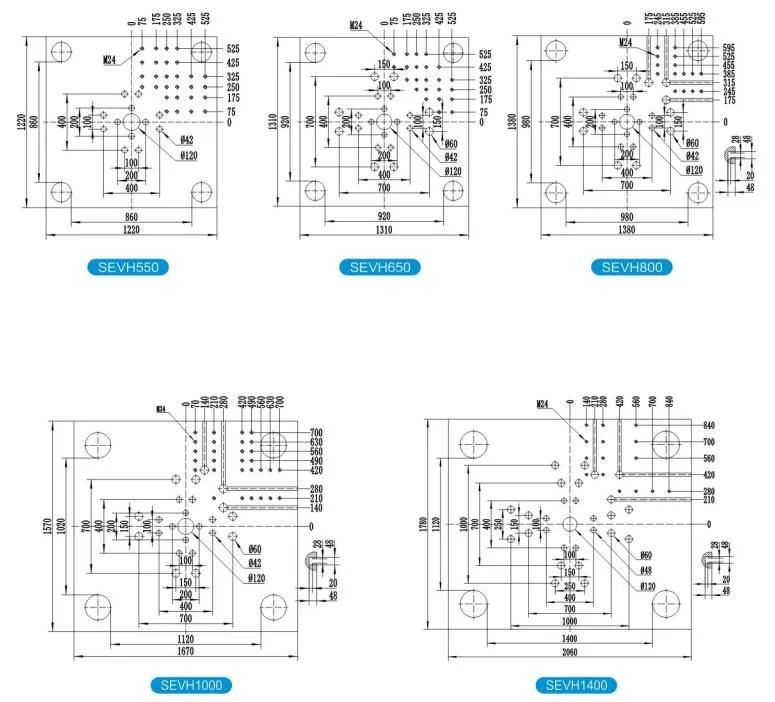

Template Size:
