110-315mm Plastic Extruder Plastic Double Wall Corrugated Pipe Water Gas HDPE PP Pipe ...
Zhangjiagang Camel Machinery Co., Ltd.- Warranty:1year
- Product Type:PE Water-supply Pipes
- Screw No.:Single-screw
- Automation:Automatic
- Computerized:Computerized
- Certification:CE, ISO9001:2008, UL, QS, GMP
Base Info
- Model NO.:315
- Customized:Customized
- Condition:New
- After-sales Service:Provide
- Control System:PLC
- Screw & Barral Material:38CrMoAl, Bimetallic, Nitrogen Treatment
- Electric Elements:Siemens or Schneider
- Motor:Siemens Brand
- Inverter:ABB
- Bearing:SKF
- Pipe Diameter:16-630mm
- Material:304 Stainless Steel
- Voltage:380V 50Hz 3phase (Customized)
- Name:Double Wall Corrugated Pipe Machine
- The Other Name:Double Wall Corrugated Pipe Extruder
- Namely:Double Wall Corrugated Pipe Line
- Contactor:Siemens Schneider
- Gear Box:Jc Brand
- Temperature Controller:Omron Rkc
- Transport Package:Standard Shipping Package
- Specification:35CBM
- Trademark:Camel
- Origin:Zhangjiagang, Jiangsu
- HS Code:8477800000
- Production Capacity:150 Sets,Year
Description

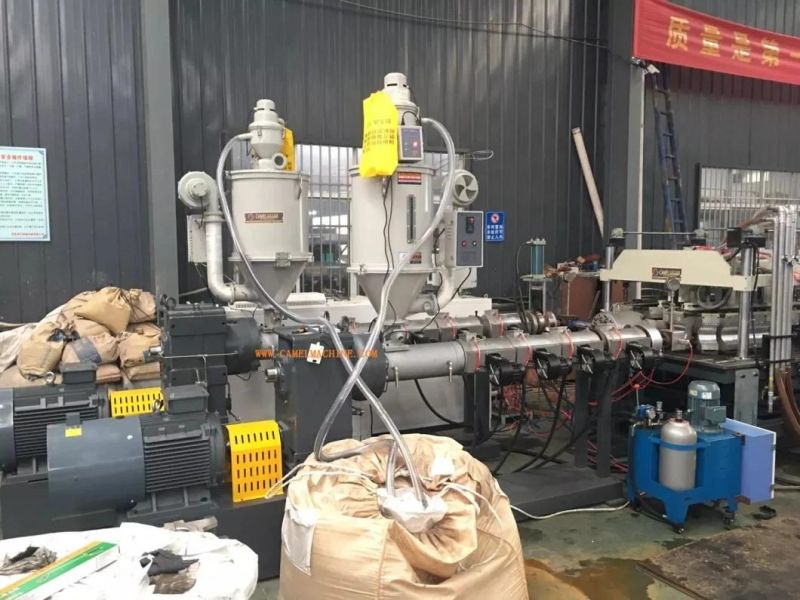

0.3-3.0Details Images EXtruder .Adopt L/D ratio 38:1 screw for virgin material. Adopt L/D 33:1 screw for recycled material. We also have choice of twin screw and barrel for other material such PVC powder, PP powder, etc. Provide suitable extruder for different customer requirements.

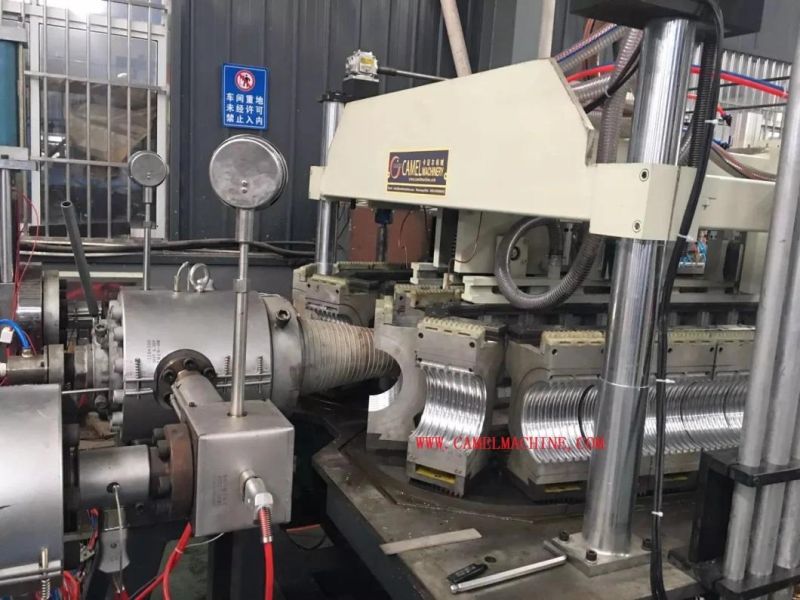

Die Head and Calibration sleeve.Both outer layer and inner layer are extruded inside die head. Each material flow channel inside die head is placed evenly. Each channel is after heat treatment and mirrorpolishing to ensure material flow smoothly. Also die head provides compressed air between both layer.Calibration sleeve is used to cool inner layer to form smooth and flat pipe inside. Pressure water flows inside calibration sleeve to have good cooling effect. Vacuum is created on calibration sleeve surface when producing big diameter pipe, ensure inner pipe roundness.

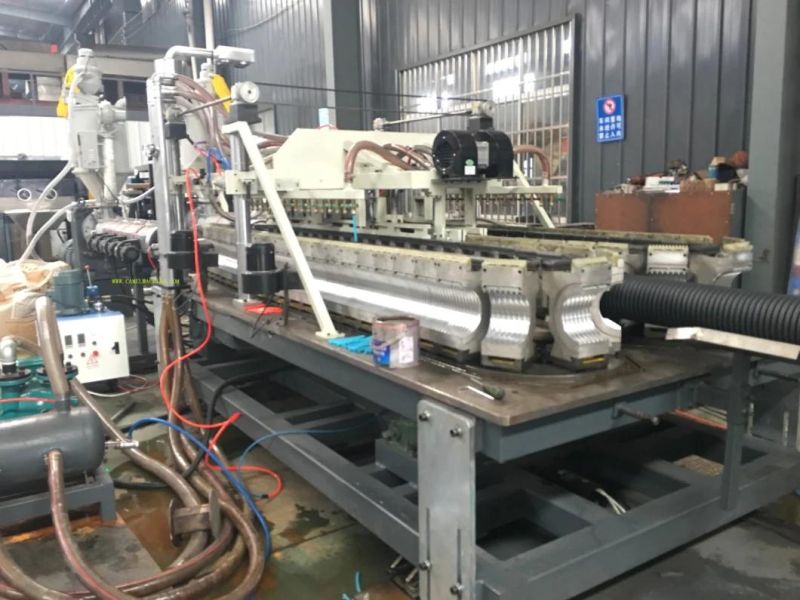

Corrugator.Corrugator is used to place and move corrugated mould. Vacuum is created to absorb outer layer into corrugated mould to form corrugate shape. By moving corrugated mould, pipe is also pulled out from corrugator.

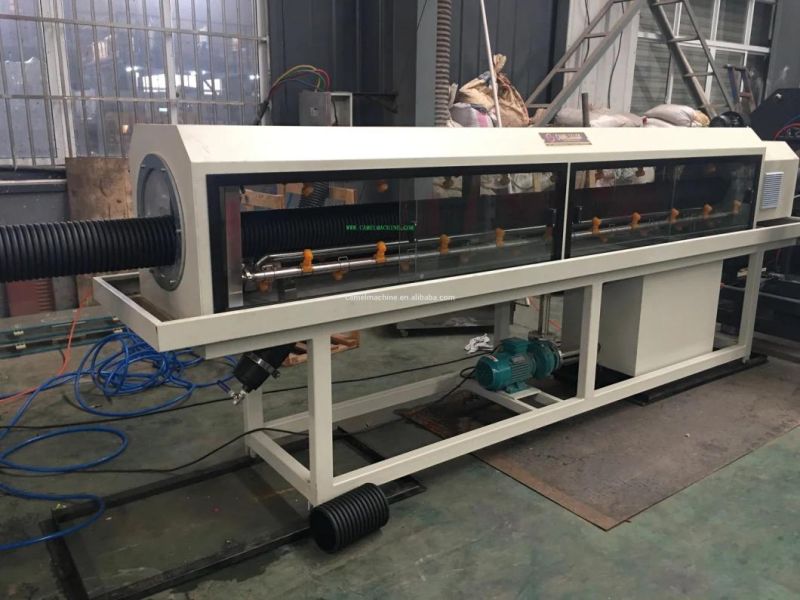

Cooling tank.Cooling tank is used to cool pipe .

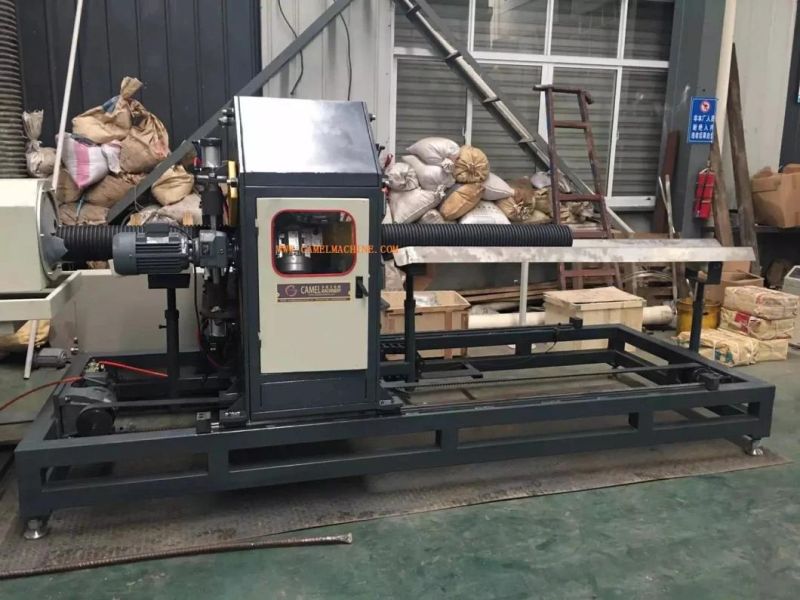

Cutter.Cutter controlled by Siemens PLC, double knife cutter. Equipped with precise inspection device ensures the cutter accurately placing at the correct position of double wall corrugated pipe. Whole cutting process is accurate and fully automatic.
Our Company
FAQ of double wall corrugated pipe making machine
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 45-60 days if the goods are not in stock, it is according to what kind of machine you need
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,70% balance before shipment or Negotiable
If you have another question, please feel free to contact us as below
