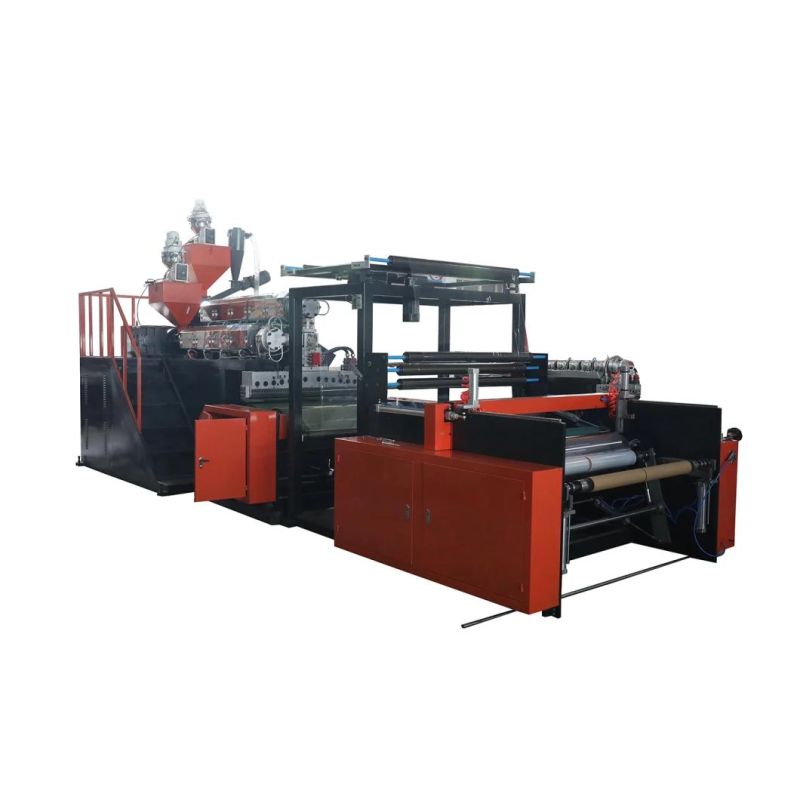

Double Layer Co-Extrusion Stretch Film Making Machine
Ruian Fangtai Machinery Co., Ltd.- Type：Pipe Extruder
- Plastic Processed：PE
- Product Type：Granulating Extruder
- Feeding Mode：Multiple Feed
- Assembly Structure：Integral Type Extruder
- Screw：Twin-Screw
Base Info
- Model NO.：FT500, FT1000
- Engagement System：Full Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Don′t Exhaust
- Automation：Automatic
- Computerized：Computerized
- Transport Package：wooden case
- Specification：CE
- Trademark：fangtai
- Origin：china
- HS Code：84478000
- Production Capacity：1 set, month
Description
Basic Info.
Model NO. FT500, FT1000 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Transport Package wooden case Specification CE Trademark fangtai Origin china HS Code 84478000 Production Capacity 1 set/ monthProduct Description
use

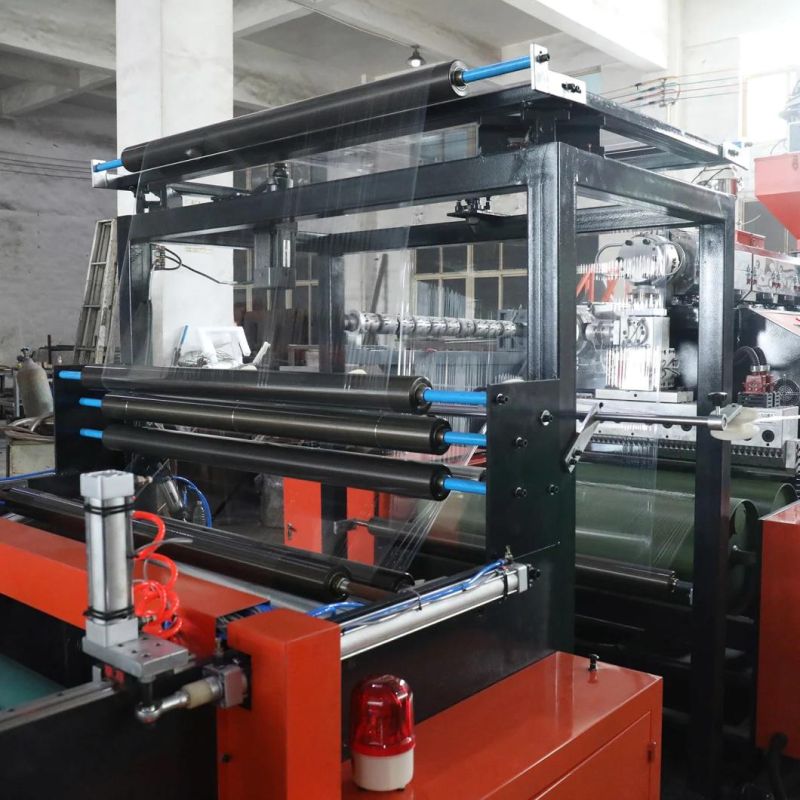

This machine uses LDPE and LLDPE to produce casting stretch film(could produce one-side sticky film and the other side normal), adopting double screws and double two hoppers. This co-extrusion stretch film is widely used in packing area for architecture, auto parts, hardware parts,etc.
Characteristics
1. Screw and cylinder are all made of 38 CrMoALA after nitrogen treatment, which has an advantage of corrosion resistance and endurance, etc.
2. The cooling device adopts cycle water cooling which provide the best transparent effect of the stretch film

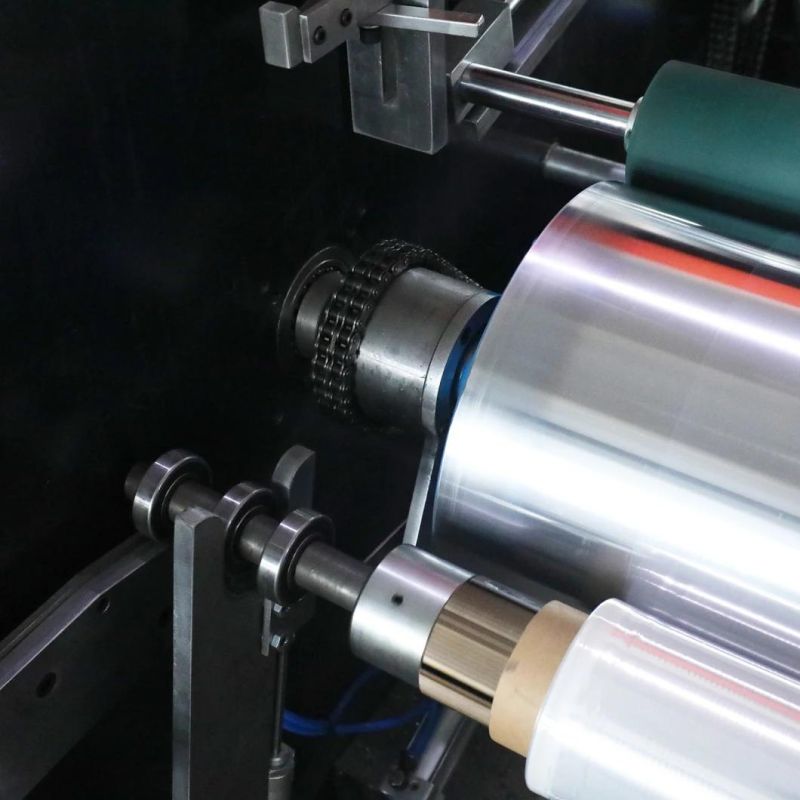

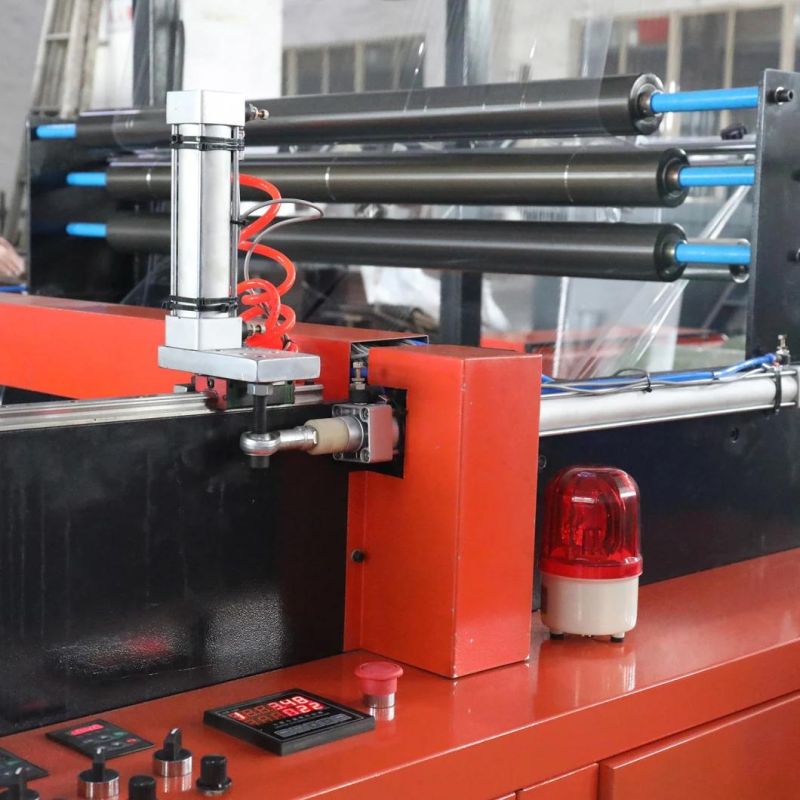

3. Rewinder adopts with friction-rewinding-type, with cutter device for edge correcting.
OPTIONAL EQUIPMENT
1) AUTO LOADER
2) AIR SHAFT
3) AUTO DRY HOPPER
4) ELECTRIC CHANGE
5) HYDRAULIC NET CHANGER
6) GLUE PUMP
7)AUTO CHANGER
| Model | FT-1000double-layer | FT-1500double-layer |
| Diameter of Screw Stem | φ65mm*2 | φ75mm*2 |
| L/D Ration of Screw | 28:1 | 28:1 |
| Material of Screw & Barrel | 38 CrMoALA | 38 CrMoALA |
| Rational Speed of Screw Stem | 10-120rpm | 10-120rpm |
| Width of T-die Head | 1250 mm | 1800 mm |
| Heating Way | Casting-aluminum heating device | Casting-aluminum heating device |
| Width of Traction Roller | 1250 mm | 1800 mm |
| Width of Products | 1000mm | 1500mm |
| Thickness | 0.015-0.05mm | 0.015-0.05mm |
| Main motor power | 18.5kw*2 | 22kw*2 |
| Heating Power | 51kw | 72kw |
| Max. output(kg/h) | 100 | 150 |
| Machine weight | 5.5T | 7T |
| Overall Dimensions (L*W*H) | 7500*4500*3200mm | 10000*6000*5000mm |
