Plastic PE Film Blowing Machine Extruder Blown Film Machine
Ruian Queensense Machine Co., Ltd.- Raw Material：PE
- Maximum Folding Width of Film：1200mm
Base Info
- Model NO.：SJ-A50,55,65,65-1
- Screw Diameter：65mm
- Automation：Non-Automatic
- Computerized：Non-Computerized
- Machine Weight：2t
- Certification：CE
- Film Width：1200mm
- Film Thickness：0.008-0.10mm
- Rewinder Station：Single Station
- Diameter：50-65
- Name：Plastic PE Film Blowing Machine
- Warranty：One Year
- Material：HDPE , LDPE
- Max.Extrudsion Output：35-70kgs
- Size：100-1200mm
- Model：1200mm
- Transport Package：Seaworthy
- Specification：CE
- Trademark：QUEENSENSE
- Origin：CHINA
- HS Code：8477309000
- Production Capacity：35-80kg,h
Description
Basic Info.
Model NO. SJ-A50/55/65/65-1 Screw Diameter 65mm Automation Non-Automatic Computerized Non-Computerized Machine Weight 2t Certification CE Film Width 1200mm Film Thickness 0.008-0.10mm Rewinder Station Single Station Diameter 50-65 Name Plastic PE Film Blowing Machine Warranty One Year Material HDPE , LDPE Max.Extrudsion Output 35-70kgs Size 100-1200mm Model 1200mm Transport Package Seaworthy Specification CE Trademark QUEENSENSE Origin CHINA HS Code 8477309000 Production Capacity 35-80kg/hProduct Description
Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.

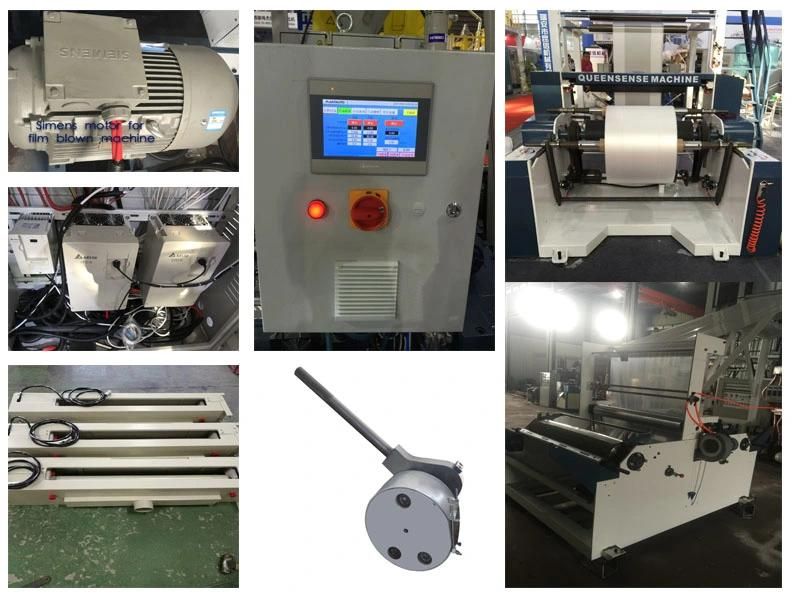

Optional equipment:
1. Auto load
2. Air compressor
3. Special die
4. Die rotary device
5. Bouble sides winder
6. Up and down
Plastic PE film blowing machine :
| Model | A50 | A55 | A65 | A65-1 |
| Diameter of screw | φ 50 | φ 55 | φ 65 | φ 65 |
| Rcduced diameter of film(mm) | 100-600 | 200-800 | 300-1000 | 400-1200 |
| Single-face Thickness of film(mm) | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 |
Max. Extrusion(Kg/h) | 35 | 50 | 65 | 80 |
| L/D | 28: 1 | 28: 1 | 28: 1 | 28: 1 |
| Power of main moto(kw) | 11 | 15 | 18.5 | 22 |
| Power of Tracion main moto(kw) | 0.75 | 1.1 | 1.5 | 1.5 |
| Heating Power(kw) | 15 | 18 | 23 | 27 |
Outline diameter(L x W x H) (mm) | 4800 x 1900 x 4100 | 5500 x 2100 x 4700 | 6500 x 2300 x 4900 | 6500 x 2500 x 5600 |
| Weight(T) | 1.5T | 2T | 2.3T | 2.6T |
