Wood Shredder/Wood Pallet Shredder/Wood Single Shaft Shredder/Wood Crusher/Wood Crushing ...
Changshu Shi Shouyu Machinery Co., Ltd.- After-sales Service：One Year Warranty, Life-Long Maintenance!
- Type：Large Wood Shredder,Wood Shredder Machine
- Raw Material：Wood, Plastic, Metal, Glass, Waste.
- Structure：Shredding
- Knife Classification：Piece Knife Crusher
- Knife Roll：Solid Knife Roller
Base Info
- Model NO.：SR1600
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008, SGS,BV
- External Dimensions(mm)：4100X3300X2700
- Capacity：500-20000kg,H
- Power：18.5-2*90kw
- Weight：1600-12500kg
- Transport Package：Wooden Package,Film Package,Steel Frames Package,C
- Specification：CE,ISO9001,SGS
- Trademark：SOYU
- Origin：China
- HS Code：84778000
- Production Capacity：500sets,Year
Description
Basic Info.
Model NO. SR1600 Automation Automatic Computerized Computerized Certification CE, ISO9001:2008, SGS/BV External Dimensions(mm) 4100X3300X2700 Capacity 500-20000kg/H Power 18.5-2*90kw Weight 1600-12500kg Transport Package Wooden Package/Film Package/Steel Frames Package/C Specification CE/ISO9001/SGS Trademark SOYU Origin China HS Code 84778000 Production Capacity 500sets/YearProduct Description

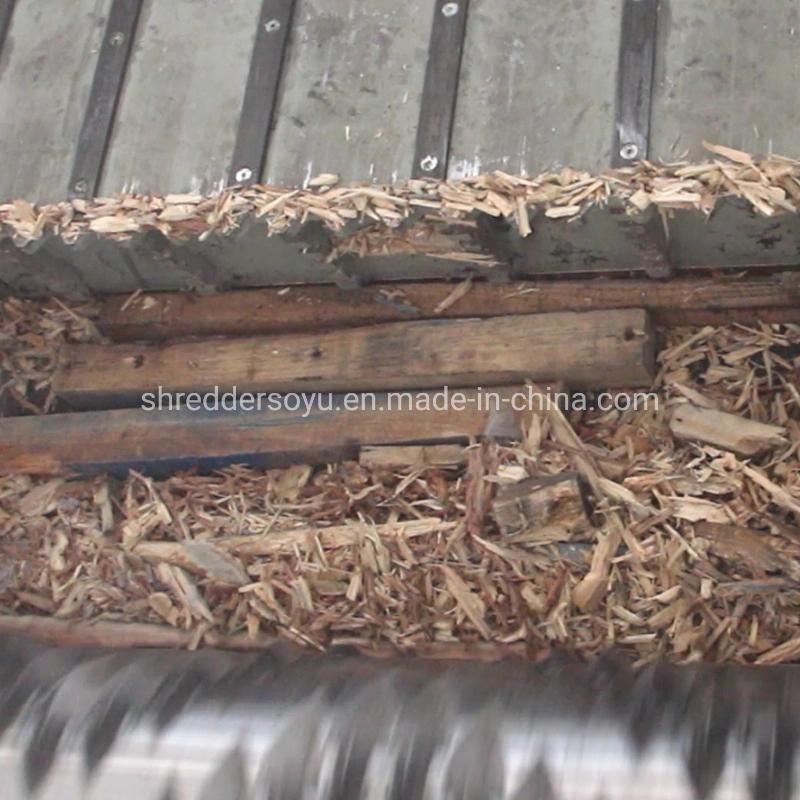

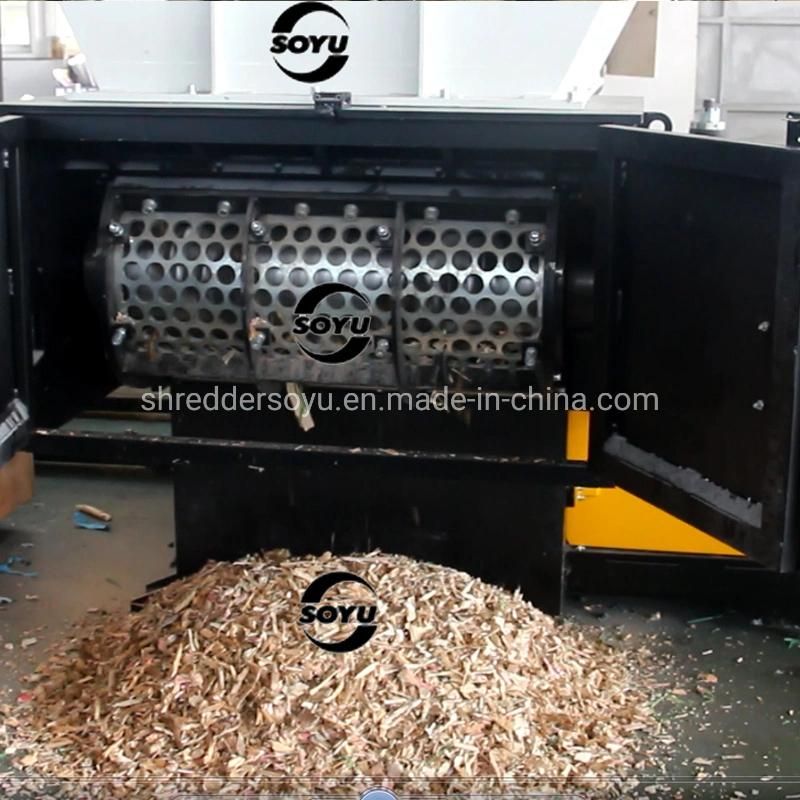

Wood Shredder/Wood Chipper Shredder Machine/Wood Pallet ShredderDesign according to the feature and the performance of wood, wood pallet and tree roots, with PLC control. To achieve the flexible and efficient state on the machine's hydraulic system and drive system. The wood shredder use close-packed square structure rotor blades, can be used multiple times and extending the blade life. Adopt frequency controlled hydraulic system, make highly efficiency. This type shredder use dual drives, and the fluid couplings with flexible drive, make the machine runs smoothly with slow shock, it improved the life of the machine. The product capacity can be reach 0.5~20ton/hour.
SOYU provides a wide selection of industrial shredders and crushers to satisfy your material size reduction requirements, which feature stable performance, high production efficiency and easy maintenance. We pay attention to every detail of the machine to help you improve productivity, save energy and maximize economic benefits. In addition to standard industrial shredder and crushers, customized size reduction machines can also be offered according to your material shredding requirements. A variety of screens and rotors are selectable to achieve the best processing performance.

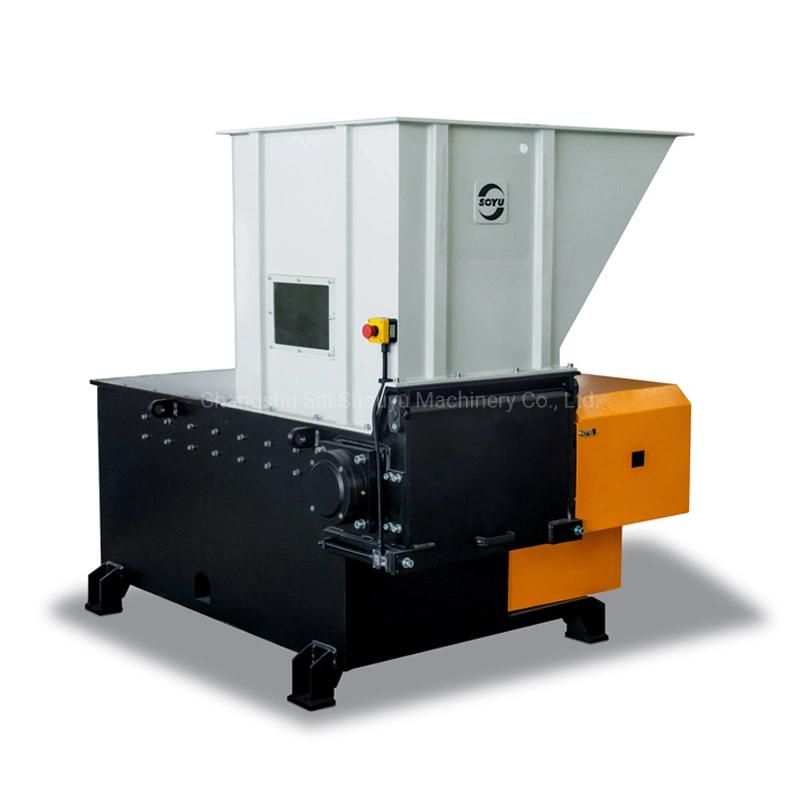

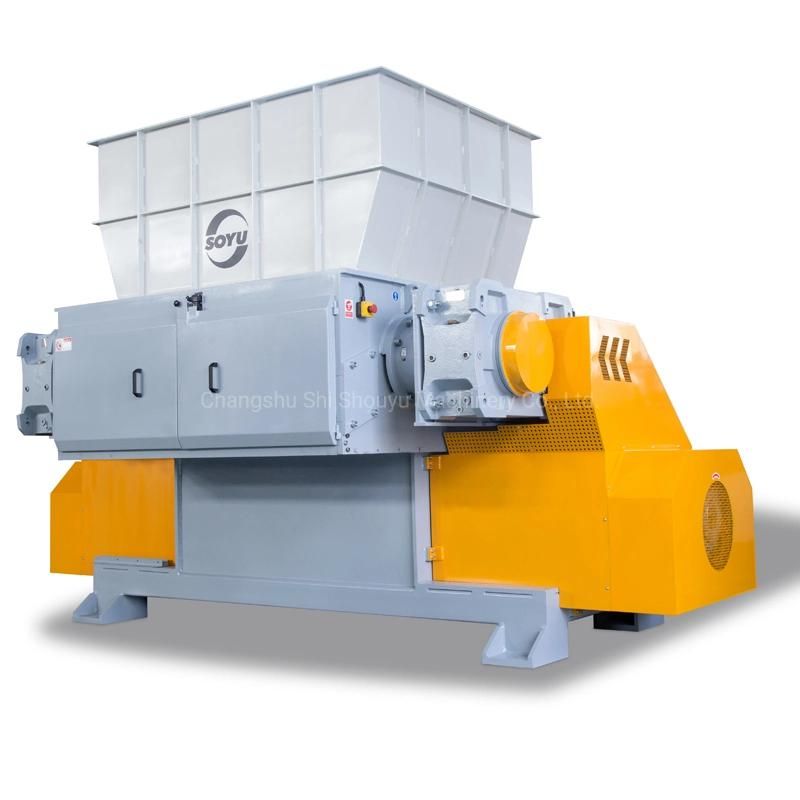

Single Shaft Shredder
| Model | SR600 | SR750 | SR900 | SR1100 |
| Main shaft speed(rpm) | 73 | 73 | 73 | 73 |
| Ram travel(mm) | 500 | 820 | 820 | 820 |
| Rotor diameter(mm) | Φ220 | Φ400 | Φ400 | Φ400 |
| Number of rotor blades(pcs) | 23 | 44 | 52 | 66 |
| Number of fixed blades(pcs) | 4 | 6 | 6 | 8 |
| Discharge height(mm) | 500 | 610 | 610 | 610 |
| Screen holes diameter(mm) | 40 | 40 | 40 | 40 |
| Motor power(kw) | 18.5 | 37 | 45 | 55~75 |
| Hydraulic power(kw) | 1.5 | 2.2 | 2.2 | 5.5 |
| Cutting chamber dimensions(mm) | 540x600 | 830x708 | 830x840 | 830x1071 |
| Overall dimensions(LxWxH)(mm) | 1800x1350x1700 | 2810x2000x2115 | 2810x2100x2115 | 2810x2650x2115 |
| Weight(kg) | Approx 1600 | Approx 4460 | Approx 4560 | Approx 5464 |
| Model | SR1400 | SR1600 | SR2100 | SR2500 |
| Main shaft speed(rpm) | 73 | 73 | 73 | 73 |
| Ram travel(mm) | 820 | 1000 | 1000 | 1200 |
| Rotor diameter(mm) | Φ400 | Φ480 | Φ480 | Φ660 |
| Number of rotor blades(pcs) | 80 | 94 | 122 | 150 |
| Number of fixed blades(pcs) | 10 | 12 | 16 | 20 |
| Discharge height(mm) | 610 | 950 | 950 | 950 |
| Screen holes diameter(mm) | 40 | 40 | 40 | 40 |
| Motor power(kw) | 75~90 | 2x55~2x75 | 2x75~2x90 | 2x90~2x110 |
| Hydraulic power(kw) | 5.5 | 7.5 | 7.5 | 11 |
| Cutting chamber dimensions(mm) | 830x1302 | 1000x1533 | 1000x1995 | 1200x2457 |
| Overall dimensions(LxWxH)(mm) | 2810x2890x2115 | 3475x4100x2700 | 3475x4900x2700 | 3475x5400x2700 |
| Weight(kg) | Approx 6200 | Approx 10800 | Approx 13000 | Approx 16000 |
