• Model NO.：TSE
• Assembly Structure：Integral Type Extruder
• Screw：Twin-Screw
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Keyword：Plastic Extruder
• Screw Design：Double
• Voltage：220V,380V
• Color：Requiremet
• Brand Name：Kairong
• Material：PP PE PVC Pet PC
• Place of Origin：Nanjing,Jiangsu, China (Mainland)
• Transport Package：Wooden Case
• Specification：TSE
• Trademark：kairong
• Origin：Nanjing, Jiangsu, China
• Production Capacity：200-500kg,H

Basic Info.

Model NO. TSE Assembly Structure Integral Type Extruder Screw Twin-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Keyword Plastic Extruder Screw Design Double Voltage 220V/380V Color Requiremet Brand Name Kairong Material PP PE PVC Pet PC Place of Origin Nanjing,Jiangsu, China (Mainland) Transport Package Wooden Case Specification TSE Trademark kairong Origin Nanjing, Jiangsu, China Production Capacity 200-500kg/H

Product Description

Product Description
1. Plastic pellet machine extruder Parameter

Model	Diameter	L/D	Screw rotary	Motor Power	Torque	Capacity
TSE-40B	41mm	32-52	600r/min	30kw	239	90-150kg/h
TSE-52B	51.5mm	32-56	600r/min	55kw	438	225-300kg/
TSE-65B	62.4mm	32-60	600r/min	90kw	716	200-300kg/h
TSE-75B	71mm	32-64	600r/min	132kw	1050	300-600kg/h
TSE-95B	93mm	32-64	600r/min	250kw	2387	800-1200kg/h

2. Representative Materials

Process	Representative materials
Mixing nature-changing	PE/ PP/ PS+SBS; PA+EPDM; PP+NBR; EVA +Silicon rubber, etc.
	PE/ PA/ PC/ CPE+ABS(alloy); PBT+PET; PP+ PE, etc.
Filling nature-changing	PE/ PP/ EVA, ect. + Calcium carbonate/ talcum powder/ titanic powder; ABS/PC/PS, etc. +aluminum hydroxide/ magnesium hydroxide/ antimony oxide.
	PP/ PA/ ABS+ ferrous powder/ sulphuric powder/ ceramic powder
Functional machine pellets	PP/ PA/ ABS/ PBT, etc+ anti-burning agent  and other auxiliary agents: combustion-supporting machine pellets
	PE/ PP/ PS, etc+ starch: de-composing machine pellets
	PE+ fog-preventing dipper, stabilizer: dual-prevention machine pellets
	PE/ EVA/ ABS, etc.+ carbon black; black machine pellets
Colored machine pellets	PE/ PP/ ABS/ AS/ PA/ EVA/ PET +pigment and auxiliary
Intensified glass fibres  and carbon fibres	PP/ PBT/ ABS/ AS/ PA/ PC/ POM/ PPS/ PET, etc. + long fires/ small fibres/ carbon fibres/ crystals and so on, etc.

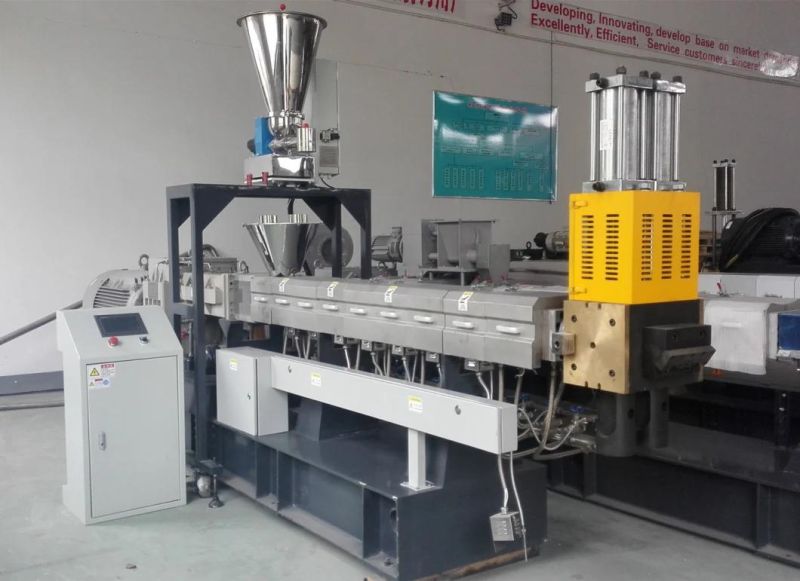

3. TSE Series Twin Screw Plastic Extruder Machine Product Display :


4. Characteristics and spare parts of the extrusion machine
1.The gearbox
·  New-style project of parallel three-axises driving makes the convey axis, convey chain, decelerate and the torque assignment get together, which keep it compact, and the key bearings are imported.
· The select material of drive components is dainty, including super intension alloy cementiteing steel, cementiting and quenching, gear grinding technics, strengthening of tooth face. So they can ensure high torque, high precision and low noise.
· Soakage and coerce lubrication integrate smoothly. When the hydraulic circuit is over pressed, it alarms.
2.The feeding system
· Metering feeders are equipped with single screw, twin screw, hollow screw, forced-feeding, side feeding, liquid-adding system,etc.
3.Screw
· The screw elements and then kneading blocks are designed accurately, by precise processed, agile combination, with interchangeability, which can fulfill efficient self-cleaning, transmission, compounding, pressure-forming.
· The screw material is made of high tool steel 38CrMoALA or W6Mo5Cr4V2 by special heat-treament.
4.The barrel
· Eurostyle rectangle barrel, reflux refrigeration is optimized and disposed, which makes temperature difference in C areas smaller.
· According to the material and special techinics demands, the material of cylinder can use high quality nitrided steel, corrosion proof or antifriction with corresponding process.
5.The heater
· Innovated design of heater tightened style insures high efficiency of heat transfer and high longervity of heater.

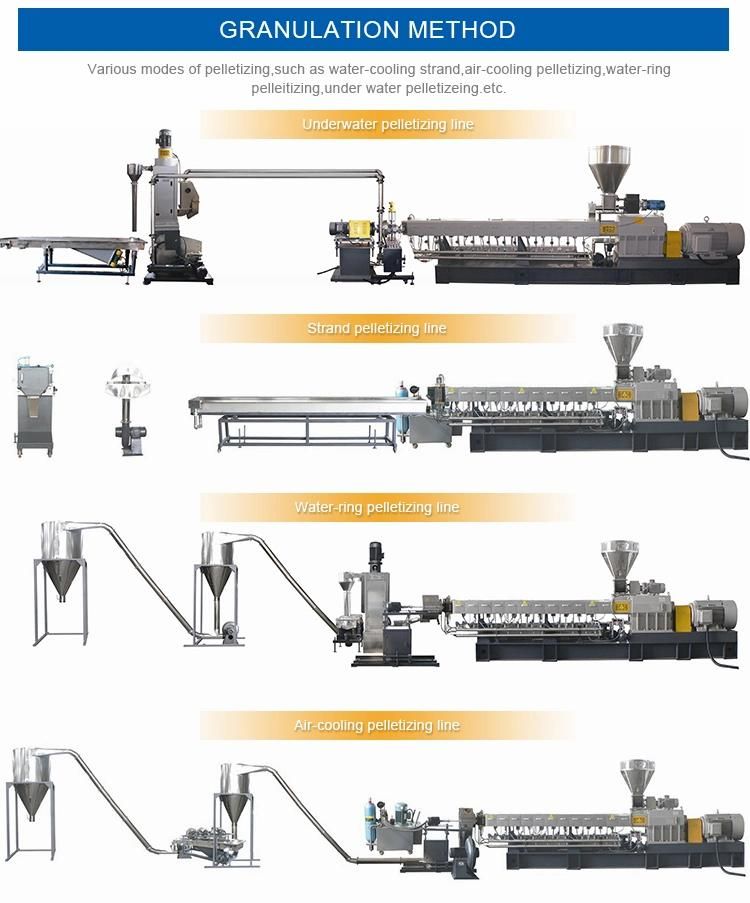

6.Pelletizing
· Variou modes of pelletizing, such as water-cooling strand, air-cooling pelletizing, water-ring pelletizing, under water pelleting, etc.

Work Line



Packaging & Shipping
Our twin screw extruder machine is fisrt painted with anticorrosive oil, and then wrapped in the plastic film before it is finally packed in the wooden case.



1. Q: How can we go to your factory?
R:Our factory is located in Nanjing jiangning, Jiangsu Province, China,
1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport; about 20 mintues to our company
2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.about 8 mintues to our company
All our clients, from domestic or abroad, are warmly welcome to visit us!
2. Q: Why chose us?
R: 1)Quick reply. Once we received the inquiry from Alibaba, we will reply you within 24hours.
2)Quick manufacturing time. To guarantee the quality, the machine will be finished within 60days.
3) Before delivery, the machine will be tested to ensure every part is ok.
4) Wooden case package to ensure no damage during shipping.
3.Q:What is the payment?
R: 1) T/T payment; 2) LC;
