Automatic Plastic Film Paper Slitting Machine for Sale
Zhejiang Deguang Machinery Co., Ltd.- Frame：Iron
- Color：White
- Unwinding Paper Core：76mm or 152mm
- Rewinding Shaft Diameter：76mm or 152mm
- Min Slitting Width：30mm
- Unwind Diameter：800mm
Base Info
- Model NO.：GSFQ1300
- Rewind Diameter：600mm
- Power：15kw
- Weight：3800kg
- Dimension：4200*2800*1800mm
- Transport Package：Film Packing, Wooden Packing
- Specification：CE, SGS
- Trademark：Deguang
- Origin：China
- HS Code：84778000
- Production Capacity：30 Sets,Month
Description
Basic Info.
Model NO. GSFQ1300 Rewind Diameter 600mm Power 15kw Weight 3800kg Dimension 4200*2800*1800mm Transport Package Film Packing, Wooden Packing Specification CE, SGS Trademark Deguang Origin China HS Code 84778000 Production Capacity 30 Sets/MonthProduct Description

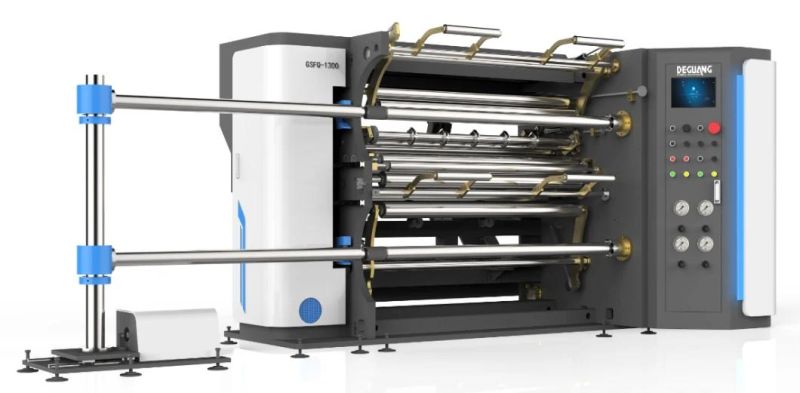

Automatic Plastic Film Paper Slitting Machine for Sale
Video link:
https://deguangmachine.en.made-in-china.com
Features:
1. Unwind pneumatic brake control, hydraulic loading
2. Servo control ultrasonic EPC device
3. Main motor servo motor
4. Two rewinding pneumatic friction shaft, servo motor control
5. Laser paper core positioning device
6. Statric electric elimination device
7. Unloading arm which is convenient
8. Razor blade and circular blade two slitting type
9. Whole machine PLC control with touch screen, unwind and rewind tension automatically controlled
Specification:
| Max mechanical speed | 450m/min |
| Max slitting speed | 400m/min |
| Max roll width | 1350mm |
| Min slitting width | 30mm |
| Max unwinding diameter | 800mm |
| Max rewinding diameter | 600mm |
| Suitable material | 10-200um film and paper |
| Total Power | 11kw |
| Weight | 4000kg |
| Overall Dimension(LxWxH)(mm) | 4200x2820x1800 |
Slitting sample:

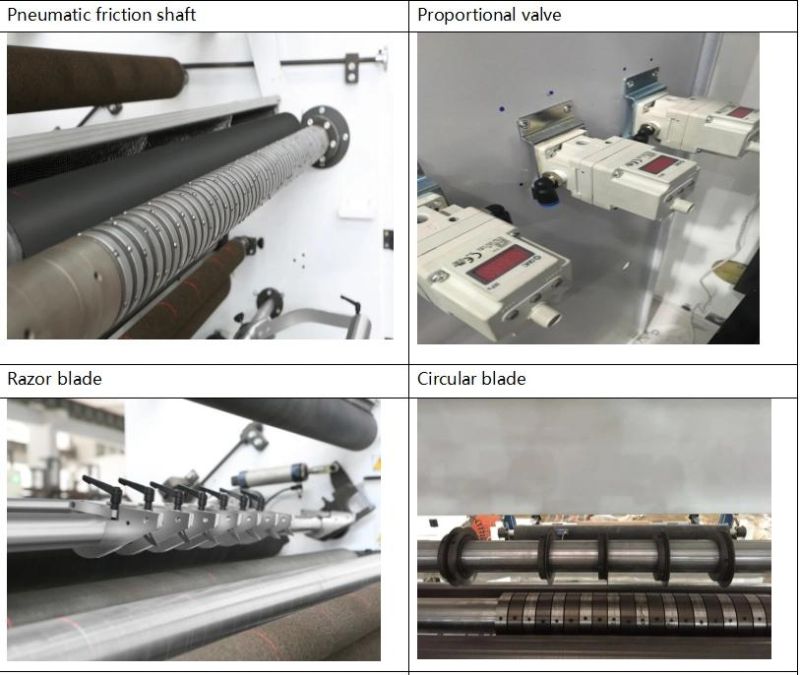

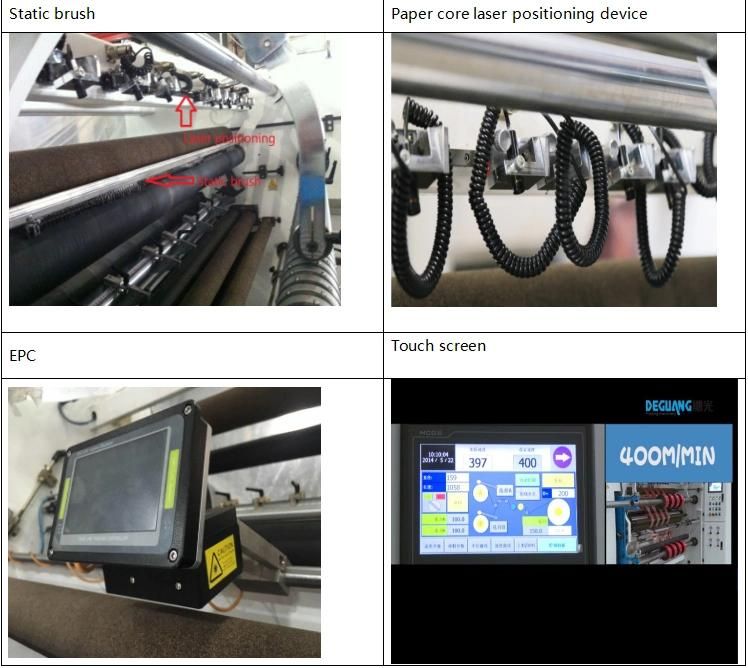

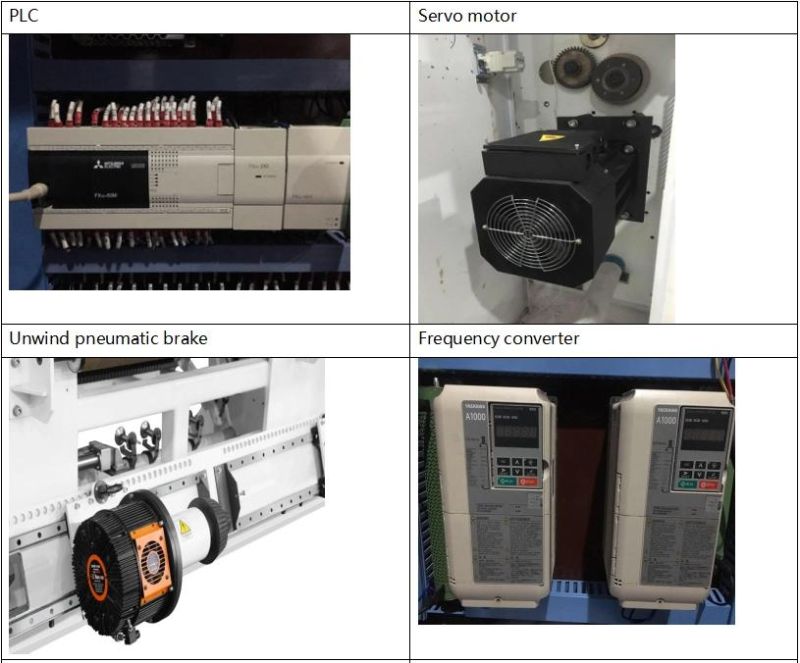

Machine details:
Certification:
Our company:

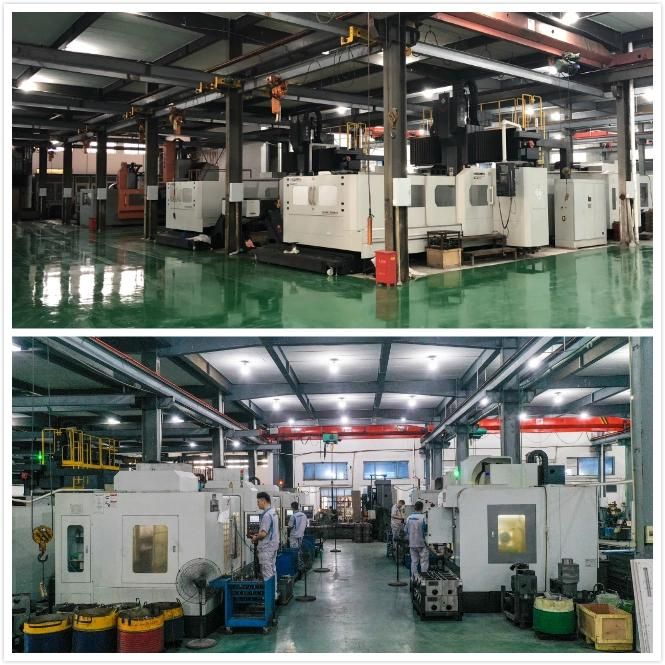

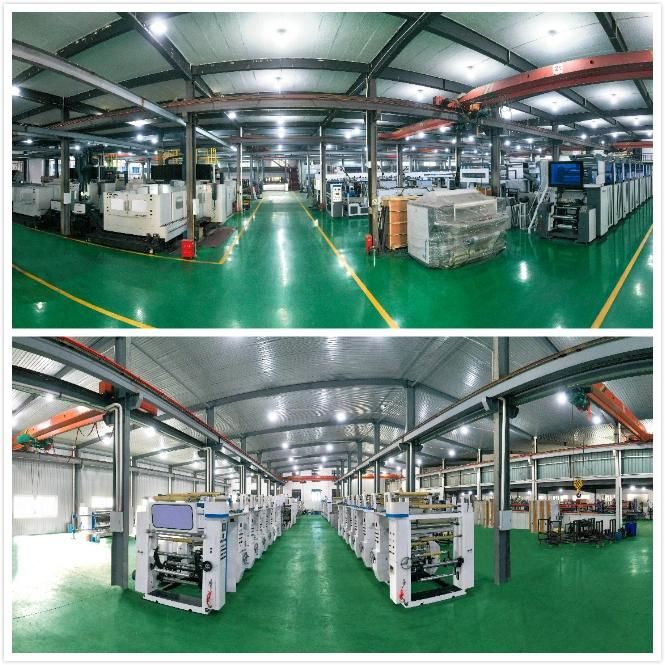

Workshop:

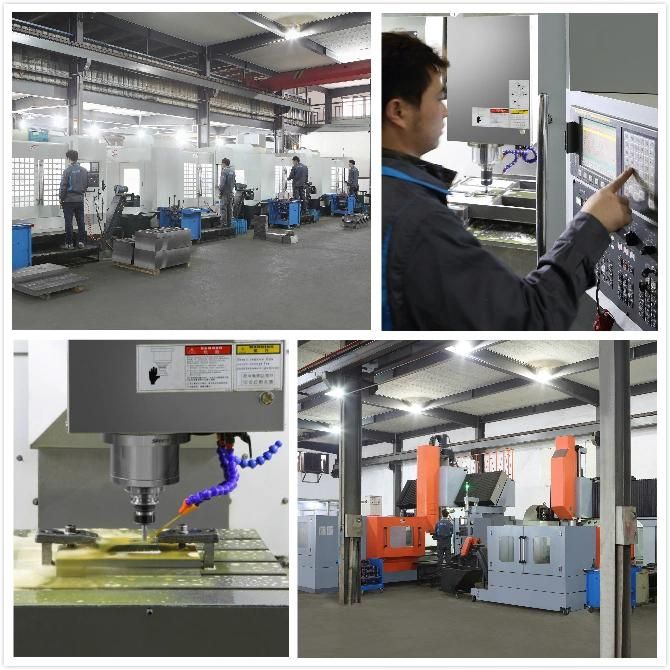

CNC facility:

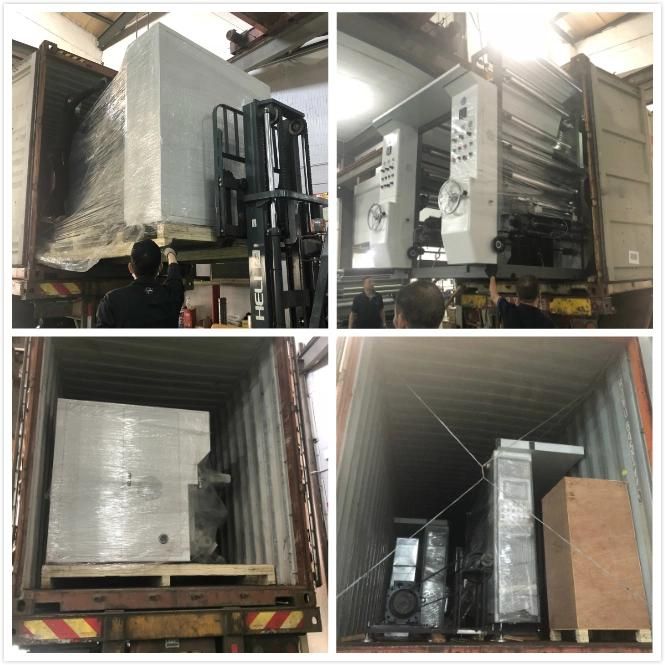

Packing and shipping:
Exhibition:
