In Line Extrusion Plastic Thermoforming Machine (HFTF70T)

Rui'an Hengfeng Machinery Co., Ltd.
  • Warranty：1 Year
  • Certification：CE, ISO, ISO9000
  • Column number：Four Column
  • Molding Method：Extrusion and Thermoforming
  • Automatic Grade：Automatic
  • Condition：New

Base Info

  • Model NO.：Inline HFTF70T
  • Logo Forming：with Logo Forming
  • Shaping Mode：in Molding
  • Raw Material：PP, PS
  • Customized：Customized
  • Application：Plastic Cup, Box, Bowl, Yogurt Cup, Milk Cup, etc
  • Driven Type：Electric, Pneumatic, Mechanical
  • Max Forming Area：680*320mm
  • Machine Weight：10000kg
  • Transport Package：Packing Is Suitable for Ocean Transport
  • Specification：CE Certificate
  • Trademark：HENGFENG
  • Origin：Ruian, China
  • HS Code：8477408000
  • Production Capacity：45cycles,Min

Description

Thermoformer Main Technical Parameter 1- Max. Forming Area680×320mm2- Max. Forming Height 150mm3-Mold Clamping force350Kn4-Sheet Width Max 720mm; Min 550mm5-Sheet Thickness0.35mm-2.5mm6-Heater SpecificationCeramic Heater up and down 130kw 7-Heater Control Omron Temperature module and PLC match with control 8-Forming MethodAir pressure forming & driven by Cam 9-Operation Method Fully automatic with touch screen control10-Material Feeding Servo Motor 4.4kw 11-Max. Sheet Rolling Diameter Φ1200mm12-Air Pressure 0.7-0.85mpa13-Water Consumption 50L/min 14- Air Consumption 3000L/min 15- Max.Speed 35 Cycles/min 16- Power (Three Phase Four Wire) 380V,50Hz,3Phase 17- Main Motor Power 11kw 18- Scrap Rewinding Motor Power 0.55kw19- Machine Weight 13000kg20- Machine Dimension (L)11000×(W)3650×(H)3500mm

In Line Extrusion Plastic Thermoforming Machine (HFTF70T)

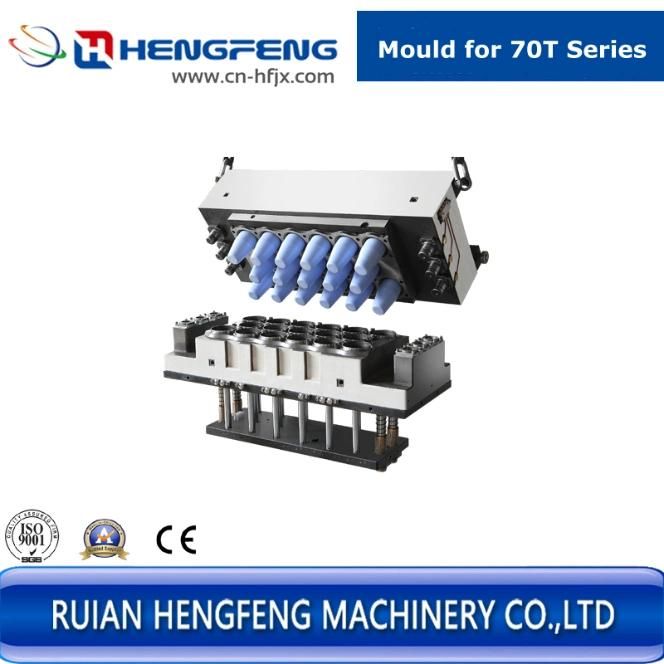

Moulds:In Line Extrusion Plastic Thermoforming Machine (HFTF70T)

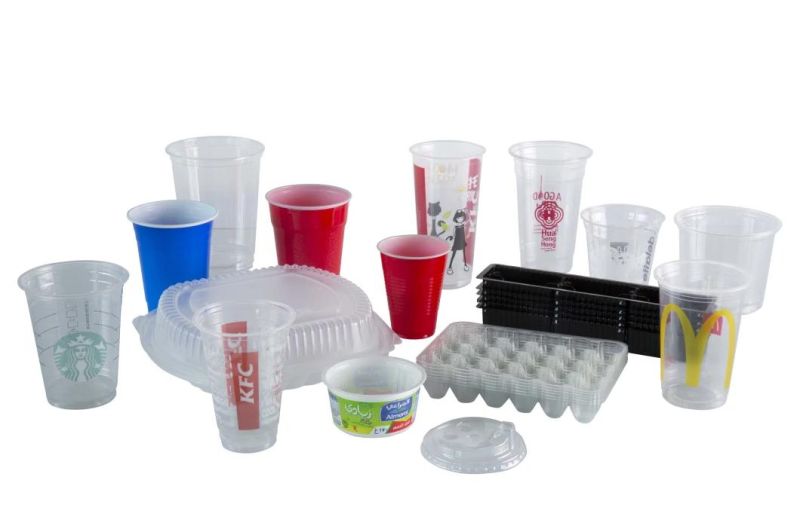

Sample:

In Line Extrusion Plastic Thermoforming Machine (HFTF70T)In Line Extrusion Plastic Thermoforming Machine (HFTF70T)In Line Extrusion Plastic Thermoforming Machine (HFTF70T)

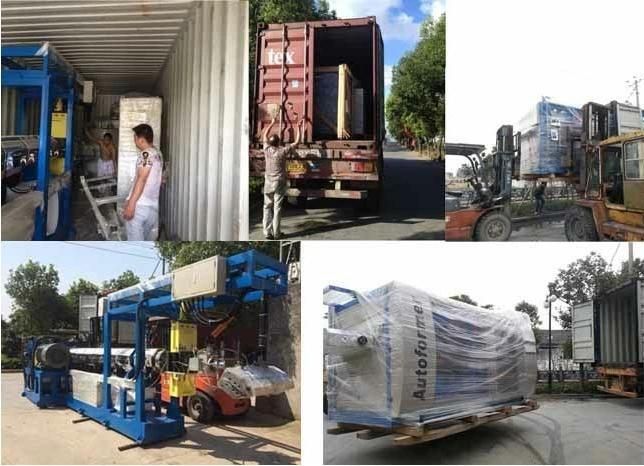

Shipping Packaging:
In Line Extrusion Plastic Thermoforming Machine (HFTF70T)

Company History:

Rui'an hengfeng machinery Co., Ltd is founded in 2008. For more than 10 years, we focus on researching, d

Eveloping, manufacturing and marketing on thermoforming machine, plastic cup production line, BOPS plastic

Thermoforming machine, mutil-layer PP/PS/PET sheet extruder, mould, etc. There are more than 72 countries

And regions cooperating with us, such as USA, south Korea, Turkey, Canada, Russia, Kuwait, Iran, Brazil,

Chile, Bolivia, Saudi Arabia, Peru, etc.

In Line Extrusion Plastic Thermoforming Machine (HFTF70T)
Factory Address:
NO.718,Wei'er Road,Gexiang New District,Nanbin Street,Ruian City,Zhejiang Province,China.
In Line Extrusion Plastic Thermoforming Machine (HFTF70T)

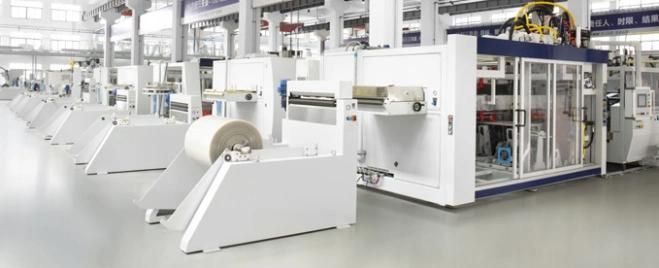

Operation:
In Line Extrusion Plastic Thermoforming Machine (HFTF70T)In Line Extrusion Plastic Thermoforming Machine (HFTF70T)
Contact person:
In Line Extrusion Plastic Thermoforming Machine (HFTF70T)

FAQ:
1. Q: Are you a factory or trading company?
A: We are a factory and giving you the quickest reply in 24 hours.

2. Q: What's your company mainly in?
A: We are mainly produce Plastic Extruder, Vacuum Forming Machine for over 10 years.Other machines have included machines in production line, such .as thermoforming machine and pp and ps extruder .
(we can produce total production line.)

3. Q: How's your strength of your company?
A: Has a group of senior technical personnels , strong technical force, we have the whole running system, including design, development ,production, installation, service. One year quality guarantee, life-time service.

4.Q: If your company has passed some certificates?
A: Yes, we have passed CE, ISO.
