Two Twin Shaft Scrap Tyre Tire Metal Wood Paper Copper Cable Wire Plastic Cutting Crushing ...
Wuxi DGM Environmental Technology Co., Ltd.- Material Processed：Plastics, Rubber, Wood, Biomass, Paper
- Plastic Type：Tire, Rubber, Metal, Copper
- Screw：Double-Screw
- Automation：Automation
- Computerized：Computerized
- Certification：ISO9001:2008, CE, BV
Base Info
- Model NO.：DGD
- Motor：Weg
- Electronic Components：Kloeckner Moeller
- Safety Switch：Schmersal
- PLC Cabinet：Rittal
- Triangle Belt：Optibelt
- Bearings：Heavy Duty Bearings Twb
- Knives：Knives Are Externally Adjustable
- Rotor：Wide Choice of Rotor Variations
- Mechanical Material：Q345
- Knife Materials：D2, SKD11
- Rotor Diameter：330-800mm
- Rotor Speed：9-13 Rpm
- Screen Size：40-100mm
- Transport Package：Stretch Film, Wood Pallet
- Specification：DGD1000-3000
- Trademark：DGM
- Origin：Wuxi, China
- HS Code：84778000
- Production Capacity：2000sets Per Year
Description
ITEMUNIT DGD1000 DGD1500 DGD2000 Cutting Chamber mm 1030*640 1530*940 2030*1500 Cutting Disc Diameter mm 330 500 800 Rotor Speed rpm 11.6-12.9 11.6-12.9 9.1-10.4 Main Motor Power kw 2*18.5/2*22*2*30 2*37/2*45/2*55/2*75 2*75/2*90/2*110 Cutting Discs pcs 20 30 28 Machine Dimentions mm 3500*1900*2000 5000*2300*2500 7000*3200*4000 Dimensions A mm 2000 2500 3600 B mm 2000 2240 4000 C mm 700 920 1500 D mm 3500 4860 7000 E mm 1500 1910 3000 F mm 640 940 1500 G mm 1900 2265 3200 H mm 1030 1530 2030 I mm 640 940 1530
Layout
Features
Options
Applitions

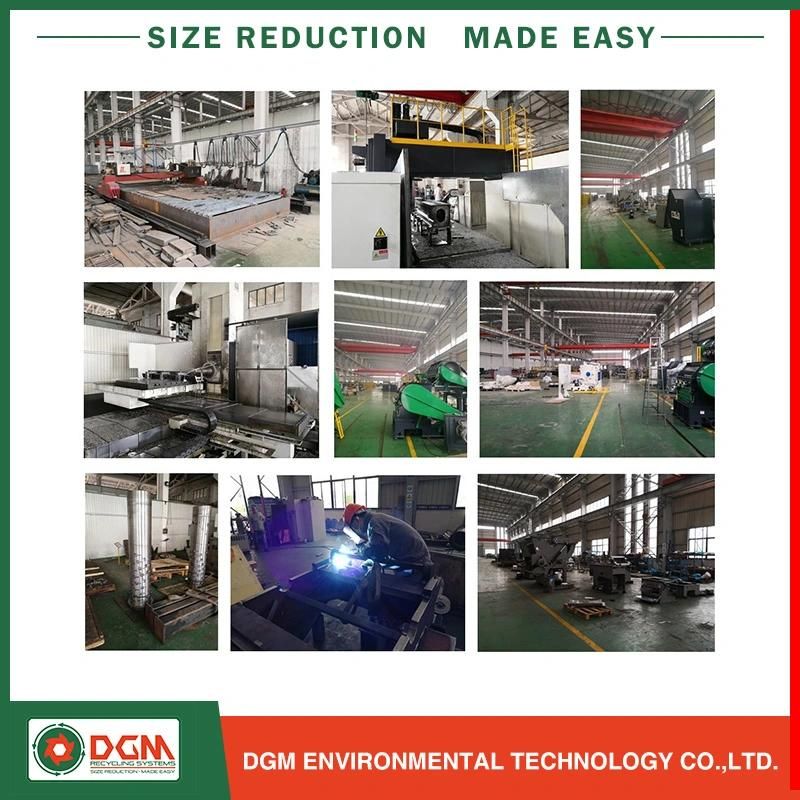

Factory
Since its foundation DGM Recycling Systems have been at the forefront of innovation and technology in the development of cost effective and reliable recycling solutions. As a wholly owned subsidiary of Miracle Automation Engineering Group, a pioneer in automation systems for the automotive and material handling industries, DGM continues to strive for excellence in the field of size reduction and recycling.
Suppliers
Certificates
All of our shredders and granulators have been approved CE certification.
Packaging & Loading
1. Several layers of plastic wrapping film and cardboard to protect plastic recycling machine from dust and moisture.
2. Plastic packing strap belt to fasten wrapping film and machines, also to fix machines in containers.
3. Wooden case is used as the outside package and spare parts when choosing by LCL, air or international express.
4. Excellant logistic team to guarantee the shredder and granulator machines to be safely shipped to customer appointed loaction.
5. If you have any other request for the packaging or loading, we will try our best to meet your demands.
FAQ
Q1: Are you a trading company or a factory ?
DGM is a factory with more than 15 years experience in plastic machinery manufacturing, and 25 years experience in German technology.
Q2: Will you provide pre-sale services?
DGM consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
Q3: Is your after-sales service excellent?
At DGM we have a highly trained team of service personnel to handle all manner of customer service enquiries. Whether it is replacement parts, technical assistance, or just general operation advice we offer our customers genuine 24/7 support and after sale service.
Q4: Where is your factory?
Address: No.1.Fengqi Road, Huishan District , Wuxi City, Jiangsu Province, China
Q5: What is your contact informatoin?
Telephone: +86 510 8357 2002
Mobile+86 18762812155
Q6: Could we visit your factory and test the machine?
We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your raw material.
Layout
Features
- Hexagonal shaft design
- Machined bolt-on cutting discs
- Robust heavy duty machine housing
- Low speed, high torque geared drive Bolt in drive shafts
- Multiple blade designs
- Auto reverse function
- Shock absorbing gearbox
- Case hardened steel blades
- 2 piece split bearing housing
- Advanced adjustable sealing system
- Amp meter control
Options
- Hydraulic screen cradle
- Gearbox with shrink disc
- Rotor cooling
- Pipe spacer
- Touch screen PLC
- Hopper mounted viewing mirror
- Increased motor drive
- Hydraulic drive
- Bespoke colour scheme
- Gearbox with shrink disc
- Turbo hydraulics
- Housing wear plates
- Sound absorbing hopper
Applitions
- PLASTICS
- RUBBER
- WOOD
- BIOMASS
- PAPER
- ALTERNATIVE FUELS (RDF/SRF)
- DOMESTIC & COMMERCIAL WASTE
Factory
Since its foundation DGM Recycling Systems have been at the forefront of innovation and technology in the development of cost effective and reliable recycling solutions. As a wholly owned subsidiary of Miracle Automation Engineering Group, a pioneer in automation systems for the automotive and material handling industries, DGM continues to strive for excellence in the field of size reduction and recycling.
Suppliers
Certificates
All of our shredders and granulators have been approved CE certification.
Packaging & Loading
1. Several layers of plastic wrapping film and cardboard to protect plastic recycling machine from dust and moisture.
2. Plastic packing strap belt to fasten wrapping film and machines, also to fix machines in containers.
3. Wooden case is used as the outside package and spare parts when choosing by LCL, air or international express.
4. Excellant logistic team to guarantee the shredder and granulator machines to be safely shipped to customer appointed loaction.
5. If you have any other request for the packaging or loading, we will try our best to meet your demands.
FAQ
Q1: Are you a trading company or a factory ?
DGM is a factory with more than 15 years experience in plastic machinery manufacturing, and 25 years experience in German technology.
Q2: Will you provide pre-sale services?
DGM consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
Q3: Is your after-sales service excellent?
At DGM we have a highly trained team of service personnel to handle all manner of customer service enquiries. Whether it is replacement parts, technical assistance, or just general operation advice we offer our customers genuine 24/7 support and after sale service.
We have an international network which ensures wherever you are in the world you receive localized high level support.
Our technical team has decades of experience in the field of size reduction, washing line and tire recycling and we are on hand to offer assistance in installation, commissioning, staff training and general technical assistance.
Q4: Where is your factory?
Address: No.1.Fengqi Road, Huishan District , Wuxi City, Jiangsu Province, China
Q5: What is your contact informatoin?
Telephone: +86 510 8357 2002
Mobile+86 18762812155
Q6: Could we visit your factory and test the machine?
We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your raw material.
